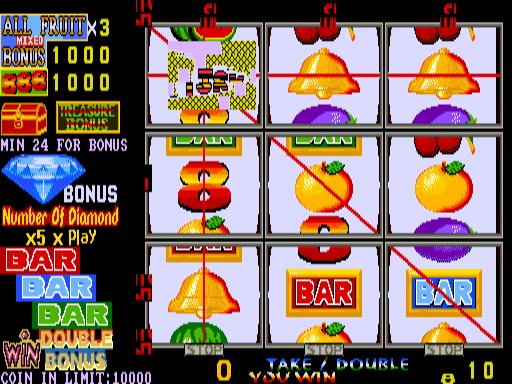

Fruit Bonus 2002 (Ming-Yang Electronic / TSK, vFB02-01A) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
nfma	igs/goldstar.cpp		no	no	no	yes	Fruit Bonus 2002 (Ming-Yang Electronic / TSK, vFB02-01A)	2003	Ming-Yang Electronic / TSK	nfm	nfm

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	224	60.000000	7864320	512	0	512	256	16	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
9_27c512.u53	65536	127b2a17	973815f99d744e055f8bdff7753c3e70a892250c	maincpu	0	good	no
4_27c128.u15	16384	99ac5ddf	65b6abb98f3156f4c0c55478d09c612eed5ae555	reelgfx	0	good	no	fruit4
3_27c128.u10	16384	e8fbe05e	a9439a91953d5caa211587eb837f6bfe52be0a00	reelgfx	4000	good	no
2_27c128.u14	16384	6540a218	78f5b78b9c7198c5cf6b2d1a7e02e9ac7b422b10	reelgfx	8000	good	no
1_27c128.u9	16384	af41b0c0	ce463035b7f5509a92ae727020c3ecc511ed1d30	reelgfx	c000	good	no
7_27c256.u16	32768	3ade6709	9cdf2814e50c5433c582fc40265c5df2a16e99e7	tilegfx	0	good	no	fruit7
6_27c256.u11	32768	39d5b89a	4cf52fa557ffc792d3e13f7dbb5d45fd617bac85	tilegfx	8000	good	no	fruit6
5_27c256.u4	32768	a7a8f08d	76c93194133ba85c0dde1f364260e16d5b647134	tilegfx	10000	good	no	fruit5
am29f040b.plcc32-a.bin	524288	04bb0bcf	b72fc5c351cb05d86938d49d310fe623c7de70d5	user1	0	good	no	am29f040b.plcc32-a.bin
am29f040b.plcc32-b.bin	524288	f95838f9	99a999945e489c56ec04a87b5037d7e8d138f686	user1	80000	good	no	am29f040b.plcc32-b.bin
8_f29c51002t.u53	262144	ff9d5b6d	a84fe241ff9958740dcdbd4650bd16a0aa6e01ca	oki	0	good	no	8_f29c51002t.u53
10bp_27c257.u62	32768	13925ff5	236415a244ef6092834f8080cf0d2e04bbfa2650	colours	0	good	no	fruiprg2

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3000000
audio	mono	Speaker
audio	aysnd	AY-3-8910A PSG	1500000
audio	oki	OKI MSM6295 ADPCM	1056000

device_ref

name
z80
i8255
i8255
screen
gfxdecode
palette
nvram
speaker
ay8910
okim6295

sound

channels
1

input

players	coins	service	tilt
1	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
gambling		8		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:DSW3
:DSW4
:DSW5
:IN0
:IN1
:IN2

dipswitch

Game Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Rate	DSW1	7

location

name	number	inverted
DSW1	1	no
DSW1	2	no
DSW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Level 1 - 90%	7	no
Level 2 - 85%	6	no
Level 3 - 80%	5	no
Level 4 - 75%	4	no
Level 5 - 70%	3	yes
Level 6 - 65%	2	no
Level 7 - 60%	1	no
Level 8 - 55%	0	no

Maximum Play

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Maximum Play	DSW1	56

location

name	number	inverted
DSW1	4	no
DSW1	5	no
DSW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	0	no
16	8	no
24	16	no
32	24	no
40	32	no
48	40	no
64	48	no
80	56	yes

Minimum Play for Bonus

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Minimum Play for Bonus	DSW1	192

location

name	number	inverted
DSW1	7	no
DSW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	0	no
16	64	no
24	128	yes
32	192	no

Double-Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double-Up Game	DSW2	1

location

name	number	inverted
DSW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	1	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW2	2

location

name	number	inverted
DSW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Coin In

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin In	DSW2	28

location

name	number	inverted
DSW2	3	no
DSW2	4	no
DSW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	0	no
1 Coin/2 Credits	4	no
1 Coin/4 Credits	8	no
1 Coin/5 Credits	12	no
1 Coin/10 Credits	16	yes
1 Coin/20 Credits	20	no
1 Coin/25 Credits	24	no
1 Coin/100 Credits	28	no

Note In Value

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Note In Value	DSW2	96

location

name	number	inverted
DSW2	6	no
DSW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
100	0	yes
200	32	no
500	64	no
1000	96	no

Spin Length

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Spin Length	DSW2	128

location

name	number	inverted
DSW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Long	0	yes
Short	128	no

Minimum Play to Start

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Minimum Play to Start	DSW3	3

location

name	number	inverted
DSW3	1	no
DSW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	0	no
8	1	no
16	2	yes
24	3	no

Max Coin In & Note In Points

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Max Coin In & Note In Points	DSW3	12

location

name	number	inverted
DSW3	3	no
DSW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1000	0	no
5000	4	no
10000	8	yes
90000	12	no

Clear / Ticket Unit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Clear / Ticket Unit	DSW3	240

location

name	number	inverted
DSW3	5	no
DSW3	6	no
DSW3	7	no
DSW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	0	yes
4	16	no
5	32	no
10	48	no
20	64	no
25	80	no
30	96	no
40	112	no
50	128	no
60	144	no
80	160	no
100	176	no
200	192	no
300	208	no
400	224	no
500	240	no

Check Account

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Check Account	DSW4	1

location

name	number	inverted
DSW4	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	yes
Yes	0	no

Show Coin In Limit On Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Coin In Limit On Screen	DSW4	2

location

name	number	inverted
DSW4	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	yes
Off	2	no

Initial Bonus Settings After Reset

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Initial Bonus Settings After Reset	DSW4	4

location

name	number	inverted
DSW4	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Type 1	0	yes
Type 2	4	no

Bonus Accumulation

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Accumulation	DSW4	8

location

name	number	inverted
DSW4	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	8	yes

Auto Ticket Dispense

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Auto Ticket Dispense	DSW4	16

location

name	number	inverted
DSW4	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	16	yes

Ticket Dispense Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Ticket Dispense Mode	DSW4	96

location

name	number	inverted
DSW4	6	no
DSW4	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Continuous	96	no
Max 1 Ticket Per Game	64	no
Max 5 Tickets Per Game	32	no
Max 10 Tickets Per Game	0	yes

Show In Confirm Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show In Confirm Screen	DSW4	128

location

name	number	inverted
DSW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Level of Difficulty	0	yes
Percentage	128	no
