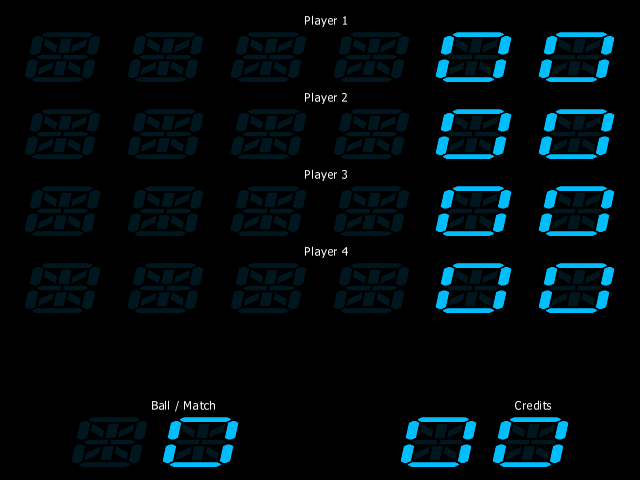

Orbit 1 - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
orbit1	pinball/hankin.cpp	genpin	no	no	yes	yes	Orbit 1	1978	Hankin

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
o1_ic2.mpu	2048	b47bc2c7	42c985d83a9454fcd08b87e572e5563ebea0d052	maincpu	0	good	no
o1_ic3.mpu	2048	fe7b61be	c086b0433bb9ab3f2139c705d4372beb1656b27f	maincpu	800	good	no
o1_ic14.snd	2048	323bfbd5	2e89aa4fcd33f9bfeea5c310ffb0a5be45fb70a9	audiocpu	0	good	no
o1_ic3.snd	512	dfc57606	638853c8e46bf461f2ecde02b8b2aa68c2d414b8	prom	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6802	3276800
cpu	audiocpu	Motorola MC6802	3276800
audio	mechvol	Speaker
audio	samples	Samples
audio	speaker	Speaker
audio	dac	4-Bit R-2R DAC

device_ref

name
m6802
m6802
nvram
speaker
samples
speaker
dac_4bit_r2r
pia6821
pia6821
pia6821
clock
timer
ipt_merge_any_hi
ipt_merge_any_hi

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

input

players	coins	service	tilt
1	1	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		39		no

port, analog

port_tag	analog_masks
:DSW0
:DSW1
:DSW2
:TEST
:X0
:X1
:X2
:X3
:X4

dipswitch

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW0	7

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	0	yes
2 Coins/1 Credit	1	no
3 Coins/1 Credit	2	no
4 Coins/1 Credit	3	no
2 Coins/3 Credits	4	no
3 Coins/2 Credits	5	no
5 coins 4 credits	6	no
5 coins 2 credits	7	no

Award

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Award	DSW0	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Extra Ball	0	no
Free Game	8	yes

Match

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Match	DSW0	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	16	yes

Credits for exceeding high score

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credits for exceeding high score	DSW0	96

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0	0	yes
1	32	no
2	64	no
3	96	no

Game Over Tune

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Over Tune	DSW0	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes

Coin Alarm

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Alarm	DSW1	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

S10 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S10 (game specific)	DSW1	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Background Sound

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Background Sound	DSW1	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	4	yes

S12 (game Specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S12 (game Specific)	DSW1	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

S13 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S13 (game specific)	DSW1	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

S14 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S14 (game specific)	DSW1	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

S15 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S15 (game specific)	DSW1	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Balls

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Balls	DSW1	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3	0	yes
5	128	no

Maximum Credits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Maximum Credits	DSW2	3

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5	0	no
10	1	no
15	2	yes
20	3	no

S19

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S19	DSW2	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

S20

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S20	DSW2	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Remember Bonus Multiplier

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Bonus Multiplier	DSW2	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

Free Game Sound

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Free Game Sound	DSW2	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Special Tune	0	no
Knocker	32	yes

Coin Counter reset

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Counter reset	DSW2	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Time out in test mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Time out in test mode	DSW2	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no
