mame (0289) • machine outrun • Out Run (sitdown/upright, Rev B)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
outrun	sega/segaorun.cpp		no	no	no	yes	Out Run (sitdown/upright, Rev B)	1986	Sega

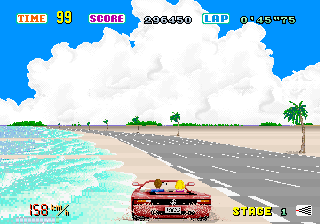

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
outrun	15065	29/12/2025 11:31:37	320	224	96	96	0	Format24bppRgb	305:MAME 0.265.0 (Apr 25 2024)	caeb77ba6dda5316b426f457b9e4cc4a74acb807

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.054389	6293700	400	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
epr-10187.88	32768	a10abaa9	01c8a819587a66d2ee4d255656e36fa0904377b0	soundcpu	0	good	no
epr-10327a.76	65536	e28a5baf	f715bde96c73ed47035acf5a41630fdeb41bb2f9	subcpu	0	good	no
epr-10328a.75	65536	d5ec5e5d	a4e3cfca4d803e72bc4fcf91ab00e21bf3f8959f	subcpu	20000	good	no
epr-10329a.58	65536	da131c81	57d5219bd0e2fd886217e37e8773fd76be9b40eb	subcpu	1	good	no
epr-10330a.57	65536	ba9ec82a	2136c9572e26b7ae6de402c0cd53174407cc6018	subcpu	20001	good	no
epr-10380b.133	65536	1f6cadad	31e870f307f44eb4f293b607123b623beee2bc3c	maincpu	0	good	no
epr-10381b.132	65536	be8c412b	bf3ff05bbf81bdd44567f3b9bb4919ed4a499624	maincpu	20000	good	no
epr-10382b.118	65536	c4c3fa1a	69236cf9f27691dee290c79db1fc9b5e73ea77d7	maincpu	1	good	no
epr-10383b.117	65536	10a2014a	1970895145ad8b5735f66ed8c837d9d453ce9b23	maincpu	20001	good	no
mpr-10371.9	131072	7cc86208	21320f945f7c8e990c97c9b1232a0f4b6bd00f8f	sprites	0	good	no
mpr-10372.13	131072	b557078c	a3746a2da077a8df4932348f650a061f413e8430	sprites	80000	good	no
mpr-10373.10	131072	b0d26ac9	3a9ce8547cd43b7b04abddf9a9ab5634e0bbfaba	sprites	1	good	no
mpr-10374.14	131072	8051e517	9c8509fbed170b4ac74c169da573393e54774f49	sprites	80001	good	no
mpr-10375.11	131072	59b60bd7	e5d8c67e020608edd24ba87b7687b2ac2483ee7f	sprites	2	good	no
mpr-10376.15	131072	f3b8f318	a5f2532613f33a64441e0f75443c10ba78dccc6e	sprites	80002	good	no
mpr-10377.12	131072	17a1b04a	9f7210cb4153ac9029a785dcd4b45f4513a4b008	sprites	3	good	no
mpr-10378.16	131072	a1062984	4399030a155caf71f2dec7f75c4b65531ab53576	sprites	80003	good	no
opr-10185.11	32768	22794426	a554d4b68e71861a0d0da4d031b3b811b246f082	segaic16road	8000	good	no
opr-10186.47	32768	22794426	a554d4b68e71861a0d0da4d031b3b811b246f082	segaic16road	0	good	no
opr-10188.71	32768	bad30ad9	f70dd3a6362c314adef313b064102f7a250401c8	pcm	50000	good	no
opr-10189.70	32768	01366b54	f467a6b807694d5832a985f5381c170d24aaee4e	pcm	40000	good	no
opr-10190.69	32768	7cab70e2	a3c581d2b438630d0d4c39481dcfd85681c9f889	pcm	30000	good	no
opr-10191.68	32768	20a284ab	7c9027416d4122791ba53782fe2230cf02b7d506	pcm	20000	good	no
opr-10192.67	32768	770f1270	686bdf44d45c1d6002622f6658f037735382f3e0	pcm	10000	good	no
opr-10193.66	32768	bcd10dde	417ce1d7242884640c5b14f4db8ee57cde7d085d	pcm	0	good	no
opr-10230.104	32768	686f5e50	03697b892f911177968aa40de6c5f464eb0258e7	gfx1	28000	good	no
opr-10231.103	32768	8908bcbf	8e1237b640a6f26bdcbfd5e201dadb2687c4febb	gfx1	18000	good	no
opr-10232.102	32768	776ba1eb	e3477961d19e694c97643066534a1f720e0c4327	gfx1	8000	good	no
opr-10266.101	32768	9f6f1a74	09164e858ebeedcff4d389524ddf89e7c216dcae	gfx1	20000	good	no
opr-10267.100	32768	a85bb823	a7e0143dee5a47e679fd5155e58e717813912692	gfx1	10000	good	no
opr-10268.99	32768	95344b04	b3480714b11fc49b449660431f85d4ba92f799ba	gfx1	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	subcpu	Motorola MC68000	10000000
cpu	soundcpu	Zilog Z80	4000000
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	4000000
audio	pcm	Sega 315-5218 PCM	4000000

device_ref

tag	name
:maincpu	m68000
:subcpu	m68000
:soundcpu	z80
:watchdog	watchdog
:i8255	i8255
:adc	adc0804
:mapper	sega_315_5195
:gfxdecode	gfxdecode
:palette	palette
:screen	screen
:segaic16vid	segaic16_video
:segaic16road	segaic16_road
:speaker	speaker
:ymsnd	ym2151
:pcm	sega_315_5218
:bankmotor	timer
:sprites	sega_outrun_sprite
:nvram	nvram

sound

channels
1

input

players	coins	service	tilt
1	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
paddle		1		no	32	224	100	4
pedal				no	0	255	100	40

port, analog

port_tag	analog_masks
:ADC.0	255
:ADC.1	255
:ADC.2	255
:ADC.3
:COINAGE
:DSW
:SERVICE
:UNKNOWN

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	COINAGE	15

location

name	number	inverted
SWA	1	no
SWA	2	no
SWA	3	no
SWA	4	no

value

name	value	default
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	COINAGE	240

location

name	number	inverted
SWA	5	no
SWA	6	no
SWA	7	no
SWA	8	no

value

name	value	default
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW	3

location

name	number	inverted
SWB	1	no
SWB	2	no

value

name	value	default
Moving	3	no
Up Cockpit	2	no
Mini Up	1	yes
Unused	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	4

location

name	number	inverted
SWB	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	no
On	0	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	8

location

name	number	inverted
SWB	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Time Adj.

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Time Adj.	DSW	48

location

name	number	inverted
SWB	5	no
SWB	6	no

value

name	value	default
Easy	32	no
Normal	48	yes
Hard	16	no
Hardest	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	192

location

name	number	inverted
SWB	7	no
SWB	8	no

value

name	value	default
Easy	128	no
Normal	192	yes
Hard	64	no
Hardest	0	no

clones

name	description
outrunb	Out Run (bootleg)
outrundxa	Out Run (deluxe sitdown earlier version)
outrundxeha	Out Run (deluxe sitdown) (Enhanced Edition v1.0.3)
outrundxeh	Out Run (deluxe sitdown) (Enhanced Edition v2.0.3)
outrundx	Out Run (deluxe sitdown)
outrundxj	Out Run (Japan, deluxe sitdown) (FD1089A 317-0019)
outrunra	Out Run (sitdown/upright, Rev A)
outruneha	Out Run (sitdown/upright, Rev B) (Enhanced Edition v1.1.0)
outruneh	Out Run (sitdown/upright, Rev B) (Enhanced Edition v2.0.3)
