mame (0289) • machine overdriv • Over Drive (set 1)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
overdriv	konami/overdriv.cpp		no	no	no	yes	Over Drive (set 1)	1990	Konami

snap

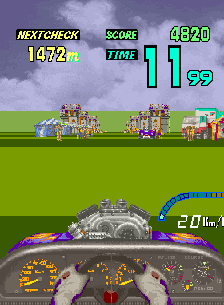

Over Drive (set 1) png snap

Over Drive (set 1) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
overdriv	17551	29/12/2025 11:31:37	224	305	96	96	0	Format24bppRgb	305:MAME 0.158 (Jan 28 2015)	3ab11981666cc0d14a8a0f64791ec7df84054b13

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	90	305	224	59.185606	6000000	384	0	305	264	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
789_e01.e4	65536	1085f069	27228cedb357ff2e130a4bd6d8aa01cf537e034f	audiocpu	0	good	no
789_e08.k10	131072	24427195	48f4f81729acc0e497b40fddbde11242c5c4c573	sub	1	good	no
789_e09.l10	131072	46fb7e88	f706a76aff9bec64abe6da325cba0715d6e6ed0a	sub	0	good	no
789_n04.b17	131072	aefe87a6	1bdf5a1f4c5e2b84d02b2981b3be91ed2406a1f8	maincpu	1	good	no
789_n05.d17	131072	f7885713	8e84929dcc6ab889c3e11c450d22c56b183b0198	maincpu	0	good	no
789e02.f1	1048576	bdd3b5c6	412332d64052c0a3714f4002c944b0e7d32980a4	k053260	100000	good	no
789e03.j1	1048576	51ebfebe	17f0c23189258e801f48d5833fe934e7a48d071b	k053260	0	good	no
789e06.a21	131072	14a085e6	86dad6f223e13ff8af7075c3d99bb0a83784c384	k051316_1	0	good	no
789e07.c23	131072	8a6ceab9	1a52b7361f71a6126cd648a76af00223d5b25c7a	k051316_2	0	good	no
789e12.r1	1048576	14a10fb2	03fb9c15514c5ecc2d9ae4a53961c4bbb49cec73	k053246	0	good	no
789e13.r4	1048576	6314a628	f8a8918998c266109348c77427a7696b503daeb3	k053246	2	good	no
789e14.r10	1048576	b5eca14b	a1c5f5e9cd8bbcfc875e2acb33be024724da63aa	k053246	4	good	no
789e15.r15	1048576	5d93e0c3	d5cb7666c0c28fd465c860c7f9dbb18a7f739a93	k053246	6	good	no
789e16.p12	262144	9348dee1	367193373e28962b5b0e54cc15d68ed88ab83f12	k053250_2	40000	good	no
789e17.p17	262144	04c07248	873445002cbf90c9fc5a35bf4a8f6c43193ee342	k053250_2	0	good	no
789e18.p22	262144	985a4a75	b726166c295be6fbec38a9d11098cc4a4a5de456	k053250_1	0	good	no
789e19.r22	262144	15c54ea2	5b10bd28e48e51613359820ba8c75d4a91c2d322	k053250_1	40000	good	no
789e20.s22	262144	ea204acd	52b8c30234eaefcba1074496028a4ac2bca48e95	k053250_1	80000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	12000000
cpu	sub	Motorola MC68000	12000000
cpu	audiocpu	Motorola MC6809E	3579545
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	3579545
audio	k053260_1	Konami 053260 KDSC	3579545
audio	k053260_2	Konami 053260 KDSC	3579545

device_ref

tag	name
:maincpu	m68000
:scantimer	timer
:sub	m68000
:audiocpu	mc6809e
:eeprom	er5911_16
:adc	adc0804
:screen	screen
:palette	palette
:k053246	k053247
:k051316_1	k051316
:k051316_2	k051316
:k053251	k053251
:k053250_1	k053250
:k053250_2	k053250
:k053252	k053252
:speaker	speaker
:ymsnd	ym2151
:k053260_1	k053260
:k053260_2	k053260

sound

channels
1

feature

type	status	overall
graphics	imperfect

input

players	coins	service	tilt
1	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
paddle		3		no	0	255	100	50

port, analog

port_tag	analog_masks
:EEPROMOUT
:INPUTS
:PADDLE	255
:SYSTEM

clones

name	description
overdriva	Over Drive (set 2)
overdrivb	Over Drive (set 3)
