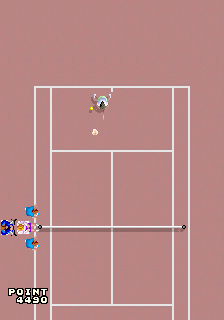

Passing Shot (Japan, 4 Players, System 16A) (FD1094 317-0071) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
passsht16a	sega/segas16a.cpp		no	no	no	yes	Passing Shot (Japan, 4 Players, System 16A) (FD1094 317-0071)	1988	Sega	passsht	passsht

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	270	320	224	60.000000	5376240	342	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
epr-11833.43	65536	5eb1405c	0a68d3fcc074475d38f999c93082d4a9dff0f19a	maincpu	0	good	no
epr-11832.26	65536	718a3fe4	bd6844c53ce3b64b113795360175df92d095b467	maincpu	1	good	no
317-0071.key	8192	c69949ec	1c63f42404ee1d8333e734e892b1c4cac0cb440e	maincpu:key	0	good	no
epr-11834.95	65536	df4e18ab	ac9b424eded18f128e6cc743bbddf9afd869c8c4	gfx1	0	good	no
epr-11835.94	65536	6a07acc0	218071612ee6fa89b16a47a77325a962ba38926d	gfx1	10000	good	no
epr-11836.93	65536	93c74928	43ea7855d5d4dcc4921b3a7b814acc75c5cfde15	gfx1	20000	good	no
epr-11842.10	65536	b6e94727	0838e034f1f10d9cd1312c8c94b5c57387c0c271	sprites	1	good	no	opr-11862.b1
epr-11845.11	65536	17e8d5d5	ac1074b0a705be13c6e3391441e6cfec1d2b3f8a	sprites	0	good	no	opr-11865.b5
epr-11843.17	65536	3e670098	2cfc83f4294be30cd868738886ac546bd8489962	sprites	10001	good	no	opr-11863.b2
epr-11846.18	65536	50eb71cc	463b4917ca19c7f4ad2c2845caa104d5e4a2dda3	sprites	10000	good	no	opr-11866.b6
epr-11844.23	65536	05733ca8	1dbc7c99450ebe6a9fd8c0244fd3cb38b74984ef	sprites	20001	good	no	opr-11864.b3
epr-11847.24	65536	81e49697	a70fa409e3555ad6c8f28930a7026fdf2deb8c65	sprites	20000	good	no	opr-11867.b7
epr-11837.12	32768	74d11552	5a0f0c3fb858ed2bad8002fce4e29d730f102bcd	soundcpu	0	good	no
7751.bin	1024	6a9534fc	67ad94674db5c2aab75785668f610f6f4eccd158	upd7751	0	good	no
epr-11838.1	32768	a465cd69	25da3809824fb3df1f93bbfa88355a7c50e44211	upd7751data	0	good	no
epr-11839.2	32768	99de6197	f7de6a34fa185754c12276a94b1513234d352f3f	upd7751data	8000	good	no
epr-11840.4	32768	9854e8b3	bc9d8a17ff96cf03f9a955223c11d9f1fb0309c5	upd7751data	10000	good	no
epr-11841.5	32768	1e89877e	bbceb4f3cafae40d1e256f4336d3ee0bcdf8d077	upd7751data	18000	good	no

chip

type	tag	name	clock
cpu	maincpu	Hitachi FD1094 Encrypted CPU	10000000
cpu	soundcpu	Zilog Z80	4000000
cpu	upd7751	NEC uPD7751	6000000
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	4000000
audio	dac	8-Bit R-2R DAC

device_ref

name
fd1094
z80
upd7751
i8243
nvram
watchdog
i8255
screen
sega_sys16a_sprite
segaic16_video
gfxdecode
palette
speaker
generic_latch_8
ym2151
dac_8bit_r2r

sound

channels
1

input

players	coins	service	tilt
4	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	4	8	no
joy	2	4	8	no
joy	3	4	8	no
joy	4	4	8	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:P1
:P2
:P3
:P4
:SERVICE
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	no
On	0	yes

Initial Point

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Initial Point	DSW2	14

location

name	number	inverted
SW2	2	no
SW2	3	no
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2000	6	no
3000	10	no
4000	12	no
5000	14	yes
6000	8	no
7000	4	no
8000	2	no
9000	0	no

Point Table

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Point Table	DSW2	48

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	32	no
Normal	48	yes
Hard	16	no
Hardest	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	192

location

name	number	inverted
SW2	7	no
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	128	no
Normal	192	yes
Hard	64	no
Hardest	0	no
