Pin-Bot (P-4) - mame (0288) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
pb_p4	pinball/s11a.cpp	genpin	no	no	yes	yes	Pin-Bot (P-4)	1986	Williams	pb_l5	pb_l5

snap

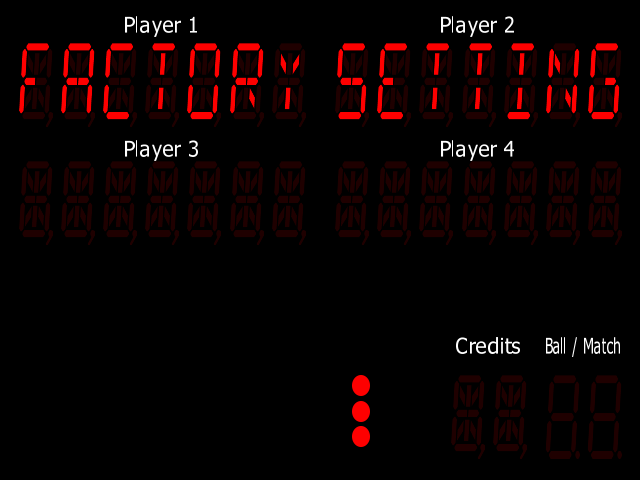

Pin-Bot (P-4) png snap

Pin-Bot (P-4) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
pb_p4	18649	20/03/2026 16:26:55	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	1a55515c56a8109017f49631f767d005db4fd444

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
u26-l2.rom	16384	e3b94ca4	1db2acb025941cc165cc7ec70a160e07ab1eeb2e	maincpu	4000	good	no
u27_p4.bin	32768	fbe2c466	ac6c8f953b00e0ec7626cd1ccf4e16851ab905d0	maincpu	8000	good	no
pbot_u21.l1	32768	3eab88d9	667e3b675e2ae8fec6a6faddb9b0dd5531d64f8f	audiocpu	8000	good	no	pbot_u21.l1
pbot_u22.l1	32768	a2d2c9cb	46437dc54538f1626caf41a2818ddcf8000c44e4	audiocpu	0	good	no	pbot_u22.l1
pbot_u4.l1	32768	de5926bd	3d111e27c5f0c8c0afc5fe5cc45bf77c12b69228	bg:cpu	0	good	no	pbot_u4.l1
pbot_u19.l1	32768	40eb4e9f	07b0557b35599a2dd5aa66a306fbbe8f50eed998	bg:cpu	20000	good	no	pbot_u19.l1

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6808	4000000
cpu	audiocpu	Motorola MC6802	4000000
cpu	bg:cpu	Motorola MC6809E	2000000
audio	mechvol	Speaker
audio	samples	Samples
audio	dac	MC1408 DAC
audio	cvsd_filter2	Biquad Filter
audio	cvsd_filter	Biquad Filter
audio	hc55516	HC-55516
audio	bg	Williams System 11 (Older) Background Audio Board
audio	bg:dac	MC1408 DAC
audio	bg:ym2151	YM2151 OPM	3579545
audio	bg:cvsd_filter2	Biquad Filter
audio	bg:cvsd_filter	Biquad Filter
audio	bg:hc55516	HC-55516
audio	speaker	Speaker

device_ref

tag	name
:maincpu	m6808
:mainirq	ipt_merge_any_hi
:piairq	ipt_merge_any_hi
:mechvol	speaker
:samples	samples
:pia21	pia6821
:pia24	pia6821
:pia28	pia6821
:pia2c	pia6821
:pia30	pia6821
:pia34	pia6821
:nvram	nvram
:audiocpu	m6802
:audioirq	ipt_merge_any_hi
:dac	mc1408
:cvsd_filter2	filter_biquad
:cvsd_filter	filter_biquad
:hc55516	hc55516
:pias	pia6821
:bg	s11_obg
:bg:cpu	mc6809e
:bg:dac	mc1408
:bg:pia40	pia6821
:bg:ym2151	ym2151
:bg:cvsd_filter2	filter_biquad
:bg:cvsd_filter	filter_biquad
:bg:hc55516	hc55516
:speaker	speaker

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		64		no

port, analog

port_tag	analog_masks
:DIAGS
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7

configuration

Language

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Language	DIAGS	16

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
German	0	no
English	16	yes
