mame (0289) • machine pc8401bd • PC-8401BD

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
pc8401bd	nec/pc8401a.cpp		no	no	no	yes	PC-8401BD	1984	NEC

snap

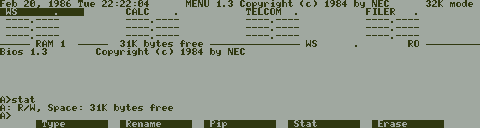

PC-8401BD png snap

PC-8401BD jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
pc8401bd	3031	29/12/2025 11:31:37	480	128	96	96	0	Format24bppRgb	305:MAME 0.262.0 (Jan 31 2024)	b9071c15227d06b79e1d5bc19f3f15272932279a

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	lcd	0	480	128	44.000000	2745600	480	0	480	130	0	128	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
d23c1000c.ic24	131072	524c2313	975874e22927dd8eaf82e8d13f479130d3e09da3	ipl	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3993500

device_ref

tag	name
:maincpu	z80
:keyboard	timer
:upd1990a	upd1990a
:i8251	i8251
:rs232	rs232
:palette	palette
:screen	screen
:sed1330	sed1330
:nvram	nvram
:bankdev0	address_map_bank
:bankdev8	address_map_bank
:cartslot	generic_cartslot
:io_cart	generic_cartslot

sound

channels
0

feature

type	status	overall
sound	unemulated

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
cartridge	cartslot				cartridge1	cart1
cartridge	io_cart				cartridge2	cart2

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
cartridge	cartslot				bin, rom
cartridge	io_cart				bin, rom

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		80		no

port, analog

port_tag	analog_masks
:Y.0
:Y.1
:Y.2
:Y.3
:Y.4
:Y.5
:Y.6
:Y.7
:Y.8
:Y.9

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
rs232	terminal	serial_terminal	no
rs232	swtpc8212	swtpc8212_terminal	no
rs232	sunkbd	sunkbd_adaptor	no
rs232	rs_printer	rs_serial_printer	no
rs232	rs232_sync_io	rs232_sync_io	no
rs232	printer	serial_printer	no
rs232	patch	rs232_patch_box	no
rs232	s97801	s97801_terminal	no
rs232	msystems_mouse	rs232_mouse_hle_msystems	no
rs232	scorpion	scorpion_ic	no
rs232	nss_tvi	nss_tvinterface	no
rs232	mockingboard	mockingboardd	no
rs232	loopback	rs232_loopback	no
rs232	keyboard	serial_keyboard	no
rs232	ie15	ie15_terminal	no
rs232	null_modem	null_modem	no
rs232	votraxtnt	serial_votraxtnt	no
rs232	h19	serial_heath_h19	no
rs232	dec_loopback	dec_rs232_loopback	no
rs232	pty	pseudo_terminal	no
rs232	auto3a	auto3a_terminal	no
cartslot
io_cart
