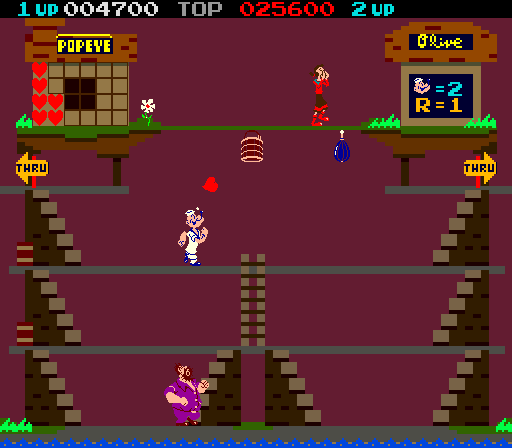

Popeye (revision F) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
popeyef	nintendo/popeye.cpp		no	no	no	yes	Popeye (revision F)	1982	Nintendo	popeye	popeye

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	448	59.940000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
tpp2-c_f.7a	8192	5fc5264d	6c3d4df748c55293b6de58bd874a08f8164b878d	maincpu	0	good	no
tpp2-c_f.7b	8192	51de48e8	7573931c6fcb53ee5ab9408906cd8eb2ba271c64	maincpu	2000	good	no
tpp2-c_f.7c	8192	62df9647	65d043b4142aa3ad2db7a1d4e1a2c22656ca7ade	maincpu	4000	good	no
tpp2-c_f.7e	8192	f31e7916	0f54ea7b1691b7789067fe880ffc56fac1d9523a	maincpu	6000	good	no
tpp2-v.5n	4096	cca61ddd	239f87947c3cc8c6693c295ebf5ea0b7638b781c	gfx1	0	good	no	tpp2-v.5n
tpp2-v.1e	8192	0f2cd853	426c9b4f6579bfcebe72b976bfe4f05147d53f96	gfx2	0	good	no	tpp2-v.1e
tpp2-v.1f	8192	888f3474	ddee56b2b49bd50aaf9c98d8ef6e905e3f6ab859	gfx2	2000	good	no	tpp2-v.1f
tpp2-v.1j	8192	7e864668	8e275dbb1c586f4ebca7548db05246ef0f56d7b1	gfx2	4000	good	no	tpp2-v.1j
tpp2-v.1k	8192	49e1d170	bd51a4e34ce8109f26954760156e3cf05fb9db57	gfx2	6000	good	no	tpp2-v.1k
tpp2-c.4a	32	375e1602	d84159a0af5db577821c43712bc733329a43af80	proms	0	good	no	tpp2-c.4a
tpp2-c.3a	32	e950bea1	0b48082fe79d9fcdca7e80caff1725713d0c3163	proms	20	good	no	tpp2-c.3a
tpp2-c.5b	256	c5826883	f2c4d3473b3bfa55bffad003dc1fd79540e7e0d1	sprpal	0	good	no	tpp2-c.5b
tpp2-c.5a	256	c576afba	013c8e8db08a03c7ba156cfefa671d26155fe835	sprpal	0	good	no	tpp2-c.5a
tpp2-v.7j	256	a4655e2e	2a620932fccb763c6c667278c0914f31b9f00ddf	timing	0	good	no	tpp2-v.7j

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	4000000
audio	mono	Speaker
audio	aysnd	AY-3-8910A PSG	2000000
audio	snd_nl	Netlist Sound Device

device_ref

name
z80
screen
gfxdecode
palette
speaker
ay8910
netlist_sound
nl_stream_in
nl_stream_in
nl_stream_in
nl_stream_out

sound

channels
1

input

players	coins	service	tilt
2	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	1	4	no
joy	2	1	4	no

port, analog

port_tag	analog_masks
:DSW0
:DSW1
:MCONF
:P1
:P2
:SYSTEM

configuration

Copyright

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Copyright	DSW0	96

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Nintendo	64	yes
Nintendo Co.,Ltd	32	no
Nintendo of America	96	no

Interlace mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Interlace mode	MCONF	3

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
False Progressive	0	yes
Interlaced (scanline skip)	1	no
Interlaced (bitmap)	2	no

dipswitch

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW0	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
A 3/1 B 1/2	3	no
2 Coins/1 Credit	14	no
A 2/1 B 2/5	1	no
A 2/1 B 1/3	4	no
A 1/1 B 2/1	7	no
1 Coin/1 Credit	15	yes
A 1/1 B 1/2	12	no
1 Coin/2 Credits	13	no
A 1/2 B 1/4	6	no
A 1/2 B 1/5	11	no
A 2/5 B 1/1	2	no
A 1/3 B 1/1	10	no
A 1/4 B 1/1	9	no
A 1/5 B 1/1	5	no
A 1/6 B 1/1	8	no
Free Play	0	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW1	3

location

name	number	inverted
SW2	1	no
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	3	no
2	2	no
3	1	yes
4	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW1	12

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	12	yes
Medium	8	no
Hard	4	no
Hardest	0	no

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSW1	48

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
20000	48	yes
30000	32	no
50000	16	no
None	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW1	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	no
On	0	yes

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW1	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright	0	yes
Cocktail	128	no
