Kasparov Prisma - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
prisma	saitek/prisma.cpp		no	no	no	yes	Kasparov Prisma	1990	Saitek / Heuristic Software

snap

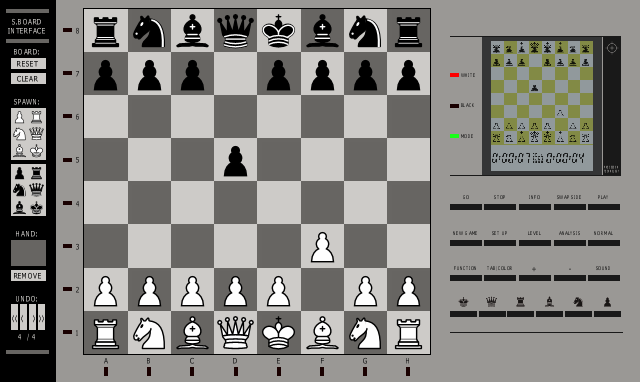

Kasparov Prisma png snap

Kasparov Prisma jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
prisma	38241	29/12/2025 11:31:38	640	382	96	96	0	Format24bppRgb	305:MAME 0.264.0 (Mar 27 2024)	8bef851e27470b7e6941090a6877b06987f38714

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	svg	0	436	540	60.000000	14126400	436	0	436	540	0	540	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
90_saitek_86051150st9_3258l02p.u1	32768	b6f8384f	a4e8a4a45009c15bda1778512a87dea756aae6d8	maincpu	0	good	no
simultano.svg	795951	ac9942bb	f9252e5bf7b8af698a403c3f8f5ea9e475e0bf0b	screen	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Hitachi H8/325	20000000
audio	speaker	Speaker
audio	dac	1-Bit DAC

device_ref

tag	name
:maincpu	h8325
:maincpu:intc	h8325_intc
:maincpu:port1	h8_digital_port
:maincpu:port2	h8_digital_port
:maincpu:port3	h8_digital_port
:maincpu:port4	h8_digital_port
:maincpu:port5	h8_digital_port
:maincpu:port6	h8_digital_port
:maincpu:port7	h8_digital_port
:maincpu:timer8_0	h8_timer8_channel
:maincpu:timer8_1	h8_timer8_channel
:maincpu:timer16	h8_timer16
:maincpu:timer16:0	h8325_timer16_channel
:maincpu:sci0	h8_sci
:maincpu:sci1	h8_sci
:board	sensorboard
:lcd	sed1502
:lcd_pwm	pwm_display
:screen	screen
:led_pwm	pwm_display
:speaker	speaker
:dac	dac

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		21		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:IN.3
:RESET
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.11
:board:RANK.12
:board:RANK.13
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

configuration

CPU Frequency

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
CPU Frequency	IN.0	129

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
12MHz (unofficial)	129	no
16MHz (Chess Champion 2150L)	0	no
20MHz (Prisma)	1	yes
24MHz (unofficial)	128	no

Battery Status

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Battery Status	IN.3	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low	0	no
Normal	1	yes

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
