PSI98 - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
psi98	kontron/kdt6.cpp		no	no	no	yes	PSI98	1984	Kontron

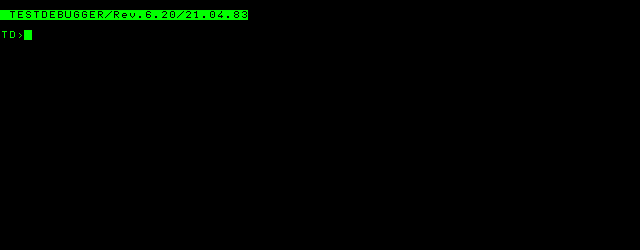

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
psi98	1036	29/12/2025 11:31:38	640	250	96	96	0	Format24bppRgb	305:MAME 0.189 (Aug 30 2017)	31e2240686e9f966e17b447e51ab0c204003cb69

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	640	250	59.868188	13516800	824	48	688	274	0	250	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
td_62b60_1.prom1	4096	dbc01eeb	3ecab997623836599a5e0b2a05d0f743d93edf00	boot	0	good	no
boot_v61_a.prom2	4096	6dd9a5e3	b812947009d83e9c6119e731ba7d40fe3597d42c	boot	1000	good	no
ch6_d-e.bin	4096	e7bca335	454ca3b8b8ac66464870e4bd5497050038d771c8	gfx	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	4000000
audio	mono	Speaker
audio	beeper	Beep	1000
audio	speaker	Filtered DAC
audio	fdc:0:fd55f:flopsndout	Speaker
audio	fdc:0:fd55f:floppysound	Floppy sound	44100
audio	fdc:1:fd55f:flopsndout	Speaker
audio	fdc:1:fd55f:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
floppy_list	psi98	original

device_ref

tag	name
:maincpu	z80
:screen	screen
:palette	palette
:crtc	mc6845
:mono	speaker
:beeper	beep
:speaker	speaker_sound_device
:beep_timer	timer
:dma	z80dma
:uart_clk	clock
:ctc1	z80ctc
:ctc1:ch0	z80ctc_channel
:ctc1:ch1	z80ctc_channel
:ctc1:ch2	z80ctc_channel
:ctc1:ch3	z80ctc_channel
:ctc2	z80ctc
:ctc2:ch0	z80ctc_channel
:ctc2:ch1	z80ctc_channel
:ctc2:ch2	z80ctc_channel
:ctc2:ch3	z80ctc_channel
:sio	z80sio
:sio:cha	z80sio_channel
:sio:chb	z80sio_channel
:rs232a	rs232
:rs232b	rs232
:pio	z80pio
:centronics	centronics
:centronics:printer	centronics_printer
:centronics:printer:printer	printer_image
:cent_data_in	input_buffer
:cent_data_out	output_latch
:rtc	upd1990a
:fdc	upd765a
:fdc:0	floppy_connector
:fdc:0:fd55f	teac_fd_55f
:fdc:0:fd55f:flopsndout	speaker
:fdc:0:fd55f:floppysound	flopsnd
:fdc:1	floppy_connector
:fdc:1:fd55f	teac_fd_55f
:fdc:1:fd55f:flopsndout	speaker
:fdc:1:fd55f:floppysound	flopsnd
:floppy_list	software_list
:kbd	psi_kbd
:kbd:hle	psi_hle_kbd

sound

channels
3

device, instance

type	tag	interface	name	briefname
printout	centronics:printer:printer		printout	prin
floppydisk	fdc:0:fd55f	floppy_5_25	floppydisk1	flop1
floppydisk	fdc:1:fd55f	floppy_5_25	floppydisk2	flop2

device, extension

type	tag	interface	extension_names
printout	centronics:printer:printer		prn
floppydisk	fdc:0:fd55f	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk
floppydisk	fdc:1:fd55f	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		91		no

port, analog

port_tag	analog_masks
:S2
:kbd:hle:mod
:kbd:hle:row_0
:kbd:hle:row_1
:kbd:hle:row_2
:kbd:hle:row_3
:kbd:hle:row_4
:kbd:hle:row_5
:kbd:hle:row_6

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
rs232a	terminal	serial_terminal	no
rs232a	sunkbd	sunkbd_adaptor	no
rs232a	votraxtnt	serial_votraxtnt	no
rs232a	rs_printer	rs_serial_printer	no
rs232a	dec_loopback	dec_rs232_loopback	no
rs232a	h19	serial_heath_h19	no
rs232a	ie15	ie15_terminal	no
rs232a	null_modem	null_modem	no
rs232a	keyboard	serial_keyboard	no
rs232a	patch	rs232_patch_box	no
rs232a	swtpc8212	swtpc8212_terminal	no
rs232a	printer	serial_printer	no
rs232a	scorpion	scorpion_ic	no
rs232a	loopback	rs232_loopback	no
rs232a	mockingboard	mockingboardd	no
rs232a	msystems_mouse	rs232_mouse_hle_msystems	no
rs232a	nss_tvi	nss_tvinterface	no
rs232a	rs232_sync_io	rs232_sync_io	no
rs232a	pty	pseudo_terminal	no
rs232b	terminal	serial_terminal	no
rs232b	sunkbd	sunkbd_adaptor	no
rs232b	votraxtnt	serial_votraxtnt	no
rs232b	rs_printer	rs_serial_printer	no
rs232b	dec_loopback	dec_rs232_loopback	no
rs232b	h19	serial_heath_h19	no
rs232b	ie15	ie15_terminal	no
rs232b	null_modem	null_modem	no
rs232b	keyboard	serial_keyboard	no
rs232b	patch	rs232_patch_box	no
rs232b	swtpc8212	swtpc8212_terminal	no
rs232b	printer	serial_printer	no
rs232b	scorpion	scorpion_ic	no
rs232b	loopback	rs232_loopback	no
rs232b	mockingboard	mockingboardd	no
rs232b	msystems_mouse	rs232_mouse_hle_msystems	no
rs232b	nss_tvi	nss_tvinterface	no
rs232b	rs232_sync_io	rs232_sync_io	no
rs232b	pty	pseudo_terminal	no
centronics	nlq401	nlq401	no
centronics	smartboard	centronics_smartboard	no
centronics	chessmec	centronics_chessmec	no
centronics	samdac	centronics_samdac	no
centronics	covox_stereo	covox_stereo	no
centronics	adaptator	adaptator_multitap	no
centronics	digiblst	cpcdigiblst	no
centronics	lx800	lx800	no
centronics	jx80	epson_jx80	no
centronics	ap2000	ap2000	no
centronics	ex800	ex800	no
centronics	fx80	epson_fx80	no
centronics	rx80	epson_rx80	no
centronics	mz1p16	mz1p16	no
centronics	covox	covox	no
centronics	pl80	comx_pl80	no
centronics	lx810l	lx810l	no
centronics	p72	p72	no
centronics	printer	centronics_printer	yes
fdc:0	fd55f	teac_fd_55f	yes
fdc:1	fd55f	teac_fd_55f	yes
kbd	hle	psi_hle_kbd	yes
kbd	ergoline	ergoline_kbd	no

dipswitch

SIO B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SIO B	S2	1

location

name	number	inverted
S2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
RS232	0	no
Keyboard	1	yes
