mame (0289) • machine psr340 • PSR-340 PortaSound

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
psr340	yamaha/ympsr340.cpp		no	no	no	yes	PSR-340 PortaSound	1994	Yamaha

snap

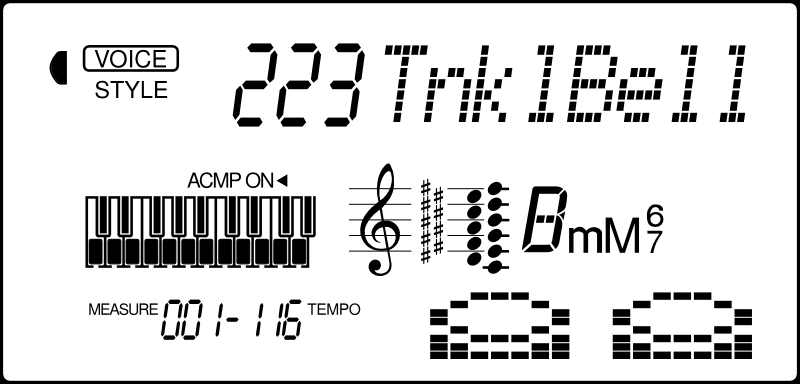

PSR-340 PortaSound png snap

PSR-340 PortaSound jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
psr340	38756	29/12/2025 11:31:38	800	384	96	96	0	Format24bppRgb	305:MAME 0.228 (Jan 27 2021)	597c91c5cd520c78b996f13ac259c8482de5ed07

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	svg	0	800	384	60.000000	18432000	800	0	800	384	0	384	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
psr340-lcd.svg	399369	f9d11ca6	da036d713c73d6b452a3e2d2b2234d473422d5fb	screen	0	good	no
xv89710.bin	2097152	271ccb8a	ec6abbdb82a5e851b77338c79ecabfd8040f023d	maincpu	0	good	no
xv89810.bin	2097152	10e68363	5edee814bf07c49088da44474fdd5c817e7c5af0	wave	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Yamaha SWX00	16934400
cpu	mks3:cpu	Hitachi HD6305V0	8000000
audio	maincpu	Yamaha SWX00	16934400
audio	maincpu:swx00	Yamaha SWX00 (sound subsystem)
audio	speaker	Speaker

device_ref

tag	name
:maincpu	swx00
:maincpu:intc	h8s_intc
:maincpu:adc	h8_adc_2357
:maincpu:dma	h8s_dma
:maincpu:dma:0	h8s_dma_channel
:maincpu:dma:1	h8s_dma_channel
:maincpu:port1	h8_digital_port
:maincpu:port2	h8_digital_port
:maincpu:port3	h8_digital_port
:maincpu:port4	h8_digital_port
:maincpu:port5	h8_digital_port
:maincpu:port6	h8_digital_port
:maincpu:porta	h8_digital_port
:maincpu:portb	h8_digital_port
:maincpu:portc	h8_digital_port
:maincpu:portd	h8_digital_port
:maincpu:porte	h8_digital_port
:maincpu:portf	h8_digital_port
:maincpu:portg	h8_digital_port
:maincpu:timer8_0	h8h_timer8_channel
:maincpu:timer8_1	h8h_timer8_channel
:maincpu:timer16	h8_timer16
:maincpu:timer16:0	h8s_timer16_channel
:maincpu:timer16:1	h8s_timer16_channel
:maincpu:timer16:2	h8s_timer16_channel
:maincpu:timer16:3	h8s_timer16_channel
:maincpu:timer16:4	h8s_timer16_channel
:maincpu:timer16:5	h8s_timer16_channel
:maincpu:watchdog	h8_watchdog
:maincpu:sci0	h8_sci
:maincpu:sci1	h8_sci
:maincpu:sci2	h8_sci
:maincpu:swx00	swx00_sound
:ram	nvram
:mks3	mks3
:mks3:cpu	hd6305v0
:ks0066	ks0066
:screen	screen
:mdin	midi_port
:mdin:midiin	midiin_port
:mdin:midiin:midiinimg	midiin
:mdout	midi_port
:mdout:midiout	midiout_port
:mdout:midiout:midioutimg	midiout
:speaker	speaker

sound

channels
1

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
midiin	mdin:midiin:midiinimg				midiin	min
midiout	mdout:midiout:midioutimg				midiout	mout

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
midiin	mdin:midiin:midiinimg				mid, syx
midiout	mdout:midiout:midioutimg				mid

input

players	coins	service	tilt
1		no	no

port, analog

port_tag	analog_masks
:SA
:SB
:SC
:SD
:SE
:SF
:SG
:SH
:mdin:midiin:midiinimg:CFG
:mks3:A1
:mks3:A10
:mks3:A11
:mks3:A2
:mks3:A3
:mks3:A4
:mks3:A5
:mks3:A6
:mks3:A7
:mks3:A8
:mks3:A9
:mks3:B1
:mks3:B10
:mks3:B11
:mks3:B2
:mks3:B3
:mks3:B4
:mks3:B5
:mks3:B6
:mks3:B7
:mks3:B8
:mks3:B9

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
mdin	midiin	midiin_port	yes
mdout	midiout	midiout_port	yes

configuration

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin:midiin:midiinimg:CFG	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no
