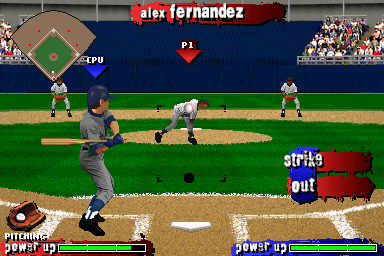

Power Up Baseball (prototype) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
pubball	itech/itech32.cpp		no	no	no	yes	Power Up Baseball (prototype)	1996	Midway / Incredible Technologies

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	384	240	60.106990	8000000	508	0	384	262	0	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
bb0.bin	154257	f9350590	91352373fb6a41495bb04db01d097e76770c5419	maindata	0	good	no
bb1.bin	154257	5711f503	94765a5e9311fffbf0bc386c3b531c79acd7cada	maindata	1	good	no
bb2.bin	154257	3e202dc6	a1a9fdff1957a8e43f002883666f1cd489879258	maindata	2	good	no
bb3.bin	154257	e6d1ba8d	c07fe0f9093422505079785ef8e019d1ba69e2ff	maindata	3	good	no
bball.bim	131072	915a9116	54dbb9f8eb358c5dbe2022fad86cdd411c893b83	soundcpu	10000	good	no
grom00_0.bin	1048576	46822b0f	0b9758a1ccad252973a1fc61dc1a4eb1d0eb1636	grom	0	good	no
grom00_1.bin	1048576	c11236ce	1459646b4d947aa63b037c7c5ab19d3261cbaa19	grom	1	good	no
grom00_2.bin	1048576	e6be30f3	832aff7b9a42fa57ccff09554c9f65f469e1045d	grom	2	good	no
grom00_3.bin	1048576	e0d454fb	26ca842682ad618619d4311f7ecd1bb326771c2e	grom	3	good	no
grom01_0.bin	1048576	115a66f2	9f514c82943d3a779bd44c93618a396b1f9184b9	grom	400000	good	no
grom01_1.bin	1048576	1dfc8dbd	2e3018d61b1c7acec4a2f5da8184da33764e7965	grom	400001	good	no
grom01_2.bin	1048576	23386483	9198b9d7e45d0a276947ebfbdda844113aa71928	grom	400002	good	no
grom01_3.bin	1048576	ac0123ce	c6fe79ca8c3efdfaf9310dfab3e0142042319b11	grom	400003	good	no
grom02_0.bin	1048576	06cd3cca	501b0be9388c5a6b89d453f3287217dd286eecff	grom	800000	good	no
grom02_1.bin	1048576	3df38e91	f3adf29598481d050258d266a360d5b40d86f665	grom	800001	good	no
grom02_2.bin	1048576	7c47dde9	654656878676278e0ea73e367337eaac5f1f1d50	grom	800002	good	no
grom02_3.bin	1048576	e6eb01bf	f0e7f2372dfd072e005fbf7489f54242523b4a28	grom	800003	good	no
grom3_0.bin	524288	376beb10	2dcea69b5e81d010b4c660df189a560742719ce6	grom	c00000	good	no
grom3_1.bin	524288	3b3cb8ba	eabac9e381dd652a4575f159dac45499406b2702	grom	c00001	good	no
grom3_2.bin	524288	3bdfac73	64777cdf92bbdfbfb6806039421a28f9810b6b03	grom	c00002	good	no
grom3_3.bin	524288	1de04025	25ba2fa49cc2423642020e05586662f67943381b	grom	c00003	good	no
bbsrom0.bin	1018766	2a69f77e	c98ccdb0d79e77bf87077ac29626d84a811d1326	ensoniq.0	0	good	no
bbsrom1.bin	1041474	4af8c871	fe4b0ed0a4ef77147fe150c0cd70dff1929e9aff	ensoniq.0	200000	good	no
bbsrom2.bin	1041965	e4f9ad52	c8bf590de35155937bd656b39658880d9a40f5c3	ensoniq.1	0	good	no
bbsrom3.bin	1020083	b37e2906	f8c2fd54fe8579eb2875c77630efa8d715eae022	ensoniq.1	200000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68EC020	25000000
cpu	soundcpu	Motorola MC6809E	2000000
audio	speaker	Speaker
audio	ensoniq	Ensoniq ES5506	16000000

device_ref

name
m68ec020
mc6809e
generic_latch_8
ticket_dispenser
watchdog
palette
screen
speaker
es5506
nvram
ipt_merge_any_hi
generic_latch_8

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
trackball	1	5		yes	0	255	25	32
trackball	2	5		yes	0	255	25	32

port, analog

port_tag	analog_masks
:DIPS
:P1
:P2
:P3
:P4
:TRACKX1	255
:TRACKX2	255
:TRACKY1	255
:TRACKY2	255

dipswitch

Video Sync

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Video Sync	DIPS	1048576

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
-	0	yes
+	1048576	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DIPS	2097152

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2097152	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DIPS	4194304

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4194304	no
On	0	yes

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DIPS	8388608

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8388608	no
