name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
puyo	sega/segac2.cpp		no	no	no	yes	Puyo Puyo (World)	1992	Compile / Sega

snap

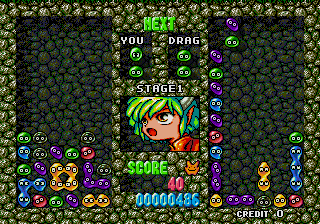

Puyo Puyo (World) png snap

Puyo Puyo (World) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
puyo	24551	29/12/2025 11:31:39	320	224	96	96	0	Format24bppRgb	305:MAME 0.128 (Oct 16 2008)	713a5ed1f9981682ca6db012fa3be6128f5c2abb

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	256	224	59.922743	8038276	512	0	256	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
epr-15198.ic32	131072	9610d80c	1ffad09d3369c1942d4db611c41bae47d08c7564	maincpu	0	good	no
epr-15197.ic31	131072	7b1f3229	13d0905291e748973d7d17eb404a286ffb94de03	maincpu	1	good	no
epr-15200.ic34	131072	0a0692e5	d4ecc5b1791a91e3b33a5d4d0dd305f1623483d9	maincpu	100000	good	no
epr-15199.ic33	131072	353109b8	92440987add3124b758e7eaa77a3a6f54ca61bb8	maincpu	100001	good	no
epr-15196.ic4	131072	79112b3b	fc3a202e1e2ff39950d4af689b7fcca86c301805	upd	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	8948862
cpu	m50dass:maincpu	Zilog Z80	4000000
audio	gen_vdp	Sega 315-5313 Megadrive VDP	53693175
audio	gen_vdp:snsnd	Sega VDP PSG	3579545
audio	mono	Speaker
audio	ymsnd	YM3438 OPN2C	7670453
audio	upd	NEC uPD7759	640000
audio	m50dass:mono	Speaker
audio	m50dass:ym2413	YM2413 OPLL	4000000

device_ref

tag	name
:maincpu	m68000
:nvram	nvram
:io	315_5296
:gen_vdp	sega315_5313
:gen_vdp:palette_lut	palette
:gen_vdp:snsnd	segapsg
:gen_vdp:gfx_palette	palette
:gen_vdp:gfx_palette_shadow	palette
:gen_vdp:gfx_palette_hilight	palette
:scantimer	timer
:screen	screen
:palette	palette
:mono	speaker
:ymsnd	ym3438
:upd	upd7759
:m50dass	m50dass
:m50dass:maincpu	z80
:m50dass:mono	speaker
:m50dass:ym2413	ym2413

sound

channels
2

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy	1	1	8	no
joy	2	1	8	no

port, analog

port_tag	analog_masks
:COINAGE
:DSW
:P1
:P2
:SERVICE

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	COINAGE	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
3 Coins/4 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	COINAGE	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
3 Coins/4 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

VS. Mode Credits/Match

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
VS. Mode Credits/Match	DSW	4

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	4	yes
3	0	no

1P Mode Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
1P Mode Difficulty	DSW	24

location

name	number	inverted
SW2	4	no
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	16	no
Medium	24	yes
Hard	8	no
Hardest	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	32

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Moving Seat

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Moving Seat	DSW	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No Use	128	yes
In Use	0	no

clones

name	description
puyoja	Puyo Puyo (Japan, Rev A)
puyoj	Puyo Puyo (Japan, Rev B)
puyobl	Puyo Puyo (World, bootleg)
