Raiden DX (UK) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
raidendx	seibu/raiden2.cpp		no	no	no	yes	Raiden DX (UK)	1994	Seibu Kaihatsu

snap

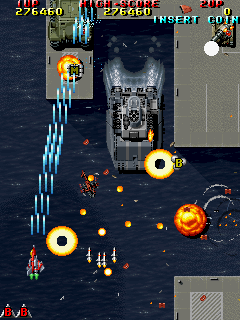

Raiden DX (UK) png snap

Raiden DX (UK) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
raidendx	29874	29/12/2025 11:31:39	240	320	96	96	0	Format24bppRgb	305:MAME 0.155 (Oct 15 2014)	6a9ed8cf32b81bb0cd8e9753be62a1cc186e19cb

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	270	320	240	55.407801	8000000	512	0	320	282	0	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
1d.4n	524288	14d725fc	f12806f64f069fdc4ee29b309a32f7ca00b36f93	maincpu	0	good	no
2d.4p	524288	5e7e45cb	94eff893b5335c522f1c063c3175b9bac87b0a25	maincpu	1	good	no
3d.6n	524288	f0a47e67	8cbd21993077b2e01295db6e343cae9e0e4bfefe	maincpu	2	good	no
4d.6p	524288	2a2003e8	f239b351759babe4683d16e745a5ac2f3c2ab06b	maincpu	3	good	no
seibu_5.u1110	65536	8c46857a	8b269cb20adf960ba4eb594d8add7739dbc9a837	audiocpu	0	good	no
seibu_7.u0724	131072	c73986d4	d29345077753bda53560dedc95dd23f329e521d9	chars	0	good	no
seibu_6.u1017	262144	9a9196da	3d1ee67fb0d40a231ce04d10718f07ffb76db455	oki1	0	good	no
copx-d2.u0313	262144	a6732ff9	c4856ec77869d9098da24b1bb3d7d58bb74b4cda	copx	0	good	no
dx_back-1.u075	2097152	90970355	d71d57cd550a800f583550365102adb7b1b779fc	tiles	0	good	no
dx_back-2.u0714	2097152	5799af3e	85d6532abd769da77bcba70bd2e77915af40f987	tiles	200000	good	no
raiden_2_obj-1.u0811	2097152	ff08ef0b	a1858430e8171ca8bab785457ef60e151b5e5cf1	sprites	0	good	no
raiden_2_obj-2.u082	2097152	638eb771	9774cc070e71668d7d1d20795502dccd21ca557b	sprites	2	good	no
dx_obj-3.u0837	2097152	ba381227	dfc4d659aca1722a981fa56a31afabe66f444d5d	sprites	400000	good	no
dx_obj-4.u0836	2097152	65e50d19	c46147b4132abce7314b46bf419ce4773e024b05	sprites	400002	good	no
raiden_2_pcm.u1018	262144	8cf0d17e	0fbe0b1e1ca5360c7c8329331408e3d799b4714c	oki2	0	good	no

chip

type	tag	name	clock
cpu	maincpu	NEC V30	16000000
cpu	audiocpu	Zilog Z80	3579545
audio	mono	Speaker
audio	ymsnd	YM2151 OPM	3579545
audio	oki1	OKI MSM6295 ADPCM	1022727
audio	oki2	OKI MSM6295 ADPCM	1022727

device_ref

tag	name
:maincpu	v30
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:crtc	seibu_crtc
:spriteram	buffered_spriteram16
:spritegen	sei25x_rise1x
:raiden2cop	raiden2cop
:audiocpu	z80
:seibu_sound	seibu_sound
:mono	speaker
:ymsnd	ym2151
:oki1	okim6295
:oki2	okim6295

sound

channels
1

input

players	coins	service	tilt
2	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:COIN
:DSW
:P1_P2
:SYSTEM

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW	7

location

name	number	inverted
SW1	1	yes
SW1	2	yes
SW1	3	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	1	no
3 Coins/1 Credit	2	no
2 Coins/1 Credit	4	no
1 Coin/1 Credit	7	yes
1 Coin/2 Credits	6	no
1 Coin/3 Credits	5	no
1 Coin/4 Credits	3	no
Free Play	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW	56

location

name	number	inverted
SW1	4	yes
SW1	5	yes
SW1	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	8	no
3 Coins/1 Credit	16	no
2 Coins/1 Credit	32	no
1 Coin/1 Credit	56	yes
1 Coin/2 Credits	48	no
1 Coin/3 Credits	40	no
1 Coin/4 Credits	24	no
Free Play	0	no

Starting Coin

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Starting Coin	DSW	64

location

name	number	inverted
SW1	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	64	yes
X 2	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW	128

location

name	number	inverted
SW1	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	768

location

name	number	inverted
SW2	1	yes
SW2	2	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	768	yes
Easy	512	no
Hard	256	no
Very Hard	0	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW	3072

location

name	number	inverted
SW2	3	yes
SW2	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	0	no
4	1024	no
2	2048	no
3	3072	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	4096

location

name	number	inverted
SW2	5	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4096	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	8192

location

name	number	inverted
SW2	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8192	yes
On	0	no

Demo Sound

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sound	DSW	16384

location

name	number	inverted
SW2	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	16384	yes

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW	32768

location

name	number	inverted
SW2	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32768	yes
On	0	no

clones

name	description
raidendxch	Raiden DX (China)
raidendxg	Raiden DX (Germany)
raidendxnl	Raiden DX (Holland)
raidendxa1	Raiden DX (Hong Kong, set 1)
raidendxa2	Raiden DX (Hong Kong, set 2)
raidendxj	Raiden DX (Japan, set 1)
raidendxja	Raiden DX (Japan, set 2)
raidendxk	Raiden DX (Korea)
raidendxpt	Raiden DX (Portugal)
raidendxu	Raiden DX (US)
