Rastan Saga (Japan Rev 1, earlier code base) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
rastsagaa	taito/rastan.cpp		no	no	no	yes	Rastan Saga (Japan Rev 1, earlier code base)	1987	Taito Corporation	rastan	rastan

snap

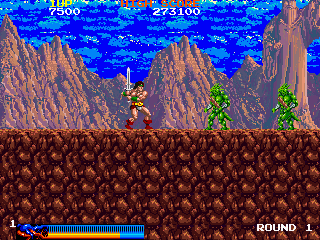

Rastan Saga (Japan Rev 1, earlier code base) png snap

Rastan Saga (Japan Rev 1, earlier code base) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
rastsagaa	17280	29/12/2025 11:31:39	320	240	96	96	0	Format24bppRgb	305:MAME 0.125 (May 5 2008)	558bd92a857b3b99624e32afae9b1ea1d7a095e8

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	240	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
b04-14.19	65536	a38ac909	66d792fee03c6bd87d15060b9d5cae74137c5ebd	maincpu	0	good	no
b04-13.7	65536	bad60872	e020f79b3ac3d2abccfcd5d135d2dc49e1335c7d	maincpu	1	good	no
b04-16-1.20	65536	00b59e60	545ab3eb9ef25c532dda5a9eec087665ba0cecc1	maincpu	20000	good	no
b04-15-1.8	65536	ff9e018a	37048eecec799f29564517fae9525ef0e3d9d9e5	maincpu	20001	good	no
b04-18-1.21	65536	b626c439	976e820edc4ba107c5b579edaaee1e354e85fb67	maincpu	40000	good	no
b04-17-1.9	65536	c928a516	fe87fdf2d1b7ba93e1986460eb6af648b58f42e4	maincpu	40001	good	no
b04-19.49	65536	ee81fdd8	fa59dac2583a7d2979550dffc6f9c6c2bd67bfd5	audiocpu	0	good	no	b04-19.49
b04-01.40	131072	cd30de19	f8d158d38cd07a24cb5ddefd4ce90beec706924d	pc080sn	0	good	no	b04-01.40
b04-02.67	131072	54040fec	a2bea2ce1cebd25b33be41723299ca0512d95f9e	pc080sn	1	good	no	b04-02.67
b04-03.39	131072	ab67e064	5c49f0ff9221cba9f2bb8da86eb4448c73012410	pc080sn	40000	good	no	b04-03.39
b04-04.66	131072	94737e93	3df7f085fe6468bda11fab2e86252df6f74f7a99	pc080sn	40001	good	no	b04-04.66
b04-05.15	131072	c22d94ac	04f69f9af7ac4242e95dba32988afa3616d75a92	pc090oj	0	good	no	b04-05.15
b04-06.28	131072	002ccf39	fdc29f39198f9b488e298ee89b0eeb3417527733	pc090oj	1	good	no	b04-06.28
b04-07.14	131072	b5632a51	da6ebe6afe245443a76b33714213549356c0c5c3	pc090oj	40000	good	no	b04-07.14
b04-08.27	131072	feafca05	9de9ff1fcf037e5ab25c181b678245041238d6ae	pc090oj	40001	good	no	b04-08.27
b04-20.76	65536	fd1a34cc	b1682959521fa295769207b75cf7d839e9ec95fd	adpcm	0	good	no	b04-20.76

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	8000000
cpu	audiocpu	Zilog Z80	4000000
audio	mono	Speaker
audio	ymsnd	YM2151 OPM	4000000
audio	msm	OKI MSM5205 ADPCM	384000

device_ref

tag	name
:maincpu	m68000
:audiocpu	z80
:watchdog	watchdog
:screen	screen
:palette	palette
:pc080sn	pc080sn
:pc090oj	pc090oj
:mono	speaker
:ymsnd	ym2151
:msm	msm5205
:adpcm_sel	ls157
:ciu	pc060ha

sound

channels
1

input

players	coins	service	tilt
2	2	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy	1	2	8	no
joy	2	2	8	no

port, analog

port_tag	analog_masks
:DSWA
:DSWB
:P1
:P2
:SPECIAL
:SYSTEM

dipswitch

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSWA	1

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright	0	yes
Cocktail	1	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSWA	2

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSWA	4

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSWA	8

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSWA	48

location

name	number	inverted
SW1	5	no
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 Coins/1 Credit	16	no
1 Coin/1 Credit	48	yes
3 Coins/4 Credits	0	no
1 Coin/2 Credits	32	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSWA	192

location

name	number	inverted
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 Coins/1 Credit	64	no
1 Coin/1 Credit	192	yes
3 Coins/4 Credits	0	no
1 Coin/2 Credits	128	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSWB	3

location

name	number	inverted
SW2	1	no
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	2	no
Medium	3	yes
Hard	1	no
Hardest	0	no

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSWB	12

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
100k 200k 400k 600k 800k	12	yes
150k 300k 600k 900k 1200k	8	no
200k 400k 800k 1200k 1600k	4	no
250k 500k 1000k 1500k 2000k	0	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSWB	48

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3	48	yes
4	32	no
5	16	no
6	0	no

Allow Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Continue	DSWB	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	64	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSWB	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
