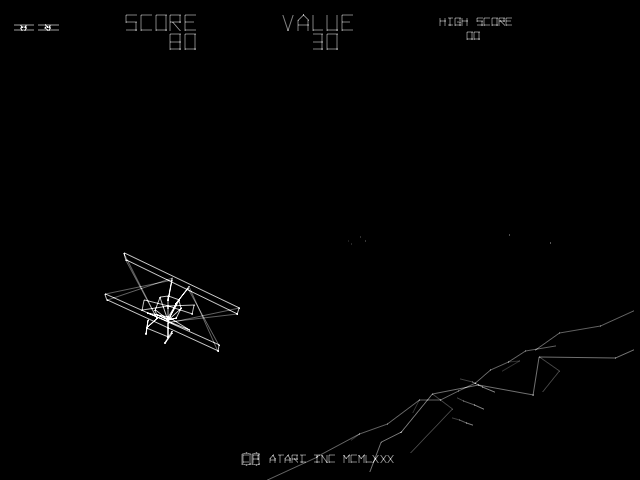

Red Baron (revised hardware) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
redbaron	atari/bzone.cpp		no	no	no	yes	Red Baron (revised hardware)	1980	Atari

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	vector	0			61.523438								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
037587-01.fh1	4096	60f23983	7a9e5380bf49bf50a2d8ab0e0bd1ba3ac8efde24	maincpu	4800	good	no
037000-01.e1	2048	69bed808	27d99efc74113cdcbbf021734b8a5a5fdb78c04c	maincpu	5000	good	no
036998-01.j1	2048	d1104dd7	0eab47cb45ede9dcc4dd7498dcf3a8d8194460b4	maincpu	6000	good	no
036997-01.k1	2048	7434acb4	c950c4c12ab556b5051ad356ab4a0ed6b779ba1f	maincpu	6800	good	no
036996-01.lm1	2048	c0e7589e	c1aedc95966afffd860d7e0009d5a43e8b292036	maincpu	7000	good	no
036995-01.n1	2048	ad81d1da	8bd66e5f34fc1c75f31eb6b168607e52aa3aa4df	maincpu	7800	good	no
037006-01.bc3	2048	9fcffea0	69b76655ee75742fcaa0f39a4a1cf3aa58088343	maincpu	3000	good	no
037007-01.a3	2048	60250ede	9c48952bd69863bee0c6dce09f3613149e0151ef	maincpu	3800	good	no
036408-01.k7	256	5903af03	24bc0366f394ad0ec486919212e38be0f08d0239	avg:prom	0	good	no
036174-01.a1	32	8b04f921	317b3397482f13b2d1bc21f296d3b3f9a118787b	user2	0	good	no
036175-01.e1	256	2af82e87	3816835a9ccf99a76d246adf204989d9261bb065	user3	0	good	no
036176-01.f1	256	b31f6e24	ce5f8ca34d06a5cfa0076b47400e61e0130ffe74	user3	0	good	no
036177-01.h1	256	8119b847	c4fbaedd4ce1ad6a4128cbe902b297743edb606a	user3	1	good	no
036178-01.j1	256	09f5a4d5	d6f2ac07ca9ee385c08831098b0dcaf56808993b	user3	1	good	no
036179-01.k1	256	823b61ae	d99a839874b45f64e14dae92a036e47a53705d16	user3	2	good	no
036180-01.l1	256	276eadd5	55718cd8ec4bcf75076d5ef0ee1ed2551e19d9ba	user3	2	good	no
036464-01.a5	32	42875b18	10ba29f3c8c8e581eb275a85574c746272ebb865	prom	0	good	no

chip

type	tag	name	clock
cpu	maincpu	MOS Technology 6502	1512000
cpu	pokey	Atari C012294 POKEY	1500000
audio	mono	Speaker
audio	pokey	Atari C012294 POKEY	1500000
audio	custom	Red Baron Custom Sound

device_ref

name
m6502
watchdog
vector_device
screen
avg_bzone
mathbox
er2055
speaker
pokey
redbaron_custom

sound

channels
1

input

players	coins	service	tilt
1	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy		1	4	no
stick				no	64	192	25	10

port, analog

port_tag	analog_masks
:DSW0
:DSW1
:FAKE1	255
:FAKE2	255
:IN0
:IN3
:IN4

dipswitch

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW0	255

location

name	number	inverted
M10	1	no
M10	2	no
M10	3	no
M10	4	no
M10	5	no
M10	6	no
M10	7	no
M10	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	253	yes

Language

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Language	DSW1	3

location

name	number	inverted
P10	1	no
P10	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
German	0	no
French	1	no
Spanish	2	no
English	3	yes

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSW1	12

location

name	number	inverted
P10	3	no
P10	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2k 10k 30k	12	no
4k 15k 40k	8	no
6k 20k 50k	4	yes
None	0	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW1	48

location

name	number	inverted
P10	5	no
P10	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2	48	no
3	32	yes
4	16	no
5	0	no

One Play Minimum

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
One Play Minimum	DSW1	64

location

name	number	inverted
P10	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Self Adjust Diff

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Self Adjust Diff	DSW1	128

location

name	number	inverted
P10	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	IN0	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no
