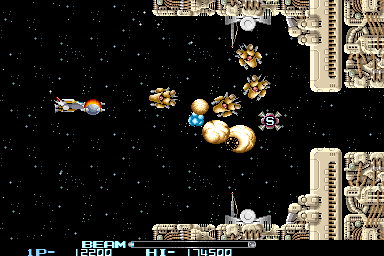

R-Type II (Japan, revision C) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
rtype2jc	irem/m72.cpp		no	no	no	yes	R-Type II (Japan, revision C)	1989	Irem	rtype2	rtype2

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	384	256	55.017606	8000000	512	64	448	284	0	256	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no	preliminary

rom

name	size	crc	sha1	region	offset	status	optional	merge
rt2_a-h0-c.ic54	131072	ef9a9990	fdf8fb7cb2b16f3cc58592da5c696ccff85f87e0	maincpu	1	good	no
rt2_a-l0-c.ic60	131072	d8b9da64	ce19fc95d0adefa57c2161d7b0d756ecf799c707	maincpu	0	good	no
rt2_a-h1-c.ic53	131072	1b1870f4	9a98b146980a87d088b7157da7a64c99902ddd54	maincpu	40001	good	no
rt2_a-l1-c.ic59	131072	60fdff35	9c89682deebfa88864b5af9cf0f05944d5c2212f	maincpu	40000	good	no
rt2_a-sp-.ic17	65536	73ffecb4	4795bf0d6263060c3d3759b659bdb189a4087600	soundcpu	0	good	no	rt2_a-sp-.ic17
rt2_b-n0.ic31	131072	2cd8f913	a53752b35da95b420dd29a09176d265d292b3938	sprites	0	good	no	rt2_b-n0.ic31
rt2_b-n1.ic21	131072	5033066d	e125127f0610c63f9e59a585db547be5d49ed863	sprites	20000	good	no	rt2_b-n1.ic21
rt2_b-n2.ic32	131072	ec3a0450	632bdd397f1bc67f6970faf7d09ab8d911e105fe	sprites	40000	good	no	rt2_b-n2.ic32
rt2_b-n3.ic22	131072	db6176fc	1eaf72af0322490c98461aded202288e387caac1	sprites	60000	good	no	rt2_b-n3.ic22
rt2_a-g00.ic50	131072	f3f8736e	37872b30459ad05b2981d4ac84983f3b52d0d2d6	tiles0	0	good	no	rt2_a-g00.ic50
rt2_a-g01.ic51	131072	b4c543af	56042eba711160fc701021c8787414dcaddcdecb	tiles0	20000	good	no	rt2_a-g01.ic51
rt2_a-g10.ic56	131072	4cb80d66	31c5496c14b277e428a2f22195fe1742d6a577d4	tiles0	40000	good	no	rt2_a-g10.ic56
rt2_a-g11.ic57	131072	bee128e0	b149dae5f8f67a329d6df033fadf50ad75c0a57a	tiles0	60000	good	no	rt2_a-g11.ic57
rt2_a-g20.ic65	131072	2dc9c71a	124e89c17f3af034d5a387ff3eab906d289c27f7	tiles0	80000	good	no	rt2_a-g20.ic65
rt2_a-g21.ic66	131072	7533c428	ba435cfb6c3c49fcc4d716dcecf8f17545b8eec6	tiles0	a0000	good	no	rt2_a-g21.ic66
rt2_a-g30.ic63	131072	a6ad67f2	b005b037ce8b3c932089982ecfbccdc922278fe3	tiles0	c0000	good	no	rt2_a-g30.ic63
rt2_a-g31.ic64	131072	3686d555	d03754d9b8a6a3bfd4a85eeddacc35a36af197bd	tiles0	e0000	good	no	rt2_a-g31.ic64
rt2_a-vo-.ic14	131072	637172d5	9dd0dc409306287238826bf301e2a7a12d6cd9ce	samples	0	good	no	rt2_a-vo-.ic14
rt2_b-4n-.ic23	256	b460c438	00e20cf754b6fd5138ee4d2f6ec28dff9e292fe6	proms	0	good	no	rt2_b-4n-.ic23
rt2_b-4p-.ic24	256	a4f2c4bc	f13b0a4b52dcc6704063b676f09d83dcba170133	proms	100	good	no	rt2_b-4p-.ic24
rt2_a-2h-.ic5	279	21ede612	5d05d3088f3d248db8948da175551ea29d7478b5	plds	0	good	no	rt2_a-2h-.ic5
rt2_a-5l-.ic33	279	86e87e50	5d4090aa76f8adfd389fbf53fb000d0bbfa1b5f6	plds	200	good	no	rt2_a-5l-.ic33
rt2_a-7d-.ic45	260	53c1e087	b214ba4e7cc3d582ee85616923f38fd4873dacb1	plds	400	good	no	rt2_a-7d-.ic45
rt2_b-3a-.ic9	279	8ad303aa	9c7b426f3aea9ce45a02b18ee65723d51ddfcc0d	plds	600	good	no	rt2_b-3a-.ic9

chip

type	tag	name	clock
cpu	maincpu	NEC V30	8000000
cpu	soundcpu	Zilog Z80	3579545
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	3579545
audio	dac	8-Bit R-2R DAC

device_ref

name
v30
z80
pic8259
buffered_spriteram16
gfxdecode
palette
screen
speaker
generic_latch_8
rst_neg_buffer
m72_audio
ym2151
dac_8bit_r2r

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	4	8	no
joy	2	4	8	no

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1

dipswitch

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW	3

location

name	number	inverted
SW1	1	no
SW1	2	no

value

name	value	default
2	2	no
3	3	yes
4	1	no
5	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	12

location

name	number	inverted
SW1	3	no
SW1	4	no

value

name	value	default
Easy	8	no
Normal	12	yes
Hard	4	no
Hardest	0	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW	48	DSW	1024	eq	0

location

name	number	inverted
SW1	5	no
SW1	6	no

value

name	value	default
5 Coins/1 Credit	0	no
3 Coins/1 Credit	16	no
2 Coins/1 Credit	32	no
1 Coin/1 Credit	48	yes

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW	192	DSW	1024	eq	0

location

name	number	inverted
SW1	7	no
SW1	8	no

value

name	value	default
1 Coin/2 Credits	192	yes
1 Coin/3 Credits	128	no
1 Coin/5 Credits	64	no
1 Coin/6 Credits	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	240	DSW	1024	ne	0

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default
6 Coins/1 Credit	160	no
5 Coins/1 Credit	176	no
4 Coins/1 Credit	192	no
3 Coins/1 Credit	208	no
8 Coins/3 Credits	16	no
2 Coins/1 Credit	224	no
5 Coins/3 Credits	32	no
3 Coins/2 Credits	48	no
1 Coin/1 Credit	240	yes
2 Coins/3 Credits	64	no
1 Coin/2 Credits	144	no
1 Coin/3 Credits	128	no
1 Coin/4 Credits	112	no
1 Coin/5 Credits	96	no
1 Coin/6 Credits	80	no
Free Play	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW	256

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	512

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	512	yes

Coin Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Mode	DSW	1024

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Mode 1	1024	yes
Mode 2	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW	6144

location

name	number	inverted
SW2	4	no
SW2	5	no

value

name	value	default
Upright	4096	yes
Upright (2P)	0	no
Cocktail	6144	no

Stop Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stop Mode	DSW	8192

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8192	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	16384

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16384	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW	32768

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32768	yes
On	0	no
