Sapphire - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sapphire	novag/sapphire.cpp		no	no	no	yes	Sapphire	1994	Novag Industries / Intelligent Heuristic Programming

snap

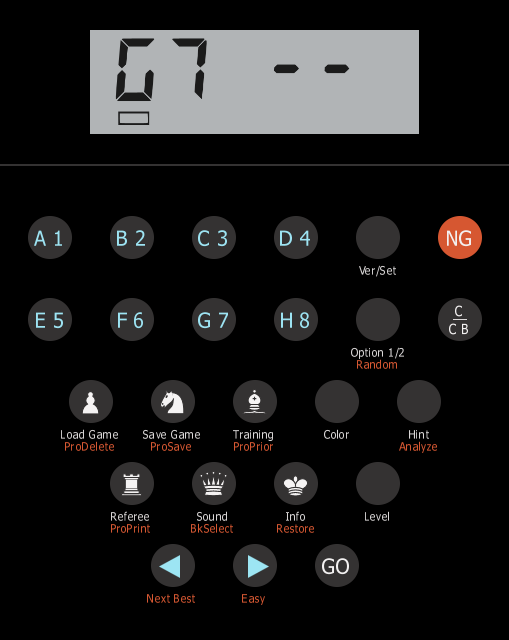

Sapphire png snap

Sapphire jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
sapphire	26489	29/12/2025 11:31:40	509	640	96	96	0	Format24bppRgb	305:MAME 0.268.1 (Aug 1 2024)	bd2cf353b6d5b63b7f0aa126a29d8a80479e3827

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	svg	0	640	202	60.000000	7756800	640	0	640	202	0	202	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
novag_9304-010053_6433258b46f.u1	32768	bfc39f4b	dc96440c070e903772f4485757443dd690e92120	maincpu	0	good	no
bk301_26601.u2	32768	648ebe8f	2883f962a0bf17426fd809b9f2c01ce3dec0df1b	eprom	0	good	no
nvip.svg	36256	3373e0d5	25bfbf0405017388c30f4529106baccb4723bc6b	screen	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Hitachi H8/325	26601712
audio	speaker	Speaker
audio	dac	1-Bit DAC

device_ref

tag	name
:maincpu	h8325
:maincpu:intc	h8325_intc
:maincpu:port1	h8_digital_port
:maincpu:port2	h8_digital_port
:maincpu:port3	h8_digital_port
:maincpu:port4	h8_digital_port
:maincpu:port5	h8_digital_port
:maincpu:port6	h8_digital_port
:maincpu:port7	h8_digital_port
:maincpu:timer8_0	h8_timer8_channel
:maincpu:timer8_1	h8_timer8_channel
:maincpu:timer16	h8_timer16
:maincpu:timer16:0	h8325_timer16_channel
:maincpu:sci0	h8_sci
:maincpu:sci1	h8_sci
:nvram	nvram
:lcd_pwm	pwm_display
:screen	screen
:rs232	rs232
:speaker	speaker
:dac	dac

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		24		no

port, analog

port_tag	analog_masks
:BATT
:IN.0
:IN.1
:IN.2
:LOCK
:POWER

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
rs232	terminal	serial_terminal	no
rs232	sunkbd	sunkbd_adaptor	no
rs232	votraxtnt	serial_votraxtnt	no
rs232	rs_printer	rs_serial_printer	no
rs232	dec_loopback	dec_rs232_loopback	no
rs232	h19	serial_heath_h19	no
rs232	ie15	ie15_terminal	no
rs232	null_modem	null_modem	no
rs232	keyboard	serial_keyboard	no
rs232	patch	rs232_patch_box	no
rs232	swtpc8212	swtpc8212_terminal	no
rs232	printer	serial_printer	no
rs232	scorpion	scorpion_ic	no
rs232	loopback	rs232_loopback	no
rs232	mockingboard	mockingboardd	no
rs232	msystems_mouse	rs232_mouse_hle_msystems	no
rs232	nss_tvi	nss_tvinterface	no
rs232	rs232_sync_io	rs232_sync_io	no
rs232	pty	pseudo_terminal	no

configuration

Battery Status

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Battery Status	BATT	128

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low	0	no
Normal	128	yes

Keyboard Lock

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Keyboard Lock	LOCK	128

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no
