Savant II - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
savant2	novag/savant.cpp		no	no	no	yes	Savant II	1982	Novag Industries / Intelligent Heuristic Programming	savant	savant

snap

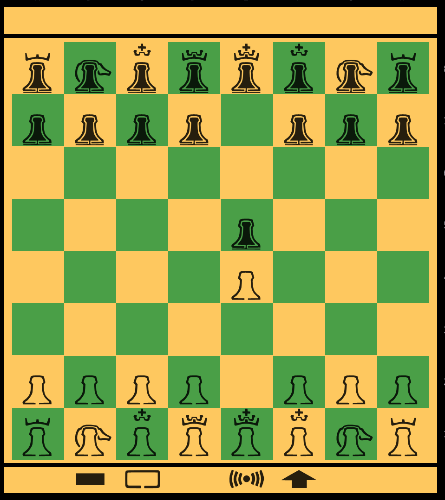

Savant II png snap

Savant II jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
savant2	35271	29/12/2025 11:31:40	445	500	96	96	0	Format24bppRgb	305:MAME 0.214 (Sep 26 2019)	96955252bdeeeac19808901b119e632c9191a2ba

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	svg	0	958	1080	60.000000	62078400	958	0	958	1080	0	1080	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
5605_1f_orange.u13	8192	0f24fd37	b9426b53623d2a98aa2b3099010a7579b0f51db5	maincpu	0	good	no	5605_1f_orange.u13
5606_1g_white.u14	8192	e8b2eddd	5f148a3c1c2cd099bd19a48d972a01e5e26ef2ff	maincpu	2000	good	no	5606_1g_white.u14
5607_1e_blue.u15	8192	a07f845a	e45218fdf955777e571a71ae9d501567b760a3c0	maincpu	4000	good	no	5607_1e_blue.u15
c2m040_savant_red.u17	8192	0025afb4	4f1b63754ed1cc6d765165ec217556b5e7705df6	maincpu	8000	good	no
sl90547.u29	2048	6fbf2aa0	18e673ba5b806b397dd3d350525b5467c25a0d94	mcu	0	good	no	sl90547.u29
savant.svg	764183	c3adac84	e534aa0a3d339b5351a44aa0507c1ae6af8e1d75	screen	0	good	no	savant.svg

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	6000000
cpu	mcu	Fairchild F8	2000000
audio	speaker	Speaker
audio	dac	1-Bit DAC

device_ref

tag	name
:maincpu	z80
:mcu	f8
:psu	f38t56_psu
:board	sensorboard
:nvram	nvram
:lcd1	hlcd0538
:lcd2	hlcd0539
:screen	screen
:display	pwm_display
:speaker	speaker
:dac	dac

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		24		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:LIGHT
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.11
:board:RANK.12
:board:RANK.13
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

configuration

LCD Light

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
LCD Light	LIGHT	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
