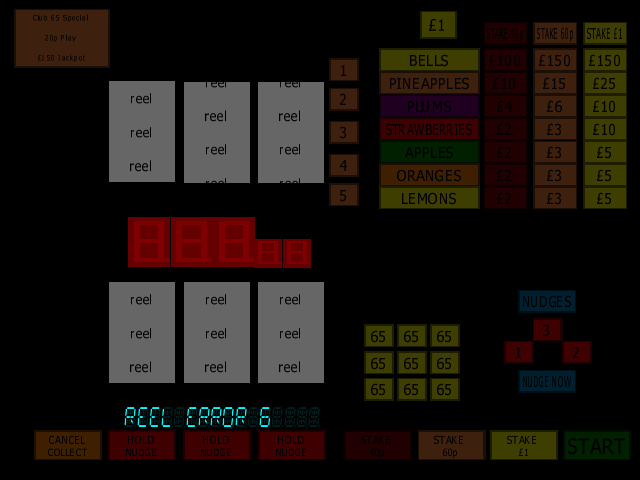

Club 65 Special (Bellfruit) (set 3, Protocol) (Scorpion 1) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sc1cl65cp	bfm/bfm_sc1.cpp		no	no	yes	yes	Club 65 Special (Bellfruit) (set 3, Protocol) (Scorpion 1)	198?	BFM	sc1cl65	sc1cl65

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
39370714.p2	32768	cb9f944f	49955a968264f3d963317f5c772629d9bbdd33f7	maincpu	0	good	no
club-six-five-special_dat_ac_200pnd_rot_20po_ass.bin	32768	83a0253f	a9b463e2aa87a736f88c5e71f233ff9d6a8b25b4	maincpu	8000	good	no
club-six-five-special_snd_a.bin	65536	915802cd	5bca3a80199a6534e084a5cf4337da4e9c48f45c	upd	0	good	no
club-six-five-special_snd_b.bin	65536	b3b230d8	022e95f38b14922137222805c0bec7498c5956cc	upd	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	4000000
audio	mono	Speaker
audio	aysnd	AY-3-8912A PSG	1000000
audio	upd	NEC uPD7759	640000

device_ref

name
mc6809
watchdog
bfm_bd1
speaker
generic_latch_8
ay8912
nvram
stepper
stepper
stepper
stepper
stepper
stepper
meters
upd7759

sound

channels
1

input

players	coins	service	tilt
1	4	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
only_buttons		7		no

port, analog

port_tag	analog_masks
:STROBE0
:STROBE1
:STROBE2
:STROBE3
:STROBE4
:STROBE5
:STROBE6
:STROBE7

dipswitch

DIL01

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL01	STROBE6	1

location

name	number	inverted
DIL	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

DIL02

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL02	STROBE6	2

location

name	number	inverted
DIL	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

DIL03

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL03	STROBE6	4

location

name	number	inverted
DIL	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Coin Acceptor

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Acceptor	STROBE6	8

location

name	number	inverted
DIL	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Mars	0	yes
Sentinel	8	no

DIL05

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL05	STROBE6	16

location

name	number	inverted
DIL	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

Coin Lockout

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Lockout	STROBE6	32

location

name	number	inverted
DIL	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Cashpot Frequency?

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cashpot Frequency?	STROBE6	64

location

name	number	inverted
DIL	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
High	0	yes
Low	64	no

DIL08

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL08	STROBE6	128

location

name	number	inverted
DIL	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

DIL09

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL09	STROBE7	1

location

name	number	inverted
DIL	9	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Coin Jam Alarm

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Jam Alarm	STROBE7	2

location

name	number	inverted
DIL	10	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

DIL11

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL11	STROBE7	4

location

name	number	inverted
DIL	11	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

DIL12

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL12	STROBE7	8

location

name	number	inverted
DIL	12	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

DIL13

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL13	STROBE7	16

location

name	number	inverted
DIL	13	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

Payout Percentage?

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Percentage?	STROBE7	224

location

name	number	inverted
DIL	14	no
DIL	15	no
DIL	16	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
72%	96	no
75%	32	no
78%	0	yes
81%	128	no
85%	192	no
