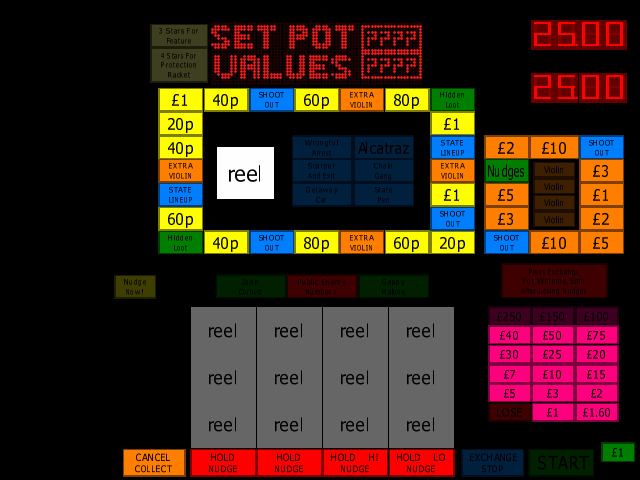

Club Public Enemy No.1 (set 2, UK) (Scorpion 2/3) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sc2cpe4	bfm/bfm_sc2.cpp		no	no	yes	yes	Club Public Enemy No.1 (set 2, UK) (Scorpion 2/3)	1996	BFM	sc2cpe	sc2cpe

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
95750273.p1	65536	950da13c	2c544e06112969f7914a5b4fd15e6b0dfedf6b0b	maincpu	0	good	no
95000569.bin	65536	64014f73	67d44db91944738fcadc38bfd0d2b7c0536adb9a	dm01:matrix	0	good	no
95004012.p1	524288	30d1f22a	73cb2d12b090841a12a2ed21653248f41d02e125	upd	0	good	no
issue2.ic20	279	ea1cc3a1	cfee5d65beecc02c1a7fdc8d772b601600bdd283	plds	0	good	no	issue2.ic20

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	8000000
cpu	dm01:matrix	Motorola MC6809	8000000
audio	mono	Speaker
audio	ymsnd	YM2413 OPLL	3579545
audio	upd	NEC uPD7759	640000

device_ref

name
mc6809
watchdog
speaker
ym2413
upd7759
nvram
nvram
bfm_dm01
mc6809
stepper
stepper
stepper
stepper
stepper
stepper
meters

sound

channels
1

input

players	coins	service	tilt
1	8	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
only_buttons		6		no

port, analog

port_tag	analog_masks
:COINS
:STROBE0
:STROBE1
:STROBE10
:STROBE11
:STROBE2
:STROBE3
:STROBE4
:STROBE5
:STROBE6
:STROBE7
:STROBE8
:STROBE9

dipswitch

Coin play

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin play	STROBE10	1

location

name	number	inverted
DIL	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi coin	0	yes
Single coin	1	no

CashPot Freq

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
CashPot Freq	STROBE10	2

location

name	number	inverted
DIL	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
High	0	yes
Low	2	no

DIL08

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL08	STROBE10	4

location

name	number	inverted
DIL	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Coin Jam Alarm

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Jam Alarm	STROBE10	8

location

name	number	inverted
DIL	10	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

DIL11

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL11	STROBE10	16

location

name	number	inverted
DIL	11	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

DIL12

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL12	STROBE11	1

location

name	number	inverted
DIL	12	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

DIL13

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL13	STROBE11	2

location

name	number	inverted
DIL	13	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Percentage setting

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Percentage setting	STROBE11	28

location

name	number	inverted
DIL	14	no
DIL	15	no
DIL	16	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
72%	12	no
75%	4	no
78%	0	yes
81%	16	no
85%	24	no

PERCENTAGE KEY

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PERCENTAGE KEY	STROBE6	7

location

name	number	inverted
STROBE6	1	no
STROBE6	2	no
STROBE6	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No key	0	no
Key 1	1	no
Key 2	2	no
Key 3	3	no
Key 4	4	no
Key 5	5	no
Key 6	6	no
Key 7	7	yes

DIL02

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL02	STROBE9	2

location

name	number	inverted
DIL	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Attract Hi/Lo reel

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Attract Hi/Lo reel	STROBE9	4

location

name	number	inverted
DIL	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	no
On	0	yes

Acceptor type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Acceptor type	STROBE9	8

location

name	number	inverted
DIL	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Mars	0	yes
Sentinel	8	no

DIL05

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL05	STROBE9	16

location

name	number	inverted
DIL	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no
