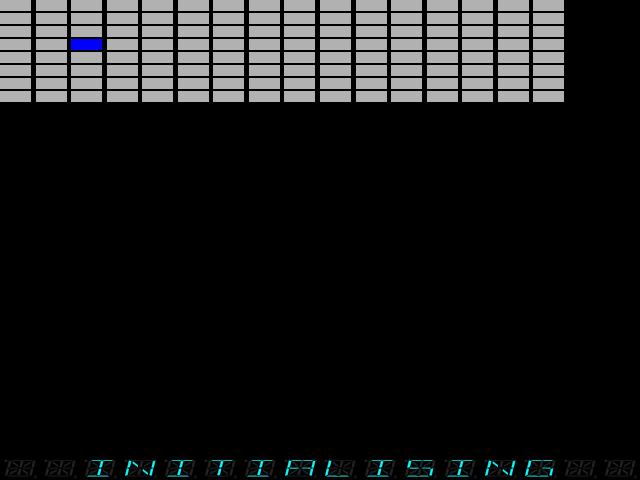

Spotted Dick (Global) (v3.1) (Scorpion 2/3) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sc2dick	bfm/bfm_sc2.cpp		no	no	yes	yes	Spotted Dick (Global) (v3.1) (Scorpion 2/3)	199?	Global

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
spot3-1n.p1	65536	794cec5b	91ba4fcc459194fcf89f27e9c687cbdb8a10bb78	maincpu	0	good	no
global-spotted-dick_snd.bin	1048576	f2c66aab	6fe94a193779c91711588365591cf42d197cb7b9	upd	0	good	no
issue2.ic20	279	ea1cc3a1	cfee5d65beecc02c1a7fdc8d772b601600bdd283	plds	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	8000000
audio	mono	Speaker
audio	upd	NEC uPD7759	640000
audio	ymsnd	YM2413 OPLL	3579545

device_ref

tag	name
:maincpu	mc6809
:watchdog	watchdog
:vfd0	bfm_bd1
:vfd1	bfm_bd1
:mono	speaker
:upd	upd7759
:ymsnd	ym2413
:nvram	nvram
:e2ram	nvram
:reel0	stepper
:reel1	stepper
:reel2	stepper
:reel3	stepper
:reel4	stepper
:reel5	stepper
:meters	meters

sound

channels
1

input

players	coins	service	tilt
1	5	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		6		no

port, analog

port_tag	analog_masks
:COINS
:STROBE0
:STROBE1
:STROBE10
:STROBE11
:STROBE2
:STROBE3
:STROBE4
:STROBE5
:STROBE6
:STROBE7
:STROBE8
:STROBE9

dipswitch

DIL06

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL06	STROBE10	1

location

name	number	inverted
DIL	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

DIL07

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL07	STROBE10	2

location

name	number	inverted
DIL	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

DIL08

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL08	STROBE10	4

location

name	number	inverted
DIL	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

DIL10

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL10	STROBE10	8

location

name	number	inverted
DIL	10	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

DIL11

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL11	STROBE10	16

location

name	number	inverted
DIL	11	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

DIL12

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL12	STROBE11	1

location

name	number	inverted
DIL	12	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

DIL13

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL13	STROBE11	2

location

name	number	inverted
DIL	13	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

DIL14

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL14	STROBE11	4

location

name	number	inverted
DIL	14	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

DIL15

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL15	STROBE11	8

location

name	number	inverted
DIL	15	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

DIL16

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL16	STROBE11	16

location

name	number	inverted
DIL	16	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

PERCENTAGE KEY

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PERCENTAGE KEY	STROBE6	7

location

name	number	inverted
STROBE6	1	no
STROBE6	2	no
STROBE6	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No key	0	no
Key 1	1	no
Key 2	2	no
Key 3	3	no
Key 4	4	no
Key 5	5	no
Key 6	6	no
Key 7	7	yes

DIL02

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL02	STROBE9	2

location

name	number	inverted
DIL	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

DIL03

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL03	STROBE9	4

location

name	number	inverted
DIL	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

DIL04

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL04	STROBE9	8

location

name	number	inverted
DIL	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

DIL05

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIL05	STROBE9	16

location

name	number	inverted
DIL	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

clones

name	description
sc2dick2eu	Spotted Dick (Global) (v?.? Euro unencrypted) (Scorpion 2/3)
sc2dick2e	Spotted Dick (Global) (v?.? Euro) (Scorpion 2/3)
sc2dick2p	Spotted Dick (Global) (v1.5 Protocol ) (Scorpion 2/3)
sc2dick2	Spotted Dick (Global) (v1.5) (Scorpion 2/3)
sc2dick1	Spotted Dick (Global) (v2.2) (Scorpion 2/3)
sc2dickp	Spotted Dick (Global) (v3.1 Protocol) (Scorpion 2/3)
