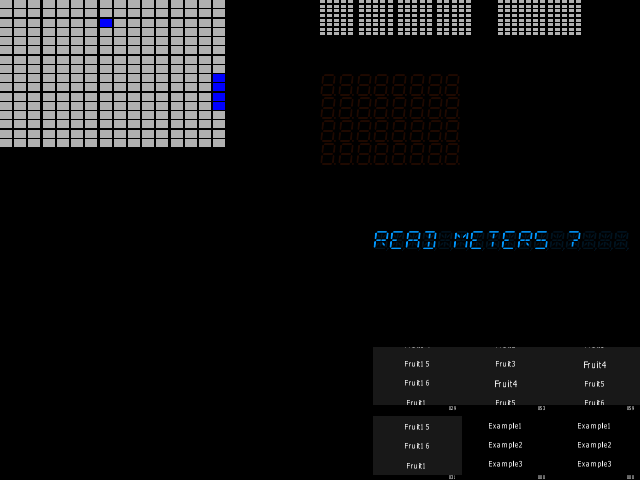

Golden Grid (V1.0) (Qps) (Scorpion 4) (set 2) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sc4ggrida	bfm/bfm_sc4.cpp		no	no	no	yes	Golden Grid (V1.0) (Qps) (Scorpion 4) (set 2)	200?	Qps	sc4ggrid	sc4ggrid

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
95408320.odd	524288	e03bfaa5	a85b3198fede56182d4c6a8f66737a43620ad94a	maincpu	1	good	no
95408321.evn	524288	84270b86	c78f4c939810bd83832a3bb54e6bf51b5393c741	maincpu	0	good	no
95008346.bin	936043	1ec79154	d6aff554e882e6f689caed383db79c752c9e672b	ymz	0	good	no	95008346.bin

chip

type	tag	name	clock
cpu	maincpu	MC68307	16000000
audio	mono	Speaker
audio	ymz	Yamaha YMZ280B PCMD8	16000000

device_ref

name
mc68307
mc68681
duart_channel
duart_channel
speaker
nvram
mc68681
duart_channel
duart_channel
bfm_bda
ymz280b
sec
stepper
stepper
stepper
stepper

sound

channels
1

input

players	coins	service	tilt
1	6	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
mahjong		30		no
hanafuda		6		no

port, analog
