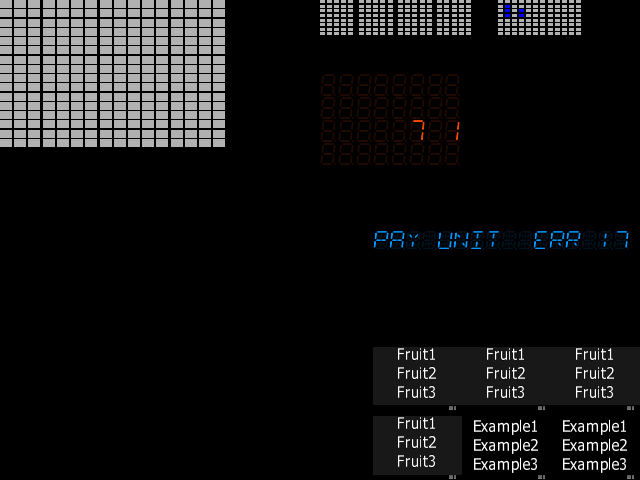

Magic Circle (011) (Qps) (Scorpion 4) (set 2) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sc4magcik	bfm/bfm_sc4.cpp		no	no	no	yes	Magic Circle (011) (Qps) (Scorpion 4) (set 2)	200?	Qps	sc4magci	sc4magci

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
95415684.odd	524288	d34e389b	11dd8424e2d22c390621eb423d6cc0d142eb54f3	maincpu	1	good	no
95415685.evn	524288	de571d3a	95cc43cf09480c457c22087bd696d00ebb439e70	maincpu	0	good	no
95008480.bin	804934	025a1417	6f522e71b4707829c98f77551f7cd4f2910f15b5	ymz	0	good	no	95008480.bin

chip

type	tag	name	clock
cpu	maincpu	MC68307	16000000
audio	mono	Speaker
audio	ymz	Yamaha YMZ280B PCMD8	16000000

device_ref

name
mc68307
mc68681
duart_channel
duart_channel
speaker
nvram
mc68681
duart_channel
duart_channel
bfm_bda
ymz280b
sec
stepper
stepper
stepper
stepper
stepper
stepper

sound

channels
1

input

players	coins	service	tilt
1	6	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
mahjong		30		no
hanafuda		6		no

port, analog

port_tag	analog_masks
:IN-0
:IN-1
:IN-10
:IN-11
:IN-16
:IN-17
:IN-18
:IN-19
:IN-2
:IN-20
:IN-3
:IN-4
:IN-5
:IN-6
:IN-7
:IN-8
:IN-9
:IN-COIN
