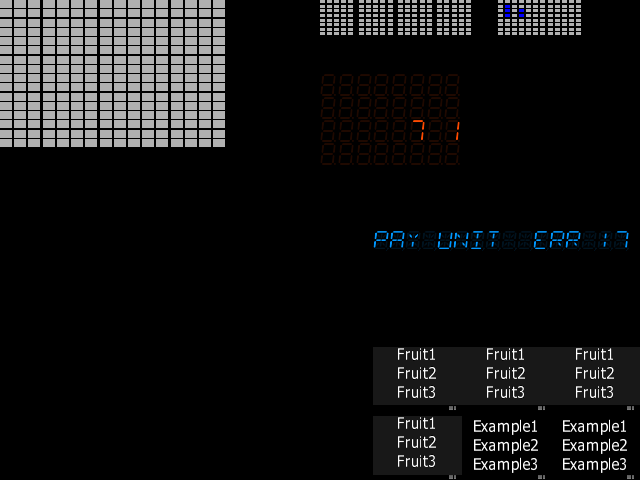

Magic Circle (034) (Qps) (Scorpion 4) (set 2) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sc4magciu	bfm/bfm_sc4.cpp		no	no	no	yes	Magic Circle (034) (Qps) (Scorpion 4) (set 2)	200?	Qps	sc4magci	sc4magci

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
95415906.odd	524288	bbd3bf5f	beafcf49ce5cf1db7419df9e08cc3435f01ede74	maincpu	1	good	no
95415907.evn	524288	bc5450c8	ec5d634bfb1cc54bb98a309d3d03996ef3c65e60	maincpu	0	good	no
95008480.bin	804934	025a1417	6f522e71b4707829c98f77551f7cd4f2910f15b5	ymz	0	good	no	95008480.bin

chip

type	tag	name	clock
cpu	maincpu	MC68307	16000000
audio	mono	Speaker
audio	ymz	Yamaha YMZ280B PCMD8	16000000

device_ref

name
mc68307
mc68681
duart_channel
duart_channel
speaker
nvram
mc68681
duart_channel
duart_channel
bfm_bda
ymz280b
sec
stepper
stepper
stepper
stepper
stepper
stepper

sound

channels
1

input

players	coins	service	tilt
1	6	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
mahjong		30		no
hanafuda		6		no

port, analog

port_tag	analog_masks
:IN-0
:IN-1
:IN-10
:IN-11
:IN-16
:IN-17
:IN-18
:IN-19
:IN-2
:IN-20
:IN-3
:IN-4
:IN-5
:IN-6
:IN-7
:IN-8
:IN-9
:IN-COIN
