Mephisto Schachakademie - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
schachak	saitek/chessac.cpp		no	no	no	yes	Mephisto Schachakademie	1997	Saitek	chessac	chessac

snap

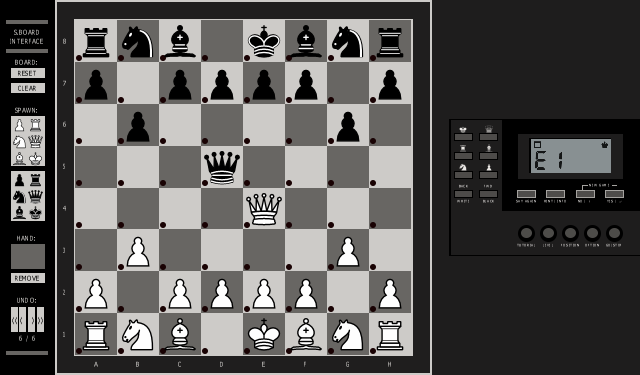

Mephisto Schachakademie png snap

Mephisto Schachakademie jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
schachak	33605	29/12/2025 11:31:43	640	375	96	96	0	Format24bppRgb	305:MAME 0.265.0 (Apr 25 2024)	745e3dd5d8187494ff8f5c0a1feac15ac50b2ede

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	svg	0	384	160	60.000000	3686400	384	0	384	160	0	160	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
97_saitek_86165400831_hd6433214a08f.u1	32768	29d06d6a	08b6f4093b240b0a34d9da67c9acffc576ba1d2d	maincpu	0	good	no	97_saitek_86165400831_hd6433214a08f.u1
adpcm.u2	4194304	21608a97	42f16cab961f1c53a649a7d630bb96304208e850	adpcm	0	good	no
adpcm.u1	2097152	03ed8eaf	44c6de8414b943044dcb8c20e43b40701d1ebc85	adpcm	400000	good	no
gk2000.svg	68501	80554c49	88f06ec8f403eaaf7cbce4cc84807b5742ce7108	screen	0	good	no	gk2000.svg

chip

type	tag	name	clock
cpu	maincpu	Hitachi H8/3214	16000000
audio	speaker	Speaker
audio	okim6588	OKI MSM6588 ADPCM Recorder	4000000

device_ref

tag	name
:maincpu	h83214
:maincpu:intc	h8_intc
:maincpu:port1	h8_digital_port
:maincpu:port2	h8_digital_port
:maincpu:port3	h8_digital_port
:maincpu:port4	h8_digital_port
:maincpu:port5	h8_digital_port
:maincpu:port6	h8_digital_port
:maincpu:port7	h8_digital_port
:maincpu:timer8_0	h8_timer8_channel
:maincpu:timer8_1	h8_timer8_channel
:maincpu:timer8_2	h8_timer8_channel
:maincpu:timer16	h8_timer16
:maincpu:timer16:0	h8325_timer16_channel
:maincpu:sci0	h8_sci
:maincpu:sci1	h8_sci
:maincpu:watchdog	h8_watchdog
:board	sensorboard
:lcd_pwm	pwm_display
:screen	screen
:led_pwm	pwm_display
:speaker	speaker
:okim6588	okim6588

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		17		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.11
:board:RANK.12
:board:RANK.13
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
