Scorpio 68000 - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
scorpio68	novag/diablo.cpp		no	no	no	yes	Scorpio 68000	1991	Novag Industries / Intelligent Heuristic Programming

snap

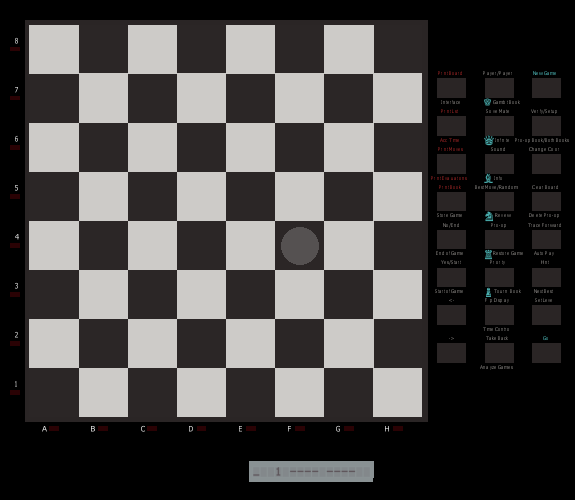

Scorpio 68000 png snap

Scorpio 68000 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
scorpio68	16518	29/12/2025 11:31:44	575	500	96	96	0	Format24bppRgb	305:MAME 0.198 (May 30 2018)	76a8eea4180c055433340d963e0453b48713b758

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	lcd	0	97	10	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
s_evn_904.u3	32768	a8f63245	0ffdc6eb8ecad730440b0bfb2620fb00820e1aea	maincpu	0	good	no
s_odd_c18.u2	32768	4f033319	fce228b1705b7156d4d01ef92b22a875d0f6f321	maincpu	1	good	no
502.u4	32768	553a5c8c	ccb5460ff10766a5ca8008ae2cffcff794318108	maincpu	10000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	16000000
audio	mono	Speaker
audio	beeper	Beep	1024

device_ref

tag	name
:maincpu	m68000
:irq_clock	clock
:nvram	nvram
:board	sensorboard
:screen	screen
:palette	palette
:hd44780	hd44780
:display	pwm_display
:mono	speaker
:beeper	beep
:acia	mos6551
:acia:clock	clock
:rs232	rs232

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		24		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:IN.3
:IN.4
:IN.5
:IN.6
:IN.7
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.11
:board:RANK.12
:board:RANK.13
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
rs232	terminal	serial_terminal	no
rs232	sunkbd	sunkbd_adaptor	no
rs232	votraxtnt	serial_votraxtnt	no
rs232	rs_printer	rs_serial_printer	no
rs232	dec_loopback	dec_rs232_loopback	no
rs232	h19	serial_heath_h19	no
rs232	ie15	ie15_terminal	no
rs232	null_modem	null_modem	no
rs232	keyboard	serial_keyboard	no
rs232	patch	rs232_patch_box	no
rs232	swtpc8212	swtpc8212_terminal	no
rs232	printer	serial_printer	no
rs232	scorpion	scorpion_ic	no
rs232	loopback	rs232_loopback	no
rs232	mockingboard	mockingboardd	no
rs232	msystems_mouse	rs232_mouse_hle_msystems	no
rs232	nss_tvi	nss_tvinterface	no
rs232	rs232_sync_io	rs232_sync_io	no
rs232	pty	pseudo_terminal	no

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
