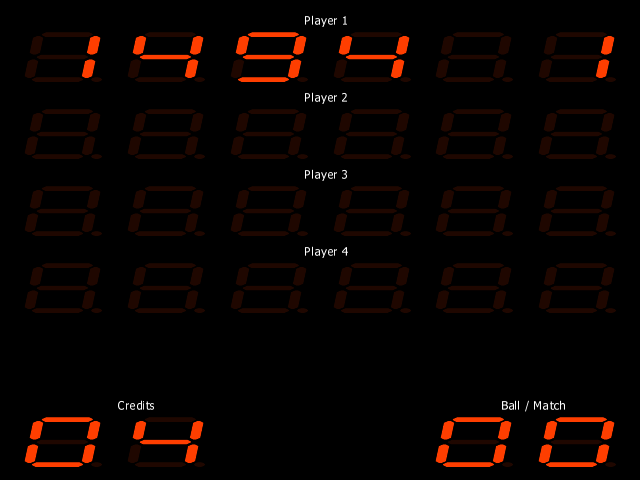

Scorpion (T-1) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
scrpn_t1	pinball/s6.cpp	genpin	no	no	yes	yes	Scorpion (T-1)	1980	Williams	scrpn_l1	scrpn_l1

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
gamerom.716	2048	881109a9	53d4275c76b47b68a74209fe660d943a51e90eca	maincpu	0	good	no	gamerom.716
green1.716	2048	2145f8ab	ddf63208559a3a08d4e88327c55426b0eed27654	maincpu	1000	good	no	green1.716
green2a.716	2048	16621eec	14e1cf5f7227860a3219b2b79fa66dcf252dce98	maincpu	1800	good	no
sound1.716	2048	f4190ca3	ee234fb5c894fca5876ee6dc7ea8e89e7e0aec9c	s6sound:audiocpu	4800	good	no	sound1.716

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6808	3580000
cpu	s6sound:cpu	Motorola MC6802	3580000
audio	mechvol	Speaker
audio	samples	Samples
audio	mono	Speaker
audio	s6sound	Williams System 6 Sound Board
audio	s6sound:dac	MC1408 DAC
audio	s6sound:hc	HC-55516

device_ref

name
m6808
speaker
samples
pia6821
pia6821
pia6821
pia6821
nvram
speaker
wmss6
m6802
mc1408
hc55516
pia6821

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

input

players	coins	service	tilt
2	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad	1	56		no
keypad	2	1		no

port, analog

port_tag	analog_masks
:DIAGS
:DS1
:DS2
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7
:s6sound:S6

dipswitch

Diagnostic

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Diagnostic	DS1	112

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	112	yes
SW8 - Zero Audit Tables	96	no
SW7 - Reset to Defaults	80	no
SW6 - Auto Diagnostic Test	48	no

Speech

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Speech	s6sound:S6	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	no
On	0	yes

Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sounds	s6sound:S6	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Tones	0	no
Synth	64	yes
