Star Diamond - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sdiamond	novag/sdiamond.cpp		no	no	no	yes	Star Diamond	2003	Perfect Technology / Intelligent Heuristic Programming

snap

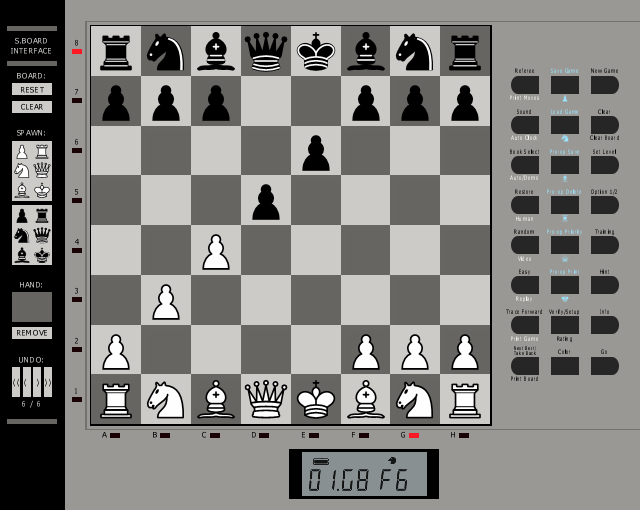

Star Diamond png snap

Star Diamond jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
sdiamond	49504	29/12/2025 11:31:44	640	510	96	96	0	Format24bppRgb	305:MAME 0.264.0 (Mar 27 2024)	2ac6e7ecfb462b455d2a9692a6fa4c36f9fc61a6

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	svg	0	384	134	60.000000	3087360	384	0	384	134	0	134	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
39vf400a.ic3	524288	ee9a4fee	b86e5efa5b7b9ddbe9fe1dabfe8cbc2bc40809b8	maincpu	0	good	no
sapphire2.svg	72533	34944b61	4a0536ac07790cced9f9bf15522b17ebc375ff8a	screen	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Hitachi H8S/2312	25000000
audio	speaker	Speaker
audio	dac	1-Bit DAC

device_ref

tag	name
:maincpu	h8s2312
:maincpu:intc	h8s_intc
:maincpu:adc	h8_adc_2319
:maincpu:dtc	h8_dtc
:maincpu:port1	h8_digital_port
:maincpu:port2	h8_digital_port
:maincpu:port3	h8_digital_port
:maincpu:port4	h8_digital_port
:maincpu:porta	h8_digital_port
:maincpu:portb	h8_digital_port
:maincpu:portc	h8_digital_port
:maincpu:portd	h8_digital_port
:maincpu:porte	h8_digital_port
:maincpu:portf	h8_digital_port
:maincpu:portg	h8_digital_port
:maincpu:timer8_0	h8h_timer8_channel
:maincpu:timer8_1	h8h_timer8_channel
:maincpu:timer16	h8_timer16
:maincpu:timer16:0	h8s_timer16_channel
:maincpu:timer16:1	h8s_timer16_channel
:maincpu:timer16:2	h8s_timer16_channel
:maincpu:timer16:3	h8s_timer16_channel
:maincpu:timer16:4	h8s_timer16_channel
:maincpu:timer16:5	h8s_timer16_channel
:maincpu:sci0	h8_sci
:maincpu:sci1	h8_sci
:maincpu:watchdog	h8_watchdog
:nvram	nvram
:board	sensorboard
:lcd_pwm	pwm_display
:screen	screen
:led_pwm	pwm_display
:rs232	rs232
:speaker	speaker
:dac	dac

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		24		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:IN.3
:POWER
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.11
:board:RANK.12
:board:RANK.13
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
rs232	terminal	serial_terminal	no
rs232	sunkbd	sunkbd_adaptor	no
rs232	votraxtnt	serial_votraxtnt	no
rs232	rs_printer	rs_serial_printer	no
rs232	dec_loopback	dec_rs232_loopback	no
rs232	h19	serial_heath_h19	no
rs232	ie15	ie15_terminal	no
rs232	null_modem	null_modem	no
rs232	keyboard	serial_keyboard	no
rs232	patch	rs232_patch_box	no
rs232	swtpc8212	swtpc8212_terminal	no
rs232	printer	serial_printer	no
rs232	scorpion	scorpion_ic	no
rs232	loopback	rs232_loopback	no
rs232	mockingboard	mockingboardd	no
rs232	msystems_mouse	rs232_mouse_hle_msystems	no
rs232	nss_tvi	nss_tvinterface	no
rs232	rs232_sync_io	rs232_sync_io	no
rs232	pty	pseudo_terminal	no

configuration

Battery Status

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Battery Status	IN.3	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low	1	no
Normal	0	yes

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
