MCS-85 System Design Kit - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sdk85	intel/sdk85.cpp		no	no	no	yes	MCS-85 System Design Kit	1977	Intel

snap

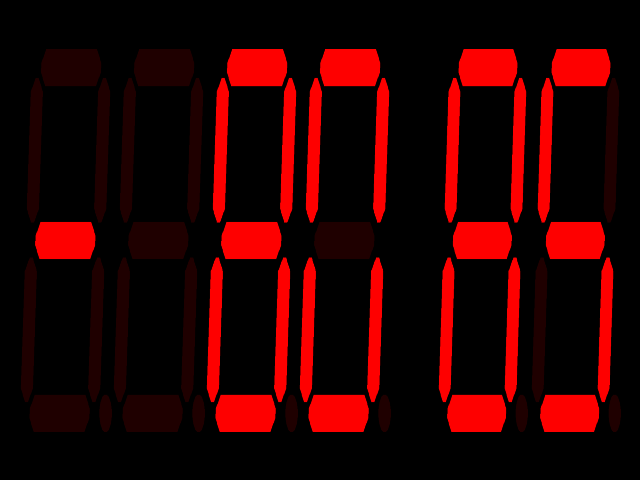

MCS-85 System Design Kit png snap

MCS-85 System Design Kit jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
sdk85	13706	05/03/2026 22:21:01	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	7699a3bf8b1eff6d32c82829ce0db1e4694079f4

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	yes	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
sdk85.a14	2048	9d5a983f	54e218560fbec009ac3de5cfb64b920241ef2eeb	romio	0	good	no		default
mastermind.a14	2048	36b694ae	4d8a5ae5d10e8f72a6e349c7eeaf1aa00c4e45e1	romio	0	good	no		mastermind

chip

type	tag	name	clock
cpu	maincpu	Intel 8085A	6144000

softwarelist

tag	name	status	filter
rom_list	sdk85	original

device_ref

tag	name
:maincpu	i8085a
:romio	i8355
:expromio	sdk85_romexp
:ramio	i8155
:expramio	i8155
:kdc	i8279
:tty	rs232
:rom_list	software_list

biosset

name	description	default
default	Default	no
mastermind	Mastermind	no

sound

channels
0

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
romimage	expromio	sdk85_rom			romimage	rom

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
romimage	expromio	sdk85_rom			bin

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		24		no

port, analog

port_tag	analog_masks
:INTR
:X0
:X1
:X2

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
expromio
tty	terminal	serial_terminal	no
tty	sunkbd	sunkbd_adaptor	no
tty	votraxtnt	serial_votraxtnt	no
tty	rs_printer	rs_serial_printer	no
tty	dec_loopback	dec_rs232_loopback	no
tty	h19	serial_heath_h19	no
tty	ie15	ie15_terminal	no
tty	null_modem	null_modem	no
tty	keyboard	serial_keyboard	no
tty	patch	rs232_patch_box	no
tty	swtpc8212	swtpc8212_terminal	no
tty	printer	serial_printer	no
tty	scorpion	scorpion_ic	no
tty	loopback	rs232_loopback	no
tty	mockingboard	mockingboardd	no
tty	msystems_mouse	rs232_mouse_hle_msystems	no
tty	nss_tvi	nss_tvinterface	no
tty	rs232_sync_io	rs232_sync_io	no
tty	pty	pseudo_terminal	no
