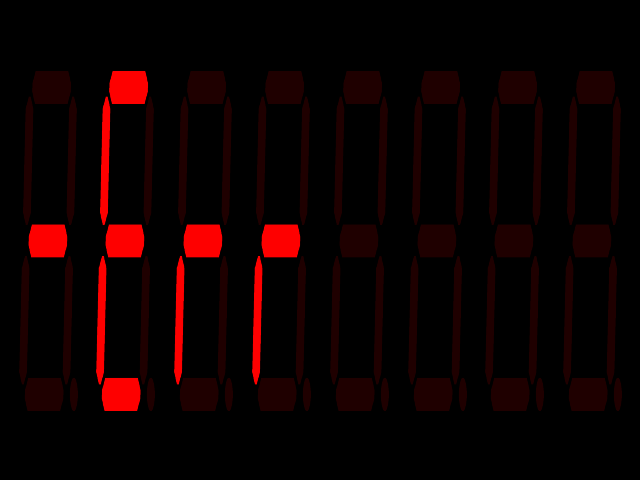

MCS-86 System Design Kit - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sdk86	intel/sdk86.cpp		no	no	no	yes	MCS-86 System Design Kit	1979	Intel

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	yes	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
0456_104531-001.a36	2048	f9c4a809	aea324c3f52dd393f1eed2b856ba11f050a35b93	maincpu	0	good	no		keypad
0457_104532-001.a37	2048	a245ba5c	7f67277f866fca5377cb123e9cc405b5fdfe61d3	maincpu	1	good	no		keypad
0169_102042-001.a27	2048	3f46311a	a97e6861b736f26230b9adbf5cd2576a9f60d626	maincpu	1000	good	no		keypad
0170_102043-001.a30	2048	65924471	5d258695bf585f89179dfa0a113a0eeeabd5ee2b	maincpu	1001	good	no		keypad
0169_102042-001.a36	2048	3f46311a	a97e6861b736f26230b9adbf5cd2576a9f60d626	maincpu	0	good	no		serial
0170_102043-001.a37	2048	65924471	5d258695bf585f89179dfa0a113a0eeeabd5ee2b	maincpu	1	good	no		serial
0456_104531-001.a27	2048	f9c4a809	aea324c3f52dd393f1eed2b856ba11f050a35b93	maincpu	1000	good	no		serial
0457_104532-001.a30	2048	a245ba5c	7f67277f866fca5377cb123e9cc405b5fdfe61d3	maincpu	1001	good	no		serial
0036_101993-001.a12	1024	bb7edbfd	8847f9815c7cb8695986743199673920a7d4390d	proms	0	good	no
0035_101992-001.a22	1024	76aced0c	89fa39473e19d8cb6b65d6430d3d683ae2398fb3	proms	400	good	no
0037_101994-001.a26	1024	d6f33d30	41e794bf202266fa57516403e6a80ebbf6c95fdc	proms	800	good	no
0038_101995-001.a29	1024	3d2c18bc	5e1935cd07fef26b2cf3d8fa7612fe0d8e678c06	proms	c00	good	no

chip

type	tag	name	clock
cpu	maincpu	Intel 8086	4915200

device_ref

name
i8086
i8251
rs232
clock
i8279
i8255
i8255

biosset

name	description	default
keypad	Keypad Monitor	no
serial	Serial Monitor	no

sound

channels
0

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keyboard		24		no

port, analog

port_tag	analog_masks
:X0
:X1
:X2
:X3

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
rs232	terminal	serial_terminal	no
rs232	sunkbd	sunkbd_adaptor	no
rs232	dec_loopback	dec_rs232_loopback	no
rs232	ie15	ie15_terminal	no
rs232	null_modem	null_modem	no
rs232	keyboard	serial_keyboard	no
rs232	patch	rs232_patch_box	no
rs232	swtpc8212	swtpc8212_terminal	no
rs232	printer	serial_printer	no
rs232	scorpion	scorpion_ic	no
rs232	loopback	rs232_loopback	no
rs232	mockingboard	mockingboardd	no
rs232	msystems_mouse	rs232_mouse_hle_msystems	no
rs232	nss_tvi	nss_tvinterface	no
rs232	rs232_sync_io	rs232_sync_io	no
rs232	pty	pseudo_terminal	no
rs232	votraxtnt	serial_votraxtnt	no
rs232	rs_printer	rs_serial_printer	no
