Super Formula (Japan, set 1) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sformula	vsystem/tail2nos.cpp		no	no	no	yes	Super Formula (Japan, set 1)	1989	V-System Co.	tail2nos	tail2nos

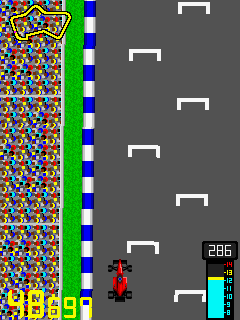

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
sformula	7376	29/12/2025 11:31:44	240	320	96	96	0	Format24bppRgb	305:MAME 0.126u3 (Aug 1 2008)	0c99f875587152518acb4768c756e84547d45d18

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	90	320	240	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
4.ic129	65536	672bf690	b322234b47f20a36430bc03be0b52d9b7f82967b	maincpu	0	good	no
7.ic130	65536	73f0c91c	faf14eb1a210c7330b47b78ca6c6563ea6482b3b	maincpu	1	good	no
v3.ic141	65536	e2e0abad	1a1054bada9654484fe81fe4b4b32af5ab7b53f0	maincpu	20000	good	no	v3.ic141
v6.ic142	65536	069817a7	cca382fe2a49c8c3c84b879a1c30dffff84ef406	maincpu	20001	good	no	v6.ic142
a23.ic96	524288	d851cf04	ac5b366b686c5a037b127d223dc6fe90985eb160	user1	0	good	no	a23.ic96
v5.ic119	65536	a9fe15a1	d90bf40c610ea7daaa338f83f82cdffbae7da08e	user2	0	good	no	v5.ic119
v8.ic120	65536	4fb6a43e	5cddda0029b3b141c88b0c128655d35bb12fa34d	user2	1	good	no	v8.ic120
v2.ic125	32768	920d8920	b8d30903248fee6f985af7fafbe534cfc8c6e829	audiocpu	0	good	no	v2.ic125
v1.ic137	65536	bf35c1a4	a838740e023dc3344dc528324a8dbc48bb98b574	audiocpu	10000	good	no	v1.ic137
a24.ic34	524288	b1e9de43	0144252dd9ed561fbebd4994cccf11f6c87e1825	chars	0	good	no	a24.ic34
o1s.ic18	262144	e27a8eb4	4fcadabf42a1c3deeb6d74d75cdbee802cf16db5	chars	80000	good	no	o1s.ic18
oj1.ic93	262144	39c36b35	a97480696bf6d81bf415737e03cc5324d439ab84	sprites	0	good	no	oj1.ic93
oj2.ic79	262144	77ccaea2	e38175859c75c6d0f2f01752fad6e167608c4662	sprites	40000	good	no	oj2.ic79
osb.ic127	131072	d49ab2f5	92f7f6c8f35ac39910879dd88d2cfb6db7c848c9	ymsnd	0	good	no	osb.ic127

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	audiocpu	Zilog Z80	5000000
audio	speaker	Speaker
audio	ymsnd	YM2608 OPNA	8000000

device_ref

tag	name
:maincpu	m68000
:audiocpu	z80
:acia	acia6850
:com_out	rs232
:com_in	rs232
:acia_clock	clock
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:k051316	k051316
:gga	vsystem_gga
:speaker	speaker
:soundlatch	generic_latch_8
:ymsnd	ym2608

sound

channels
1

input

players	coins	service	tilt
1	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy		2	2	no
stick				no	0	255	10	5

port, analog

port_tag	analog_masks
:AN0	255
:AN1	255
:DSW
:IN0
:IN1

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
com_out	terminal	serial_terminal	no
com_out	sunkbd	sunkbd_adaptor	no
com_out	votraxtnt	serial_votraxtnt	no
com_out	rs_printer	rs_serial_printer	no
com_out	dec_loopback	dec_rs232_loopback	no
com_out	h19	serial_heath_h19	no
com_out	ie15	ie15_terminal	no
com_out	null_modem	null_modem	no
com_out	keyboard	serial_keyboard	no
com_out	patch	rs232_patch_box	no
com_out	swtpc8212	swtpc8212_terminal	no
com_out	printer	serial_printer	no
com_out	scorpion	scorpion_ic	no
com_out	loopback	rs232_loopback	no
com_out	mockingboard	mockingboardd	no
com_out	msystems_mouse	rs232_mouse_hle_msystems	no
com_out	nss_tvi	nss_tvinterface	no
com_out	rs232_sync_io	rs232_sync_io	no
com_out	pty	pseudo_terminal	no
com_in	terminal	serial_terminal	no
com_in	sunkbd	sunkbd_adaptor	no
com_in	votraxtnt	serial_votraxtnt	no
com_in	rs_printer	rs_serial_printer	no
com_in	dec_loopback	dec_rs232_loopback	no
com_in	h19	serial_heath_h19	no
com_in	ie15	ie15_terminal	no
com_in	null_modem	null_modem	no
com_in	keyboard	serial_keyboard	no
com_in	patch	rs232_patch_box	no
com_in	swtpc8212	swtpc8212_terminal	no
com_in	printer	serial_printer	no
com_in	scorpion	scorpion_ic	no
com_in	loopback	rs232_loopback	no
com_in	mockingboard	mockingboardd	no
com_in	msystems_mouse	rs232_mouse_hle_msystems	no
com_in	nss_tvi	nss_tvinterface	no
com_in	rs232_sync_io	rs232_sync_io	no
com_in	pty	pseudo_terminal	no

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default
5 Coins/1 Credit	9	no
4 Coins/1 Credit	8	no
3 Coins/1 Credit	7	no
2 Coins/1 Credit	6	no
6 Coins/4 Credits	11	no
4 Coins/3 Credits	12	no
1 Coin/1 Credit	0	yes
5 Coins/6 Credits	13	no
3 Coins/5 Credits	14	no
3 Coins/4 Credits	10	no
3 Coins/4 Credits	15	no
1 Coin/2 Credits	1	no
1 Coin/3 Credits	2	no
1 Coin/4 Credits	3	no
1 Coin/5 Credits	4	no
1 Coin/6 Credits	5	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default
5 Coins/1 Credit	144	no
4 Coins/1 Credit	128	no
3 Coins/1 Credit	112	no
2 Coins/1 Credit	96	no
6 Coins/4 Credits	176	no
4 Coins/3 Credits	192	no
1 Coin/1 Credit	0	yes
5 Coins/6 Credits	208	no
3 Coins/5 Credits	224	no
3 Coins/4 Credits	160	no
3 Coins/4 Credits	240	no
1 Coin/2 Credits	16	no
1 Coin/3 Credits	32	no
1 Coin/4 Credits	48	no
1 Coin/5 Credits	64	no
1 Coin/6 Credits	80	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	768

location

name	number	inverted
SW2	1	no
SW2	2	no

value

name	value	default
Easy	256	no
Normal	0	yes
Hard	512	no
Hardest	768	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	1024

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1024	no
On	0	yes

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW	2048

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2048	no

Game Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Mode	DSW	4096

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Single	4096	yes
Multiple	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW	8192

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8192	no

Control Panel

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Control Panel	DSW	16384

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Standard	16384	yes
Original	0	no

Country

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Country	DSW	32768

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Domestic	0	yes
Overseas	32768	no
