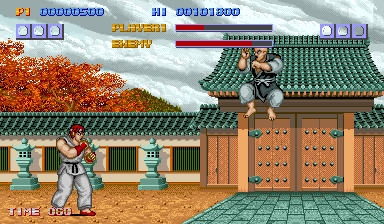

Street Fighter (prototype) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sfp	capcom/sf.cpp		no	no	no	yes	Street Fighter (prototype)	1987	Capcom	sf	sf

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	384	224	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
prg8.2a	131072	d48d06a3	d899771c66c1e7a5caa11f67a1122adb6f0f4d28	maincpu	0	good	no
prg0.2c	131072	e8606c1a	be94203cba733e337993e6f386ff5ce1e76d8913	maincpu	1	good	no
sound.9j	32768	43cd32ae	42e59becde5761eb5d5bc310d2bc690f6f16882a	audiocpu	0	good	no
voice.1g	65536	3f23c180	fb4e3bb835d94a733eacc0b1df9fe19fa1120997	audio2	0	good	no
bkchr.2k	131072	e4d47aca	597ed03e5c8328ec7209282247080c171eaedf86	gfx1	0	good	no
bkchr.1k	131072	5a1cbc1b	ad7bf117a7d1c0ef2aa47e133b0889092a009ae5	gfx1	20000	good	no
bkchr.4k	131072	c351bd48	58131974d378a91f03f8c0bbd2ea384bd4fe501a	gfx1	40000	good	no
bkchr.3k	131072	6bb2b050	d36419dabdc0a90b76e295b746928d9e1e69674a	gfx1	60000	good	no
mchr.1d	131072	ab06a60b	44febaa2ac8f060ed297b69af1fd258164ff565d	gfx2	0	good	no
mchr.1e	131072	d221387d	012dc8c646a6a4b8bf905d859e3465b4bcaaed67	gfx2	20000	good	no
mchr.1g	131072	1e4c1712	543b47a865d11dd91331c0236c5578dbe7549881	gfx2	40000	good	no
mchr.1h	131072	a381f529	7e427894f8440c23c92ce5d1f118b7a1d70b0282	gfx2	60000	good	no
mchr.2d	131072	e52303c4	1ae4979c53e589d9a5e7c0dbbf33b980d10274ac	gfx2	80000	good	no
mchr.2e	131072	23b9a6a1	bf7f67d97cfaa1f4c78f290c7c18e099566709c7	gfx2	a0000	good	no
mchr.2g	131072	1283ac09	229a507e0a1c46b451d8879e690e8557d21d588d	gfx2	c0000	good	no
mchr.2h	131072	cc6bf05c	4e83dd55c88d5b539ab1dcae5bfd16195bcd2565	gfx2	e0000	good	no
b1m.bin	65536	64758232	20d21677b791a7f96afed54b286ee92adb80456d	gfx3	0	good	no
b2m.bin	65536	d958f5ad	0e5c98a24814f5e1e6346dba4cfbd3a3a72ed724	gfx3	10000	good	no
b1k.bin	65536	e766f5fe	ad48a543507a981d844f0e2d5cceb689775b9ad6	gfx3	20000	good	no
b2k.bin	65536	e71572d3	752540bbabf56c883208b132e285b485d4b5b4ee	gfx3	30000	good	no
b1h.bin	65536	8494f38c	8d99ae088bd5b479f10e69b0a960f07d10adc23b	gfx3	40000	good	no
b2h.bin	65536	1fc5f049	bb6d5622247ec32ad044cde856cf67dddc3c732f	gfx3	50000	good	no
b3m.bin	65536	d136802e	84c2a6b2a8bad7e9249b6dce9cbf5301526aa6af	gfx3	e0000	good	no
b4m.bin	65536	b4fa85d3	c15e36000bf68a838eb34c3872e342acbb9c140a	gfx3	f0000	good	no
b3k.bin	65536	40e11cc8	ed469a8629080da88ce6faeb232633f94e2816c3	gfx3	100000	good	no
b4k.bin	65536	5ca9716e	87620083aa6a7697f6faf742ac0e47115af3e0f3	gfx3	110000	good	no
b3h.bin	65536	8c3d9173	08df92d962852f88b42e76dfaf6bb23a80d84657	gfx3	120000	good	no
b4h.bin	65536	a2df66f8	9349704fdb7b0919813cb48d4deacdbbdebb2fee	gfx3	130000	good	no
vram.4d	16384	bfadfb32	8443ad9f02da5fb032017fc0c657b1bdc15e4f27	gfx4	0	good	no
bks1j10.5h	65536	4934aacd	15274ae8b26799e15c7a66ff89ffd386de1659d3	tilerom	0	good	no
bks1j18.3h	65536	551ffc88	4f9213f4e80033f910dd8aae44b2c6d9ba760d61	tilerom	10000	good	no
ms1j10.3g	65536	f92958b8	da8fa64ea9ad27c737225681c49f7c57cc7afeed	tilerom	20000	good	no
ms1j18.5g	65536	89e35dc1	368d0cce3bc39b3762d79df0c023242018fbbcb8	tilerom	30000	good	no
sfb05.bin	256	864199ad	b777df20b19fa7b7536120191df1875101e9d7af	proms	0	good	no
sfb00.bin	256	bd3f8c5d	c31ee9f466f05a21612f5ea29fb8c7c25dc9e011	proms	100	good	no
mb7114h.12j	256	4c734b64	7a122b643bad3e3586821980efff023a63e5a029	proms	200	good	no	mb7114h.12j
mmi-7603.13h	32	06bcda53	fa69b77697bb12aa6012d82ef5b504d3a1d20232	proms	300	good	no	mmi-7603.13h

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	8000000
cpu	audiocpu	Zilog Z80	3579545
cpu	audio2	Zilog Z80	3579545
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	3579545
audio	msm1	OKI MSM5205 ADPCM	384000
audio	msm2	OKI MSM5205 ADPCM	384000

device_ref

name
m68000
z80
z80
screen
gfxdecode
palette
speaker
generic_latch_8
ym2151
msm5205
msm5205

sound

channels
1

input

players	coins	service	tilt
2	2	no	no

control

type	player	ways	reverse	minimum	maximum	sensitivity	keydelta
joy	1	8	no
pedal	1		no	0	255	100	25
joy	2	8	no
pedal	2		no	0	65280	100	25

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:IN0
:IN1
:KICK	255, 65280
:PUNCH	255, 65280
:SYSTEM

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	7

location

name	number	inverted
DSW1.7E	1	no
DSW1.7E	2	no
DSW1.7E	3	no

value

name	value	default
4 Coins/1 Credit	0	no
3 Coins/1 Credit	1	no
2 Coins/1 Credit	2	no
1 Coin/1 Credit	7	yes
1 Coin/2 Credits	6	no
1 Coin/3 Credits	5	no
1 Coin/4 Credits	4	no
1 Coin/6 Credits	3	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	56

location

name	number	inverted
DSW1.7E	4	no
DSW1.7E	5	no
DSW1.7E	6	no

value

name	value	default
4 Coins/1 Credit	0	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	16	no
1 Coin/1 Credit	56	yes
1 Coin/2 Credits	48	no
1 Coin/3 Credits	40	no
1 Coin/4 Credits	32	no
1 Coin/6 Credits	24	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW1	64

location

name	number	inverted
DSW1.7E	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW1	128

location

name	number	inverted
DSW1.7E	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW1	256

location

name	number	inverted
DSW2.13E	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Attract Music

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Attract Music	DSW1	512

location

name	number	inverted
DSW2.13E	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	512	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW1	1024

location

name	number	inverted
DSW2.13E	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1024	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW1	2048

location

name	number	inverted
DSW2.13E	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2048	yes
On	0	no

Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Speed	DSW1	4096

location

name	number	inverted
DSW2.13E	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Slow	0	no
Normal	4096	yes

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW1	8192

location

name	number	inverted
DSW2.13E	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8192	no
On	0	yes

Freeze

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Freeze	DSW1	16384

location

name	number	inverted
DSW2.13E	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16384	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW1	32768

location

name	number	inverted
DSW2.13E	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32768	yes
On	0	no

Game Continuation

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Continuation	DSW2	7

location

name	number	inverted
DSW3.6E	1	no
DSW3.6E	2	no
DSW3.6E	3	no

value

name	value	default
5th Stage Maximum	7	yes
4th Stage Maximum	6	no
3rd Stage Maximum	5	no
2nd Stage Maximum	4	no
1st Stage Maximum	3	no
None	2	no

Round Time Count

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Round Time Count	DSW2	24

location

name	number	inverted
DSW3.6E	4	no
DSW3.6E	5	no

value

name	value	default
100	24	yes
150	16	no
200	8	no
250	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	96

location

name	number	inverted
DSW3.6E	6	no
DSW3.6E	7	no

value

name	value	default
Normal	96	yes
Easy	64	no
Difficult	32	no
Very Difficult	0	no

Buy-In Feature

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Buy-In Feature	DSW2	896

location

name	number	inverted
DSW3.6E	8	no
DSW4.11E	1	no
DSW4.11E	2	no

value

name	value	default
5th Stage Maximum	896	yes
4th Stage Maximum	768	no
3rd Stage Maximum	640	no
2nd Stage Maximum	512	no
1st Stage Maximum	384	no
None	128	no

Number of Countries Selected

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Number of Countries Selected	DSW2	1024

location

name	number	inverted
DSW4.11E	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4	1024	yes
2	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	2048

location

name	number	inverted
DSW4.11E	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2048	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	4096

location

name	number	inverted
DSW4.11E	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4096	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	8192

location

name	number	inverted
DSW4.11E	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8192	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	16384

location

name	number	inverted
DSW4.11E	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16384	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	32768

location

name	number	inverted
DSW4.11E	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32768	yes
On	0	no
