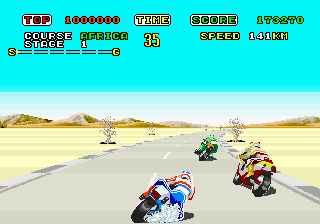

Super Hang-On (Hang-On conversion, Japan, FD1094 317-0039) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
shangonho	sega/segahang.cpp		no	no	no	yes	Super Hang-On (Hang-On conversion, Japan, FD1094 317-0039)	1987	Sega	shangon	shangon

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.054389	6293700	400	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
epr-10865.ic22	32768	98e861dd	f2059f4559893d38d7d781c8599aeb7a5074eec0	maincpu	0	good	no
epr-10862.ic8	32768	d6f058c7	72f25455ed619d988bcceb1cfe39a7e06722c9dc	maincpu	1	good	no
epr-10864.ic20	32768	b3048f44	8e559df140f1ddf307d8430c7976ecbbe8907260	maincpu	10000	good	no
epr-10861.ic6	32768	0a131e14	088a7ff479462a6a5aa1e096805fc50883a1c245	maincpu	10001	good	no
epr-10863.ic18	32768	12ee8716	8e798d23d22f85cd046641184d104c17b27995b2	maincpu	20000	good	no
epr-10860.ic4	32768	155e0cfd	e51734351c887fe3920c881f57abdfbb7d075f57	maincpu	20001	good	no
epr-10859.ic31	65536	a22bc1a2	74b535fb72228807aafe835bfb69e97f58bda12d	subcpu	1	good	no
epr-10857.ic25	65536	064827a3	c72cb799b4535f9faa7f3d37bc4d0763f52f5361	subcpu	0	good	no
epr-10858.ic30	65536	8f8f4af0	1dac21b7df6ec6874d36a07e30de7129b7f7f33a	subcpu	20001	good	no
epr-10856.ic24	65536	000ad595	eb80e798159c09bc5142a7ea8b9b0f895976b0d4	subcpu	20000	good	no
317-0039.key	8192	97b05dd6	c16033021a0fbc8d9759c40deab41d58babdaf90	subcpu:key	0	good	no
epr-10652.38	32768	260286f9	dc7c8d2c6ef924a937328685eed19bda1c8b1819	gfx1	0	good	no	epr-10652.54
epr-10651.23	32768	c609ee7b	c6dacf81cbfe7e5df1f9a967cf571be1dcf1c429	gfx1	8000	good	no	epr-10651.55
epr-10650.7	32768	b236a403	af02b8122794c083a66f2ab35d2c73b84b2df0be	gfx1	10000	good	no	epr-10650.56
epr-10675.22	65536	d6ac012b	305023b1a0a9d84cfc081ffc2ad7578b53d562f2	sprites	1	good	no
epr-10682.13	65536	d9d83250	f8ca3197edcdf53643a5b335c3c044ddc1310cd4	sprites	0	good	no
epr-10676.21	65536	25ebf2c5	abcf673ae4e280417dd9f46d18c0ec7c0e4802ae	sprites	20001	good	no
epr-10683.12	65536	6365d2e9	688e2ba194e859f86cd3486c2575ebae257e975a	sprites	20000	good	no
epr-10677.20	65536	8a57b8d6	df1a31559dd2d1e7c2c9d800bf97526bdf3e84e6	sprites	40001	good	no
epr-10684.11	65536	3aff8910	4b41a49a7f02363424e814b37edce9a7a44a112e	sprites	40000	good	no
epr-10678.19	65536	af473098	a2afaba1cbf672949dc50e407b46d7e9ae183774	sprites	60001	good	no
epr-10685.10	65536	80bafeef	f01bcf65485e60f34e533295a896fca0b92e5b14	sprites	60000	good	no
epr-10679.18	65536	03bc4878	548fc58bcc620204e30fa12fa4c4f0a3f6a1e4c0	sprites	80001	good	no
epr-10686.9	65536	274b734e	906fa528659bc17c9b4744cec52f7096711adce8	sprites	80000	good	no
epr-10680.17	65536	9f0677ed	5964642b70bfad418da44f2d91476f887b021f74	sprites	a0001	good	no
epr-10687.8	65536	508a4701	d17aea2aadc2e2cd65d81bf91feb3ef6923d5c0b	sprites	a0000	good	no
epr-10681.16	65536	b176ea72	7ec0eb0f13398d014c2e235773ded00351edb3e2	sprites	c0001	good	no
epr-10688.7	65536	42fcd51d	0eacb3527dc21746e5b901fcac83f2764a0f9e2c	sprites	c0000	good	no
epr-10866.108	32768	1bbe4fc8	30f7f301e4d10d3b254d12bf3d32e5371661a566	segaic16road	0	good	no
epr-10834a.52	32768	83347dc0	079bb750edd6372750a207764e8c84bb6abf2f79	soundcpu	0	good	no
epr-10835.55	65536	da08ca2b	2c94c127efd66f6cf86b25e2653637818a99aed1	pcm	0	good	no
epr-10836.56	65536	8b10e601	75e9bcdd3f096be9bed672d61064b9240690deec	pcm	10000	good	no
epr-6844.119	8192	e3ec7bd6	feec0fe664e16fac0fde61cf64b401b9b0575323	sprites:zoom	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	subcpu	Hitachi FD1094 Encrypted CPU	10000000
cpu	soundcpu	Zilog Z80	4000000
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	4000000
audio	pcm	Sega PCM	4000000

device_ref

name
m68000
fd1094
i8255
i8255
adc0804
segaic16_video
segaic16_road
gfxdecode
palette
screen
generic_latch_8
sega_hangon_sprite
z80
speaker
ym2151
segapcm

sound

channels
1

input

players	coins	service	tilt
1	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
paddle		1		yes	32	224	100	4
pedal				no	0	255	100	40

port, analog

port_tag	analog_masks
:ADC0	255
:ADC1	255
:ADC2	255
:COINAGE
:DSW
:SERVICE
:UNKNOWN

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	COINAGE	15

location

name	number	inverted
SWA	1	no
SWA	2	no
SWA	3	no
SWA	4	no

value

name	value	default
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	COINAGE	240

location

name	number	inverted
SWA	5	no
SWA	6	no
SWA	7	no
SWA	8	no

value

name	value	default
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	1

location

name	number	inverted
SWB	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	no
On	0	yes

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	6

location

name	number	inverted
SWB	2	no
SWB	3	no

value

name	value	default
Easy	4	no
Normal	6	yes
Hard	2	no
Hardest	0	no

Time Adj.

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Time Adj.	DSW	24

location

name	number	inverted
SWB	4	no
SWB	5	no

value

name	value	default
Easy	16	no
Normal	24	yes
Hard	8	no
Hardest	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	32

location

name	number	inverted
SWB	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	64

location

name	number	inverted
SWB	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	128

location

name	number	inverted
SWB	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
