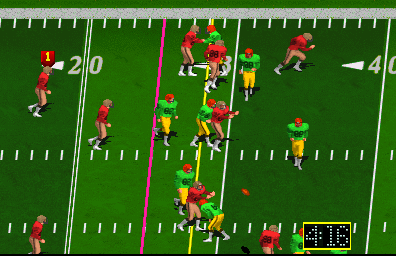

Super High Impact (rev LA1 09/30/91) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
shimpact	midway/midyunit.cpp		no	no	no	yes	Super High Impact (rev LA1 09/30/91)	1991	Midway

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	410	256	54.706840	8000000	506	90	500	289	20	276	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
sl1_super_high_impact_u4_sound_rom.u4	131072	1e5a012c	4077fc266799a01738b7f88e867535f1fbacd557	cvsd:cpu	10000	good	no
sl1_super_high_impact_u19_sound_rom.u19	131072	10f9684e	1fdc5364f87fb65f4f2a438841e0fe847f765aaf	cvsd:cpu	30000	good	no
sl1_super_high_impact_u20_sound_rom.u20	131072	1b4a71c1	74b7b4ae76ebe65f1f46b2117970bfefefbb5344	cvsd:cpu	50000	good	no
la1_super_high_impact_game_rom_u105.u105	131072	f2cf8de3	97428d05208c18a9fcf8f2e3c6ed2bf6441350c3	maindata	c0000	good	no
la1_super_high_impact_game_rom_u89.u89	131072	f97d9b01	d5f39d6a5db23f5efd123cf9da0d09c84893b9c4	maindata	c0001	good	no
la1_super_high_impact_game_rom_u111.u111	262144	80ae2a86	1ff76e3064c7636f6877e426f4a88c094d1a6325	gfx	0	good	no
la1_super_high_impact_game_rom_u112.u112	262144	3ffc27e9	ec337629c17daaa2445fb344e08243de7f09536e	gfx	40000	good	no
la1_super_high_impact_game_rom_u113.u113	262144	01549d00	40604e949cef056f90031850bdb91782135e7ec2	gfx	80000	good	no
la1_super_high_impact_game_rom_u114.u114	262144	a68af319	9ed2e620a952dce26e08d0931f52eaeb638fc14d	gfx	c0000	good	no
la1_super_high_impact_game_rom_u95.u95	262144	e8f56ef5	7cb0b6bad3f0be822ef9b92e6523572e45776969	gfx	200000	good	no
la1_super_high_impact_game_rom_u96.u96	262144	24ed04f9	f4e91640713c0c376861652f3f0db33bff32656d	gfx	240000	good	no
la1_super_high_impact_game_rom_u97.u97	262144	dd7f41a9	a14a285ccc593f8f1d50b0d5574af4845a1e287e	gfx	280000	good	no
la1_super_high_impact_game_rom_u98.u98	262144	23ef65dd	58400c305dfad1de18b84a8c118f72529b507414	gfx	2c0000	good	no
la1_super_high_impact_game_rom_u106.u106	262144	6f5bf337	5b1a0d927302c7e1727976c2d8c612a80b8f1484	gfx	400000	good	no
la1_super_high_impact_game_rom_u107.u107	262144	a8815dad	627d916a4b0ab03a943d123ca0eabd514634ad30	gfx	440000	good	no
la1_super_high_impact_game_rom_u108.u108	262144	d39685a3	84e5da34a9946b954635befd37760683850d310b	gfx	480000	good	no
la1_super_high_impact_game_rom_u109.u109	262144	36e0b2b2	96d76698a09cd884349bf0c4c1b75423b4404432	gfx	4c0000	good	no

chip

type	tag	name	clock
cpu	maincpu	Texas Instruments TMS34010	40000000
cpu	cvsd:cpu	Motorola MC6809E	2000000
audio	speaker	Speaker
audio	cvsd	Williams CVSD Sound Board
audio	cvsd:ym2151	YM2151 OPM	3579545
audio	cvsd:dac	MC1408 DAC
audio	cvsd:cvsd	HC-55516

device_ref

name
tms34010
nvram
palette
screen
speaker
wmscvsd
mc6809e
pia6821
ym2151
mc1408
hc55516

sound

channels
1

input

players	coins	service	tilt
4	4	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	1	8	no
joy	2	1	8	no
joy	3	1	8	no
joy	4	1	8	no

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1
:IN2
:UNK0
:UNK1

dipswitch

Card Dispenser

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Card Dispenser	DSW	1

location

name	number	inverted
DS1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	1	no
Off	0	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	2

location

name	number	inverted
DS1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	4

location

name	number	inverted
DS1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	120

location

name	number	inverted
DS1	5	no
DS1	4	no
DS1	3	no
DS1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	120	yes	DSW	49152	eq	49152
2 Coins/1 Credit	88	no	DSW	49152	eq	49152
2 Coins/1 Credit 4/3	104	no	DSW	49152	eq	49152
2 Coins/1 Credit 4/4	72	no	DSW	49152	eq	49152
ECA	112	no	DSW	49152	eq	49152
1DM/1 Credit 6/5	120	yes	DSW	49152	eq	16384
1DM/1 Credit 7/5	88	no	DSW	49152	eq	16384
1DM/1 Credit 8/5	104	no	DSW	49152	eq	16384
1DM/1 Credit	72	no	DSW	49152	eq	16384
ECA	112	no	DSW	49152	eq	16384
5F/2 Credits 10/5	120	yes	DSW	49152	eq	32768
5F/2 Credits	88	no	DSW	49152	eq	32768
5F/1 Credit 10/3	104	no	DSW	49152	eq	32768
5F/1 Credit	72	no	DSW	49152	eq	32768
ECA	112	no	DSW	49152	eq	32768
Free Play	64	no

Players

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Players	DSW	128

location

name	number	inverted
DS1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4	128	yes
2	0	no

Test Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Test Switch	DSW	256

location

name	number	inverted
DS2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	512

location

name	number	inverted
DS2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	512	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	1024

location

name	number	inverted
DS2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1024	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	2048

location

name	number	inverted
DS2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2048	yes
On	0	no

Coin Counters

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Counters	DSW	4096

location

name	number	inverted
DS2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
One	4096	yes
Two	0	no

Power-Up Test

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Power-Up Test	DSW	8192

location

name	number	inverted
DS2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	8192	yes

Country

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Country	DSW	49152

location

name	number	inverted
DS2	2	no
DS2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
USA	49152	yes
German	16384	no
French	32768	no
Unused	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	IN1	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no
