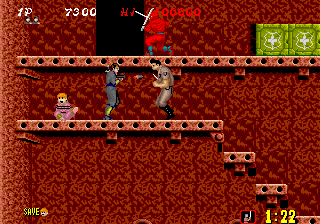

Shinobi (set 4, System 16B) (MC-8123B 317-0054) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
shinobi4	sega/segas16b.cpp		no	no	no	yes	Shinobi (set 4, System 16B) (MC-8123B 317-0054)	1987	Sega	shinobi	shinobi

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.054389	6293700	400	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
epr-11360.a7	131072	b1f67ab9	83eddd1ef3fbe58f1f8e8d57229fabf1907fc371	maincpu	0	good	no
epr-11359.a5	131072	0f0306e1	eebe7c88e5f665d1d0920fb9b545e20b05be9b52	maincpu	1	good	no
mpr-11363.a14	131072	40914168	cf0508e8c852c24ec3d2fc4a4013aec631d2271f	gfx1	0	good	no
mpr-11364.a15	131072	e63649a4	042dded1ff964889571f63d2642b2b21b75f9763	gfx1	20000	good	no
mpr-11365.a16	131072	1ef55d20	314590881a2f18339b7b9c16010e408aa0164e04	gfx1	40000	good	no
mpr-11366.b1	131072	319ede73	c48ba4694ff677f30cc1ced3a3ad11c0feb1122d	sprites	1	good	no
mpr-11368.b5	131072	0377d7ce	14f9674c142b78bf8b458beccfef93cc3e722c03	sprites	0	good	no
mpr-11367.b2	131072	1d06c5c7	3a44f5a2058b96f212930c2e838eda1ce1036818	sprites	40001	good	no
mpr-11369.b6	131072	d751d2a2	3659948beacfc8dde5c50775859aa3fed537f768	sprites	40000	good	no
epr-11377.a10	32768	0fb6af34	ae9da18bd2db317ed96c5f642f90cc1eba60ba99	soundcpu	0	good	no
mpr-11362.a11	131072	256af749	041bd007ea7708c6d69f07865828b9bd17a139f5	soundcpu	10000	good	no
317-0054.key	8192	39fd4535	93bbb139d2d5acc6a1e338d92077e79a5e880b2e	soundcpu:key	0	good	no
315-5298.b9	235	39b47212	432b47aee5ecbf08a8a6dc2f8379c816feb86328	plds	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	soundcpu	MC-8123	5000000
audio	mono	Speaker
audio	ym2151	YM2151 OPM	4000000
audio	upd	NEC uPD7759	640000
audio	netlist	Netlist Sound Device

device_ref

name
m68000
mc8123
nvram
sega_315_5195
gfxdecode
palette
screen
sega_sys16b_sprite
segaic16_video
speaker
ym2151
upd7759
netlist_sound
nl_stream_in
nl_stream_in
nl_stream_in
nl_stream_out

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:P1
:P2
:SERVICE
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright	0	yes
Cocktail	1	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW2	12

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2	8	no
3	12	yes
5	4	no
Free Play	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	48

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	32	no
Normal	48	yes
Hard	16	no
Hardest	0	no

Enemy's Bullet Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Enemy's Bullet Speed	DSW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Slow	64	yes
Fast	0	no

Language

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Language	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Japanese	128	yes
English	0	no
