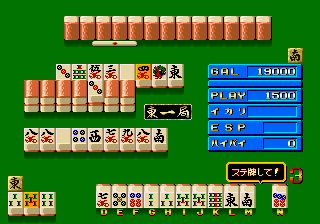

Sukeban Jansi Ryuko (set 1, System 16A, FD1089B 317-5021) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sjryuko1	sega/segas16a.cpp		no	no	no	yes	Sukeban Jansi Ryuko (set 1, System 16A, FD1089B 317-5021)	1987	White Board	sjryuko	sjryuko

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.000000	5376240	342	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
epr-12251.43	32768	1af3cd0b	a14907bf8da8010bacaf35893037310f1bb8d375	maincpu	0	good	no
epr-12249.26	32768	743d467d	0eaccd3fd5c64513a86d23928a1469557c972f57	maincpu	1	good	no
epr-12252.42	32768	7ae309d6	399c2a4d8b64df03e02b95cc635ee041254b7683	maincpu	10000	good	no
epr-12250.25	32768	52c40f19	0606943248b2433b70a7e4ad3408d4d3957756c9	maincpu	10001	good	no
12224-95.b9	32768	eac17ba1	6dfea3383b7c9c47bc0943a8d86fc89efcb85ae2	gfx1	0	good	no	epr-12224-95.b9
12225-94.b10	32768	2310fc98	c40ca62edbe5cfa2f84811426233412cd5bd398c	gfx1	8000	good	no	epr-12225-94.b10
12226-93.b11	32768	210e6999	5707cc613060b0070a822850b9afab8293f64dd7	gfx1	10000	good	no	epr-12226-93.b11
12232-10.b1	65536	0adec62b	cd798a7994cea73bffe78feac4e692d755074b1d	sprites	1	good	no	epr-12232-10.b1
12236-11.b5	65536	286b9af8	085251b8ce8b7fadf15b8ebd5872f0337adf142b	sprites	0	good	no	epr-12236-11.b5
12233-17.b2	65536	3e45969c	804f3714c97877c6f0caf458f8af38e8d8179d73	sprites	10001	good	no	epr-12233-17.b2
12237-18.b6	65536	e5058e96	4a1f663c7c87fe7177a52017da3f2f55568bd863	sprites	10000	good	no	epr-12237-18.b6
12234-23.b3	65536	8c8d54ef	a8adee4f6ad8079af88cf471af42ace8ac8d093e	sprites	20001	good	no	epr-12234-23.b3
12238-24.b7	65536	7ada3304	e402442e73d93a1b174e3fcab6a97fb2d450994c	sprites	20000	good	no	epr-12238-24.b7
12235-29.b4	65536	fa45d511	41e343b039e8633b2469a5eaf5e4196b682f0d01	sprites	30001	good	no	epr-12235-29.b4
12239-30.b8	65536	91f70c8b	c3ac9cf248540d948f7845eb17ec95e1be8d00bb	sprites	30000	good	no	epr-12239-30.b8
epr-12227.12	32768	5b12409d	b25d6fa004461426f6358ab70fd071239c78e949	soundcpu	0	good	no
7751.bin	1024	6a9534fc	67ad94674db5c2aab75785668f610f6f4eccd158	upd7751	0	good	no
epr-12228.1	32768	6b2e6aef	64ae6ec327c32cdb877a493ebfe11af15e2388ac	upd7751data	0	good	no
epr-12229.2	32768	b7aa015c	0ef023f73722e27180c271b207a5097220f40b5e	upd7751data	8000	good	no
epr-12230.4	32768	d0f61fd4	e6f29459d7395122f26957f56e38926aebd9004c	upd7751data	10000	good	no
epr-12231.5	32768	780bdc57	8c859043bba389292604385b88c743728180f9a9	upd7751data	18000	good	no
317-5021.key	8192	8e40b2ab	f3e2d70a17ac5270bec586cc67b2b8ba14bf53cf	maincpu:key	0	good	no	317-5021.key

chip

type	tag	name	clock
cpu	maincpu	Hitachi FD1089B Encrypted CPU	10000000
cpu	soundcpu	Zilog Z80	4000000
cpu	upd7751	NEC uPD7751	6000000
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	4000000
audio	dac	8-Bit R-2R DAC

device_ref

name
fd1089b
z80
upd7751
i8243
nvram
watchdog
i8255
screen
sega_sys16a_sprite
segaic16_video
gfxdecode
palette
speaker
generic_latch_8
ym2151
dac_8bit_r2r

sound

channels
1

input

players	coins	service	tilt
1	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
mahjong		23		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:MJ0
:MJ1
:MJ2
:MJ3
:MJ4
:MJ5
:P1
:P2
:SERVICE
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit	0	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
None	5	no
None	4	no
None	3	no
None	2	no
None	1	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit	0	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
None	80	no
None	64	no
None	48	no
None	32	no
None	16	no

CPU Level

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
CPU Level	DSW2	3

location

name	number	inverted
SW2	1	no
SW2	2	no

value

name	value	default
Weak	3	yes
Medium Weak	2	no
Medium Strong	1	no
Strong	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	4

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	no
On	0	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	8

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	16

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	32

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
