Sphinx Legend - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
slegend	newcrest/legend.cpp		no	no	no	yes	Sphinx Legend	1992	National Telecommunication System

snap

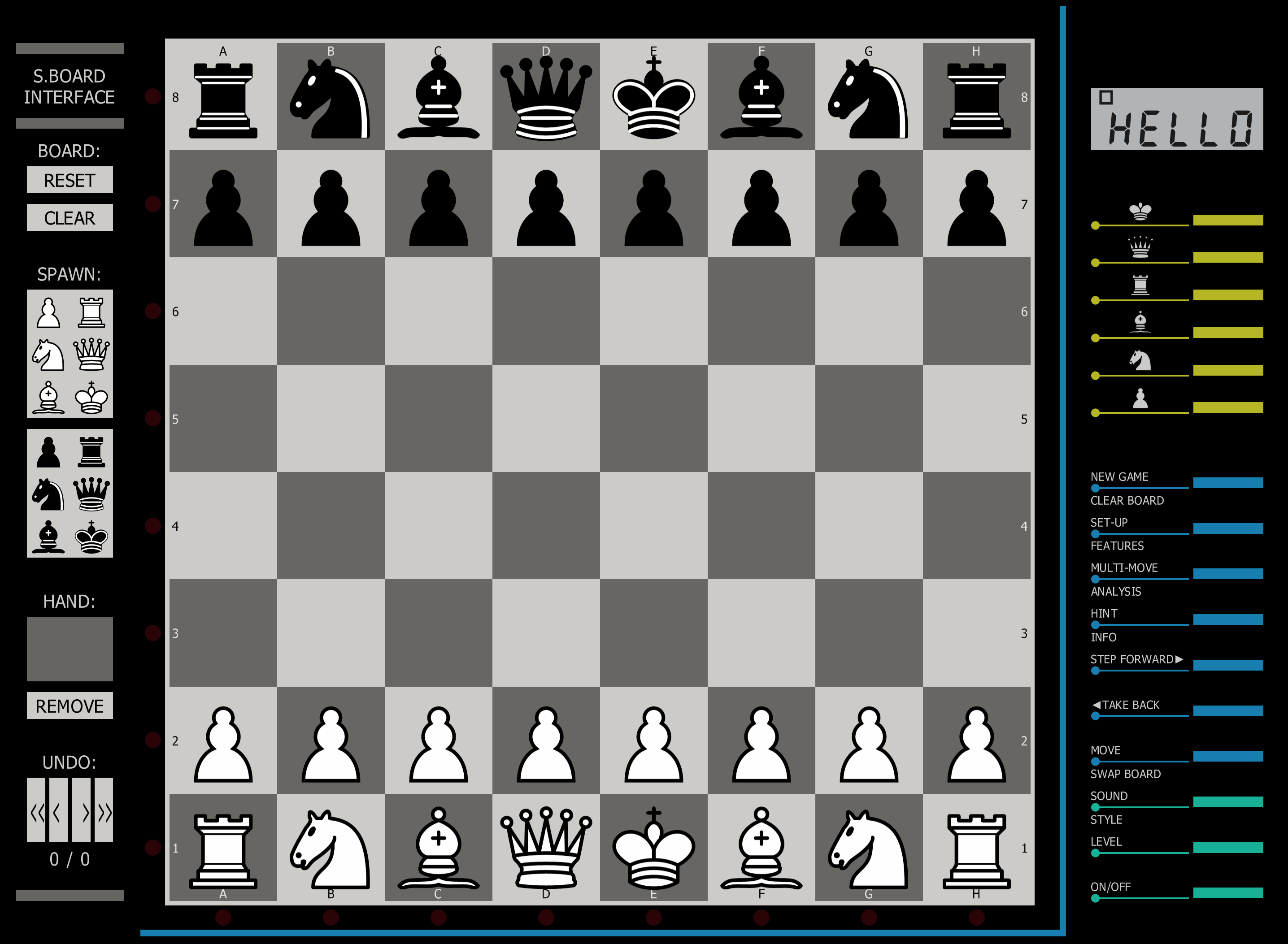

Sphinx Legend png snap

Sphinx Legend jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
slegend	355081	30/01/2026 10:17:25	2872	2106	96	96	0	Format24bppRgb	305:MAME 0.285 (mame0285)	7b3cfb743695e6d97207b7c7adc8e7773efa2970

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	svg	0	384	139	60.000000	3202560	384	0	384	139	0	139	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
1992_ntsl_301603808_hd6433258a44f	32768	107ffbe8	73c7b2a377e802ad6d4de5a440843c71f11f95e9	maincpu	0	good	no
slegend.svg	109652	6840c49e	a9c91143c5bea5ab41fe323e719da4a46ab9d631	screen	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Hitachi H8/325	20000000
audio	speaker	Speaker
audio	dac	1-Bit DAC

device_ref

tag	name
:maincpu	h8325
:maincpu:intc	h8325_intc
:maincpu:port1	h8_digital_port
:maincpu:port2	h8_digital_port
:maincpu:port3	h8_digital_port
:maincpu:port4	h8_digital_port
:maincpu:port5	h8_digital_port
:maincpu:port6	h8_digital_port
:maincpu:port7	h8_digital_port
:maincpu:timer8_0	h8_timer8_channel
:maincpu:timer8_1	h8_timer8_channel
:maincpu:timer16	h8_timer16
:maincpu:timer16:0	h8325_timer16_channel
:maincpu:sci0	h8_sci
:maincpu:sci1	h8_sci
:board	sensorboard
:lcd_pwm	pwm_display
:screen	screen
:led_pwm	pwm_display
:speaker	speaker
:dac	dac

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		16		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.11
:board:RANK.12
:board:RANK.13
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

configuration

Battery Status

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Battery Status	IN.2	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low	0	no
Normal	1	yes

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
