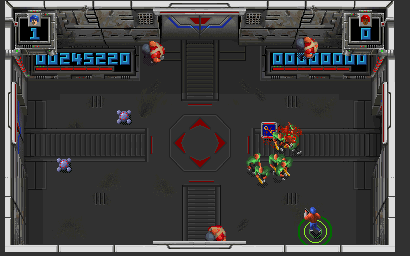

Smash T.V. (rev 8.00) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
smashtv	midway/midyunit.cpp		no	no	no	yes	Smash T.V. (rev 8.00)	1990	Williams

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	410	256	54.706840	8000000	506	90	500	289	20	276	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
sl2_smash_tv_sound_rom_u4.u4	65536	29d3f6c8	8a90cdff54f59ddb7dba521504d880515a59df08	cvsd:cpu	10000	good	no
sl2_smash_tv_sound_rom_u19.u19	65536	ac5a402a	c476018062126dc3936caa2c328de490737165ec	cvsd:cpu	30000	good	no
sl2_smash_tv_sound_rom_u20.u20	65536	875c66d9	51cdad62ec57e69bba6fcf14e59841ec628dec11	cvsd:cpu	50000	good	no
la8_smash_tv_game_rom_u105.u105	131072	48cd793f	7d0d9edccf0610f57e40934ab33e32315369656d	maindata	c0000	good	no
la8_smash_tv_game_rom_u89.u89	131072	8e7fe463	629332be706cda26f8b170b8e2877355230119ee	maindata	c0001	good	no
la1_smash_tv_game_rom_u111.u111	131072	72f0ba84	2e925b3cdd3c8e14046b3948d82f0f3cde3c22c5	gfx	0	good	no
la1_smash_tv_game_rom_u112.u112	131072	436f0283	ec33a8942c0fc326db885e08dad9346ec5a63360	gfx	20000	good	no
la1_smash_tv_game_rom_u113.u113	131072	4a4b8110	9f1881d1d2682764ab85aebd685d97eb8b4afe46	gfx	40000	good	no
la1_smash_tv_game_rom_u95.u95	131072	e864a44b	40eb8e11a183f4f82dc8decb36aaeded9cd1bc26	gfx	200000	good	no
la1_smash_tv_game_rom_u96.u96	131072	15555ea7	4fefc059736ca424dc05a08cb55b9acf9e31228b	gfx	220000	good	no
la1_smash_tv_game_rom_u97.u97	131072	ccac9d9e	a43d70d1a0bbd377f0fc539c2e8b725f7079f463	gfx	240000	good	no
la1_smash_tv_game_rom_u106.u106	131072	5c718361	6178b1d53411f24d5a5a01559727e300cd27d587	gfx	400000	good	no
la1_smash_tv_game_rom_u107.u107	131072	0fba1e36	17038cf35a72678bba149a632f1ad1b80cc3a38c	gfx	420000	good	no
la1_smash_tv_game_rom_u108.u108	131072	cb0a092f	33cbb87b4be1eadb1f3624ef5e218e65109fa3eb	gfx	440000	good	no
a_5346_3044_1.u8	815	2ef0c217	547d264fb5e80685f0bdccb7fec9fda4db7ad540	plds	0	good	no
a_5346_3044_5.u52	815	e13d6403	3ab6e5d75fb9b91775be47f5f0d7bf56c5553fd9	plds	400	good	no
a_5346_3044_6.u53	815	b165a4f9	a25f77841770e1a357390476e40849e940fad877	plds	800	good	no
a_5346_3044_7.u65	815	ecbd3bf2	004e9e9e8c634c94209be52582a49fccb9358990	plds	c00	good	no

chip

type	tag	name	clock
cpu	maincpu	Texas Instruments TMS34010	40000000
cpu	cvsd:cpu	Motorola MC6809E	2000000
audio	speaker	Speaker
audio	cvsd	Williams CVSD Sound Board
audio	cvsd:ym2151	YM2151 OPM	3579545
audio	cvsd:dac	MC1408 DAC
audio	cvsd:cvsd	HC-55516

device_ref

name
tms34010
nvram
palette
screen
speaker
wmscvsd
mc6809e
pia6821
ym2151
mc1408
hc55516

sound

channels
1

input

players	coins	service	tilt
2	3	yes	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
doublejoy	1		8	no					8
doublejoy	2		8	no					8

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1
:IN2
:UNK0
:UNK1

dipswitch

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	63

location

name	number	inverted
DS1	8	no
DS1	7	no
DS1	6	no
DS1	5	no
DS1	4	no
DS1	3	no

value

name	value	default
USA 1	63	yes
USA 2	62	no
USA 3	61	no
German 1	60	no
German 2	59	no
German 3	58	no
France 1	57	no
France 2	56	no
France 3	55	no
Swiss 1	54	no
Italy	53	no
U.K. 1	52	no
U.K. 2	51	no
U.K. ECA	50	no
Spain 1	49	no
Australia 1	48	no
Japan 1	47	no
Japan 2	46	no
Austria 1	45	no
Belgium 1	44	no
Belgium 2	43	no
Sweden	42	no
New Zealand 1	41	no
Netherlands	40	no
Finland	39	no
Norway	38	no
Denmark 1	37	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	64

location

name	number	inverted
DS1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	128

location

name	number	inverted
DS1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	256

location

name	number	inverted
DS2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	512

location

name	number	inverted
DS2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	512	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	1024

location

name	number	inverted
DS2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1024	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	2048

location

name	number	inverted
DS2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2048	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	4096

location

name	number	inverted
DS2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4096	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	8192

location

name	number	inverted
DS2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8192	yes
On	0	no

Rotary Joystick Enable?

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Rotary Joystick Enable?	DSW	16384

location

name	number	inverted
DS2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16384	yes
On	0	no

Test Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Test Switch	DSW	32768

location

name	number	inverted
DS2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32768	yes
On	0	no
