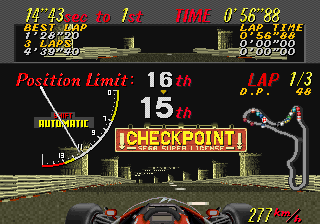

Super Monaco GP (Japan, Rev B) (bootleg of FD1094 317-0124a set) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
smgpjd	sega/segaxbd.cpp		no	no	no	yes	Super Monaco GP (Japan, Rev B) (bootleg of FD1094 317-0124a set)	1989	bootleg	smgp	smgp

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
mainpcb:screen	raster	0	320	224	59.637405	6250000	400	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
bootleg_epr-12432b.58	131072	1c46c4de	32711dfb8209317c6c2fc0fbb8f04b907123a4dc	mainpcb:maincpu	0	good	no
bootleg_epr-12433b.63	131072	ae8a4942	53f52e6431353d611ac6a3520af053f955b79b37	mainpcb:maincpu	1	good	no
epr-12441a.20	131072	2c9599c1	79206f38c2976bd9299ed37bf62ac26dd3fba801	mainpcb:subcpu	0	good	no	epr-12576a.20
epr-12442a.29	131072	77a5ec16	b8cf6a3f12689d89bbdd9fb39d1cb7d1a3c10602	mainpcb:subcpu	1	good	no
epr-12429.154	65536	5851e614	3dc97237ede2c6125e92ea6efc68a748d0ec69be	mainpcb:gfx1	0	good	no	epr-12429.154
epr-12430.153	65536	05e00134	8baaa80815d5dabd38dc8600e357975b96d23b95	mainpcb:gfx1	10000	good	no	epr-12430.153
epr-12431.152	65536	35572f4a	d66456ecf7b59f81736fb873c553926b56bb3977	mainpcb:gfx1	20000	good	no	epr-12431.152
mpr-12425.90	131072	14bf2a15	84db3ac09e4a8fe470ac051d8d5de1814b48bc72	mainpcb:sprites	0	good	no	mpr-12425.90
mpr-12426.94	131072	28b60dc0	ad69d449434853445a076319a55a29014217a100	mainpcb:sprites	1	good	no	mpr-12426.94
mpr-12427.98	131072	0a367928	bcb558b7c23906397e66a7f046b09eb5036c0888	mainpcb:sprites	2	good	no	mpr-12427.98
mpr-12428.102	131072	efa80ad5	9bc7c3fb60cc076f29a0af487d58e5b48f1c4b06	mainpcb:sprites	3	good	no	mpr-12428.102
mpr-12421.91	131072	25f46140	ea75e364cf52636d100158f79be627e36da8c327	mainpcb:sprites	80000	good	no	mpr-12421.91
mpr-12422.95	131072	cb51c8f6	5af56ae1916c3212b8d5b9e4bccbbe1916694f89	mainpcb:sprites	80001	good	no	mpr-12422.95
mpr-12423.99	131072	0be9818e	637a8201416e73d53f7e2502ea0a5277e43c167d	mainpcb:sprites	80002	good	no	mpr-12423.99
mpr-12424.103	131072	0ce00dfc	3b1990977ec7ad4c3bea66527707cff2cd8d5a98	mainpcb:sprites	80003	good	no	mpr-12424.103
mpr-12417.92	131072	a806eabf	1a61a2135d92b42ee131fd3240bc8a17a96696ab	mainpcb:sprites	100000	good	no	mpr-12417.92
mpr-12418.96	131072	ed1a0f2b	1aa87292ca0465fa129d6be81d95dbb77332ecab	mainpcb:sprites	100001	good	no	mpr-12418.96
mpr-12419.100	131072	ce4568cb	1ed66e74ce94d41593b498827d9cc243f775d4ba	mainpcb:sprites	100002	good	no	mpr-12419.100
mpr-12420.104	131072	679442eb	f88ef0219497f955d8db6783f3636dad52928f46	mainpcb:sprites	100003	good	no	mpr-12420.104
epr-12413.93	131072	2f1693df	ba1e654a1b5fae661b0dae4a8ed04ff50fb546a2	mainpcb:sprites	180000	good	no
epr-12414.97	131072	c78f3d45	665750907ed11c89c2ea5c410eac2808445131ae	mainpcb:sprites	180001	good	no
epr-12415.101	131072	6080e9ed	eb1b871453f76e6a65d20fa9d4bddc1c9f940b4d	mainpcb:sprites	180002	good	no
epr-12416.105	131072	6f1f2769	d00d26cd1052d4b46c432b6b69cb2d83179d52a6	mainpcb:sprites	180003	good	no
epr-12436.17	65536	16ec5f0a	307b7388b5c36fd4bc2a61f7941db44858e03c5c	mainpcb:soundcpu	0	good	no	epr-12436.17
mpr-12437.11	131072	a1c7e712	fa7fa8c39690ae5dab8b28af5aeed5ffae2cd6de	mainpcb:pcm	0	good	no	mpr-12437.11
mpr-12438.12	131072	6573d46b	c4a4a0ea35250eff28a5bfd5e9cd372f52fd1308	mainpcb:pcm	20000	good	no	mpr-12438.12
mpr-12439.13	131072	13bf6de5	92228a05ec33d606491a1da98c4989f69cddbb49	mainpcb:pcm	40000	good	no	mpr-12439.13
epr-12535.8	65536	80453597	d3fee7bb4a8964f5cf1cdae80fc3dde06c947839	mainpcb:soundcpu2	0	good	no	epr-12535.8
mpr-12437.20	131072	a1c7e712	fa7fa8c39690ae5dab8b28af5aeed5ffae2cd6de	mainpcb:pcm2	0	good	no	mpr-12437.11
mpr-12438.21	131072	6573d46b	c4a4a0ea35250eff28a5bfd5e9cd372f52fd1308	mainpcb:pcm2	20000	good	no	mpr-12438.12
mpr-12439.22	131072	13bf6de5	92228a05ec33d606491a1da98c4989f69cddbb49	mainpcb:pcm2	40000	good	no	mpr-12439.13
epr-12587.14	32768	2afe648b	b5bf86f3acbcc23c136185110acecf2c971294fa	mainpcb:commcpu	0	good	no	epr-12587.14
epr-12505.8	32768	5020788a	ed6d1dfb8b6a62d17469e3d09a5b5b864c6b486c	mainpcb:motorcpu	0	good	no	epr-12505.8

chip

type	tag	name	clock
cpu	mainpcb:maincpu	Motorola MC68000	12500000
cpu	mainpcb:subcpu	Motorola MC68000	12500000
cpu	mainpcb:soundcpu	Zilog Z80	4000000
cpu	mainpcb:soundcpu2	Zilog Z80	4000000
cpu	mainpcb:commcpu	Zilog Z80	8000000
cpu	mainpcb:motorcpu	Zilog Z80	8000000
audio	mainpcb:speaker	Speaker
audio	mainpcb:ymsnd	YM2151 OPM	4000000
audio	mainpcb:pcm	Sega PCM	4000000
audio	mainpcb:rear	Speaker
audio	mainpcb:pcm2	Sega PCM	4000000

device_ref

name
segaxbd_pcb_smgp
m68000
m68000
z80
nvram
nvram
mb3773
sega_315_5248
sega_315_5248
sega_315_5249
sega_315_5249
sega_315_5250
sega_315_5250
cxd1095
cxd1095
adc0804
gfxdecode
palette
screen
sega_xboard_sprite
segaic16_video
segaic16_road
speaker
ym2151
segapcm
z80
z80
z80
speaker
segapcm

sound

channels
2

feature

type	status	overall
lan	unemulated

input

players	coins	service	tilt
1	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
paddle		2		no	56	200	100	4
pedal				no	40	168	100	40

port, analog

port_tag	analog_masks
:mainpcb:ADC0	255
:mainpcb:ADC1	255
:mainpcb:ADC2	255
:mainpcb:IO0PORTA
:mainpcb:IO0PORTB
:mainpcb:IO1PORTA
:mainpcb:IO1PORTB
:mainpcb:IO1PORTC
:mainpcb:IO1PORTD

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	mainpcb:IO1PORTC	15

location

name	number	inverted
SWA	1	no
SWA	2	no
SWA	3	no
SWA	4	no

value

name	value	default
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	mainpcb:IO1PORTC	240

location

name	number	inverted
SWA	5	no
SWA	6	no
SWA	7	no
SWA	8	no

value

name	value	default
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Machine ID

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Machine ID	mainpcb:IO1PORTD	7

location

name	number	inverted
SWB	1	no
SWB	2	no
SWB	3	no

value

name	value	default
1	7	yes
2	6	no
3	5	no
4	4	no
5	3	no
6	2	no
7	1	no
8	0	no

Number of Machines

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Number of Machines	mainpcb:IO1PORTD	56

location

name	number	inverted
SWB	4	no
SWB	5	no
SWB	6	no

value

name	value	default
1	56	yes
2	48	no
3	40	no
4	32	no
5	24	no
6	16	no
7	8	no
8	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	mainpcb:IO1PORTD	192

location

name	number	inverted
SWB	7	no
SWB	8	no

value

name	value	default
Deluxe	192	no
Cockpit	128	no
Upright	64	yes
