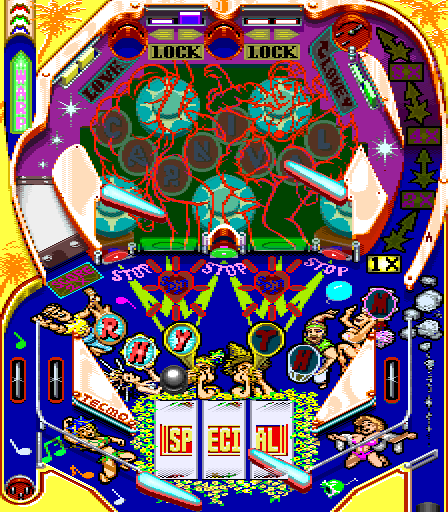

Super Pinball Action (Japan) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
spbactnj	tecmo/spbactn.cpp		no	no	no	yes	Super Pinball Action (Japan)	1991	Tecmo	spbactn	spbactn

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	90	512	224	60.050891	11328000	720	0	512	262	16	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
a-u68.1	131072	b5b2d824	be04ca370a381d7396f39e31fb2680973193daee	maincpu	0	good	no
a-u67.2	131072	9577b48b	291d890a9d0e434455f183eb12ae6edf3156688d	maincpu	1	good	no
a-u14.3	65536	57f4c503	e5ddc63a43ba824bcaa4340eeba25a0d3f26cad9	audiocpu	0	good	no	a-u14.3
a-u19	131072	87427d7d	f76b0dc3f0d87deb0f0c81084aff9756b236e867	oki	0	good	no	a-u19
b-u98	262144	315eab4d	6f812c85981dc649caca8b4635e3b8fd3a3c054d	fgtiles	0	good	no	b-u98
b-u99	262144	7b76efd9	9f23460aebe12cb5c4193776bf876d6044892979	fgtiles	1	good	no	b-u99
b-u104	262144	b648a40a	1fb756dcd027a5702596e33bbe8a0beeb3ceb22b	bgtiles	0	good	no	b-u104
b-u105	262144	0172d79a	7ee1faa65c85860bd81988329df516bc34940ef5	bgtiles	40000	good	no	b-u105
b-u110	262144	862ebacd	05732e8524c50256c1db29317625d0edc19b87d2	sprites	0	good	no	b-u110
b-u111	262144	1cc1379a	44fdab8cb5ab1488688f1ac52f005454e835efee	sprites	1	good	no	b-u111

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	12000000
cpu	audiocpu	Zilog Z80	4000000
audio	mono	Speaker
audio	ymsnd	YM3812 OPL2	4000000
audio	oki	OKI MSM6295 ADPCM	1000000

device_ref

name
m68000
z80
screen
gfxdecode
palette
tecmo_spr
tecmo_mix
speaker
generic_latch_8
ym3812
okim6295

sound

channels
1

feature

type	status	overall
graphics	imperfect

input

players	coins	service	tilt
1	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
only_buttons		4		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:IN0
:IN1
:SYSTEM

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	7

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	2	no
3 Coins/1 Credit	3	no
2 Coins/1 Credit	4	no
2 Coins/1 Credit 3/2	1	no
1 Coin/1 Credit	7	yes
1 Coin/1 Credit 2/3	5	no
1 Coin/2 Credits	6	no
1 Coin/1 Credit 5/6	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	56

location

name	number	inverted
SW1	4	no
SW1	5	no
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	16	no
3 Coins/1 Credit	24	no
2 Coins/1 Credit	32	no
2 Coins/1 Credit 3/2	8	no
1 Coin/1 Credit	56	yes
1 Coin/1 Credit 2/3	40	no
1 Coin/2 Credits	48	no
1 Coin/1 Credit 5/6	0	no

Balls

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Balls	DSW1	192

location

name	number	inverted
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2	0	no
3	192	yes
4	128	no
5	64	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	3

location

name	number	inverted
SW2	1	no
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	2	no
Normal	3	yes
Hard	1	no
Very Hard	0	no

Extra Ball

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Extra Ball	DSW2	12

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
100k and 500k	4	no
200k and 800k	12	yes
200k	8	no
None	0	no

Hit Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hit Difficulty	DSW2	16

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	16	yes
Difficult	0	no

Display Instructions

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Display Instructions	DSW2	32

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	32	yes

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	64	yes

Match

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Match	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1/20	128	yes
1/40	0	no
