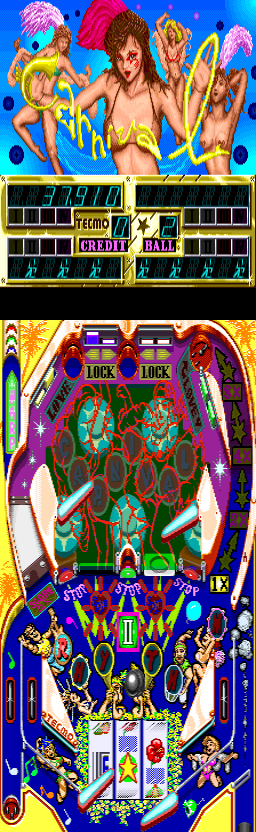

Super Pinball Action (US, prototype, dual screen) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
spbactnp	tecmo/spbactn.cpp		no	no	no	yes	Super Pinball Action (US, prototype, dual screen)	1989	Tecmo	spbactn	spbactn

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	90	512	224	60.000000								no
extrascreen	raster	0	256	224	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
spa.18k	65536	40f6a1e6	533e1eb96f54b976f50d5b8927160b46b2740c83	maincpu	0	good	no
spa.22k	65536	ce31871e	8670c051d775fee6dcd2aa82cdb6f3fcc4338bd5	maincpu	1	good	no
spa.17k	65536	c9860ae9	3c2479be75ee84165470e9ca0a9d3b2ce679703d	maincpu	20000	good	no
spa.21k	65536	8226f644	2d3e32368fbfec7437bd972096fd92972f52f6b0	maincpu	20001	good	no
spa.17g	65536	445fc2c5	c0e40496cfcaa0a8c90fb05111fadee74582f91a	audiocpu	0	good	no
spa_data_2-21-a10.8e	131072	87427d7d	f76b0dc3f0d87deb0f0c81084aff9756b236e867	oki	0	good	no	a-u19
spa_back0_split0_5-17-p-1.27b	131072	37922110	8edb6745ab6b6937f1365d35bfcdbe86198de668	fgtiles	0	good	no
spa_back0_split1_5-17-p-1.27c	131072	9d6ef9ab	338ff1bd9d30a61d782616cccb4108daac6a8612	fgtiles	1	good	no
spa_back1_split0_3-14-a-11.26b	131072	6953fd62	fb6061f5ad48e0d91d3dad96afbac2d64908f0a7	bgtiles	0	good	no
spa_back1_split1_3-14-a-11.26c	131072	b4123511	c65b912238bab74bf46b5d5486c1d998813ef511	bgtiles	1	good	no
spa_sp0_4-18-p-8.5m	131072	cd6ba360	a01f65a678b6987ae877c381f74515efee4b492e	sprites	0	good	no
spa_sp1_3-14-a-10.4m	131072	86406336	bf091dc13404535e6baee990f5e957d3538841ac	sprites	20000	good	no
6204_6-6.29c	65536	e8250c26	9b669878790c8e3c5d80f165b5ffa1d6830f4696	extracpu	0	good	no
spa.25c	131072	02b69ab9	368e774693a6fab756faaeec4ffd42406816e6e2	extragfx	0	good	no
p109.18d	256	2297a725	211ebae11ca55cc67df29291c3e0916836550bfb	misc	0	good	no
pin.b.sub.23g	256	3a0c70ed	9be38c421e9a14f6811752a4464dd5dbf037e385	misc	0	good	no
tcm1.19g.bin	83	2c54354a	11d8b6cdaf052b5a9fbcf6b6fbf99c5f89575cfa	misc	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	12000000
cpu	audiocpu	Zilog Z80	4000000
cpu	extracpu	Zilog Z80	4000000
audio	mono	Speaker
audio	ymsnd	YM3812 OPL2	4000000
audio	oki	OKI MSM6295 ADPCM	1000000

device_ref

name
m68000
z80
z80
generic_latch_16
screen
gfxdecode
palette
screen
gfxdecode
palette
tecmo_spr
tecmo_mix
speaker
generic_latch_8
ym3812
okim6295

sound

channels
1

feature

type	status	overall
graphics	imperfect

input

players	coins	service	tilt
1	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
only_buttons		3		no

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1

dipswitch

Balls

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Balls	DSW	3

location

name	number	inverted
SW1	8	no
SW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2	0	no
3	3	yes
4	1	no
5	2	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW	28

location

name	number	inverted
SW1	6	no
SW1	5	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	8	no
3 Coins/1 Credit	24	no
2 Coins/1 Credit	4	no
2 Coins/1 Credit 3/2	16	no
1 Coin/1 Credit	28	yes
1 Coin/1 Credit 2/3	20	no
1 Coin/2 Credits	12	no
1 Coin/1 Credit 5/6	0	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW	224

location

name	number	inverted
SW1	3	no
SW1	2	no
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	64	no
3 Coins/1 Credit	192	no
2 Coins/1 Credit	32	no
2 Coins/1 Credit 3/2	128	no
1 Coin/1 Credit	224	yes
1 Coin/1 Credit 2/3	160	no
1 Coin/2 Credits	96	no
1 Coin/1 Credit 5/6	0	no

Match

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Match	DSW	256

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1/20	256	yes
1/40	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	512

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	512	yes

Display Instructions

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Display Instructions	DSW	1024

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	1024	yes

Hit Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hit Difficulty	DSW	2048

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	2048	yes
Difficult	0	no

Extra Ball

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Extra Ball	DSW	12288

location

name	number	inverted
SW2	4	no
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
100k and 500k	8192	no
200k and 800k	12288	yes
200k	4096	no
None	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	49152

location

name	number	inverted
SW2	2	no
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	32768	no
Normal	49152	yes
Hard	16384	no
Very Hard	0	no
