SQ-2 - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sq2	ensoniq/esq5505.cpp		no	no	no	yes	SQ-2	1991	Ensoniq

snap

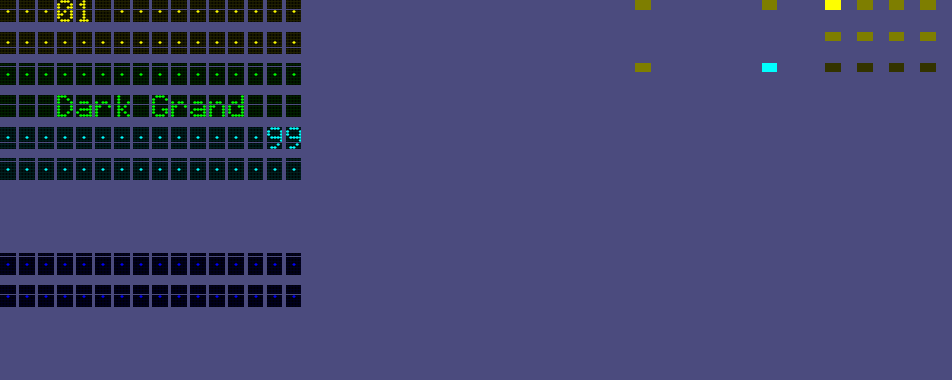

SQ-2 png snap

SQ-2 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
sq2	5467	29/12/2025 11:31:45	952	380	96	96	0	Format24bppRgb	305:MAME 0.181 (Jan 2 2017)	ecf1ef9f991a3d6e26fe7aace141ad267d2a9d17

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
sq232_2.03_9193_lower.u27	65536	e37fbc2c	4a74f3540756745073c8768b384905db03da47c0	osrom	1	good	no
sq232_2.03_cbcd_upper.u32	131072	5a7dc228	d25adecc0dbba93a094c49fae105dcc7aad317f1	osrom	0	good	no
sq1-u25.bin	524288	26312451	9f947a11592fd8420fc581914bf16e7ade75390c	waverom	1	good	no
sq1-u26.bin	524288	2edaa9dc	72fead505c4f44e5736ff7d545d72dfa37d613e2	waverom	100001	good	no
rom2.u39	1048576	8d1b5e91	12991083a6c574133a1a799813fa4573a33d2297	waverom2	0	good	no
rom3.u38	1048576	cb9875ce	82021bdc34953e9be97d45746a813d7882250ae0	waverom2	100000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	15238090
cpu	esp	Ensoniq ES5510	10000000
audio	speaker	Speaker
audio	pump	Ensoniq 5505/5506 to 5510 interface	29761
audio	aux	Speaker
audio	otis	Ensoniq ES5505	15238090
audio	wd1772:0:35dd:flopsndout	Speaker
audio	wd1772:0:35dd:floppysound	Floppy sound	44100

device_ref

tag	name
:maincpu	m68000
:esp	es5510
:panel	esqpanel216_sq1
:panel:vfd	esq2x16_sq1
:duart	mc68681
:duart:cha	duart_channel
:duart:chb	duart_channel
:mdin	midi_port
:mdin:midiin	midiin_port
:mdin:midiin:midiinimg	midiin
:mdout	midi_port
:mdout:midiout	midiout_port
:mdout:midiout:midioutimg	midiout
:speaker	speaker
:pump	esq_5505_5510_pump
:aux	speaker
:otis	es5505
:wd1772	wd1772
:wd1772:0	floppy_connector
:wd1772:0:35dd	floppy_35_dd
:wd1772:0:35dd:flopsndout	speaker
:wd1772:0:35dd:floppysound	flopsnd

sound

channels
3

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
midiin	mdin:midiin:midiinimg				midiin	min
midiout	mdout:midiout:midioutimg				midiout	mout
floppydisk	wd1772:0:35dd	floppy_3_5			floppydisk	flop

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
midiin	mdin:midiin:midiinimg				mid, syx
midiout	mdout:midiout:midioutimg				mid
floppydisk	wd1772:0:35dd	floppy_3_5			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, img, hfe

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		38		no

port, analog

port_tag	analog_masks
:KEY0
:KEY1
:KEY2
:KEY3
:mdin:midiin:midiinimg:CFG

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
mdin	midiin	midiin_port	yes
mdout	midiout	midiout_port	yes
wd1772:0	35dd	floppy_35_dd	yes

configuration

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin:midiin:midiinimg:CFG	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no

clones

name	description
ks32	KS-32
