Space Shuttle (L-7) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
sshtl_l7	pinball/s9.cpp	genpin	no	no	yes	yes	Space Shuttle (L-7)	1984	Williams

snap

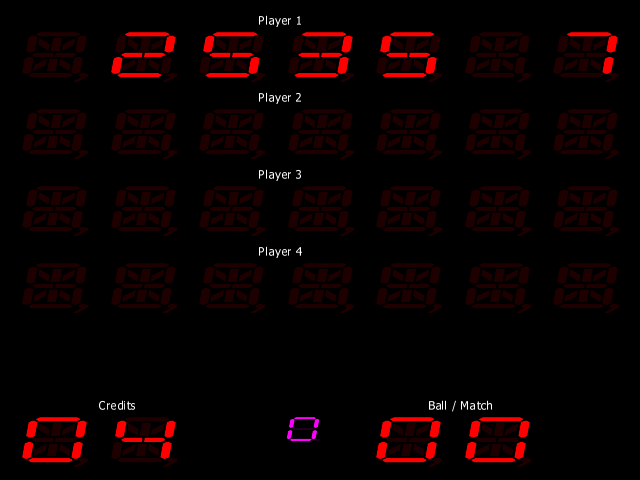

Space Shuttle (L-7) png snap

Space Shuttle (L-7) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
sshtl_l7	15936	22/03/2026 17:03:10	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	da2cc5d43fbf0e1620c766585de36e41b13af0af

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
cpu_u20.128	16384	848ad54c	4e4ce5fb970da37706472f94a27fd912e1ecb1a0	maincpu	0	good	no
spch_u5.732	4096	13edd4e5	46c4052c31ddc20bb87445636f8fe3b6f7bff856	s9sound:audiocpu	1000	good	no
spch_u6.732	4096	cf48b2e7	fe55419a5d40b3a4e8c02a92746b25a075b8efd3	s9sound:audiocpu	2000	good	no
spch_u4.732	4096	b0d03c5e	46b952f71a7ecc03e22e427875f6e16a9d124067	s9sound:audiocpu	3000	good	no
cpu_u49.128	16384	8050ae27	e3f5e9398f61b075620ecd075617a8dac3c07d0e	s9sound:audiocpu	4000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6808	4000000
cpu	s9sound:cpu	Motorola MC6802	4000000
audio	mechvol	Speaker
audio	samples	Samples
audio	mono	Speaker
audio	s9sound	Williams System 9 Sound Board
audio	s9sound:dac	MC1408 DAC
audio	s9sound:hc	HC-55516

device_ref

tag	name
:maincpu	m6808
:mechvol	speaker
:samples	samples
:pia21	pia6821
:pia24	pia6821
:pia28	pia6821
:pia30	pia6821
:nvram	nvram
:mono	speaker
:s9sound	wmss9
:s9sound:cpu	m6802
:s9sound:dac	mc1408
:s9sound:hc	hc55516
:s9sound:pia	pia6821

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

input

players	coins	service	tilt
2	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad	1	44		no
keypad	2	1		no

port, analog

port_tag	analog_masks
:DIAGS
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7
:s9sound:S9

clones

name	description
sshtl_l3	Space Shuttle (L-3)
