Star Castle (version 3) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
starcas	cinematronics/cinemat.cpp		no	no	no	yes	Star Castle (version 3)	1980	Cinematronics

snap

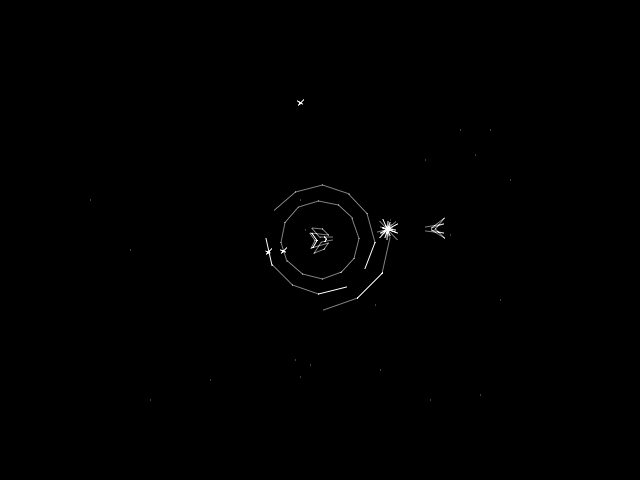

Star Castle (version 3) png snap

Star Castle (version 3) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
starcas	6617	29/12/2025 11:31:46	640	480	96	96	0	Format24bppRgb	305:MAME 0.126u1 (Jul 17 2008)	c61dbf0db0ae9947da0f1f2384e709e4f17df27c

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	vector	180			38.000107								yes

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
starcas3.t7	2048	b5838b5d	6ac30be55514cba55180c85af69072b5056d1d4c	maincpu	0	good	no
starcas3.p7	2048	f6bc2f4d	ef6f01556b154cfb3e37b2a99d6ea6292e5ec844	maincpu	1	good	no
starcas3.u7	2048	188cd97c	c021e93a01e9c65013073de551a8c24fd1a68bde	maincpu	1000	good	no
starcas3.r7	2048	c367b69d	98354d34ceb03e080b1846611d533be7bdff01cc	maincpu	1001	good	no
prom.f14	256	9edbf536	036ad8a231284e05f44b1106d38fc0c7e041b6e8	proms	0	good	no
prom.e14	32	29dbfb87	d8c40ab010b2ea30f29b2c443819e2b69f376c04	proms	100	good	no
prom.d14	32	9a05afbf	5d806a42424942ba5ef0b70a1d629315b37f931b	proms	120	good	no
prom.c14	32	07492cda	32df9148797c23f70db47b840139c40e046dd710	proms	140	good	no
prom.j14	32	a481ca71	ce145d61686f600cc16b77febfd5c783bf8c13b0	proms	160	good	no
prom.e8	32	791ec9e1	6f7fcce4aa3be9020595235568381588adaab88e	proms	180	good	no

chip

type	tag	name	clock
cpu	maincpu	Cinematronics CPU	4980750
audio	mono	Speaker
audio	soundboard	Star Castle Sound Board
audio	soundboard:sound_nl	Netlist Sound Device

device_ref

tag	name
:maincpu	ccpu
:outlatch	ls259
:vector	vector_device
:screen	screen
:mono	speaker
:soundboard	starcas_audio
:soundboard:sound_nl	netlist_sound
:soundboard:sound_nl:out_0	nl_logic_in
:soundboard:sound_nl:out_1	nl_logic_in
:soundboard:sound_nl:out_2	nl_logic_in
:soundboard:sound_nl:out_3	nl_logic_in
:soundboard:sound_nl:out_4	nl_logic_in
:soundboard:sound_nl:out_7	nl_logic_in
:soundboard:sound_nl:cout0	nl_stream_out

sound

channels
1

input

players	coins	service	tilt
1	1	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy		2	2	no

port, analog

port_tag	analog_masks
:INPUTS
:SWITCHES

dipswitch

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	SWITCHES	3

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3	3	yes
4	1	no
5	2	no
6	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	SWITCHES	12

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 Coins/1 Credit	4	no
4 Coins/3 Credits	0	no
1 Coin/1 Credit	12	yes
3 Coins/4 Credits	8	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	SWITCHES	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	SWITCHES	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	SWITCHES	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

clones

name	description
spaceftr	Space Fortress (Zaccaria)
starcasc	Star Castle (cocktail)
starcase	Star Castle (Mottoeis)
starcas1	Star Castle (older)
starcasp	Star Castle (prototype)
stellcas	Stellar Castle (Elettronolo)
