Star Wars (set 1) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
starwars	atari/starwars.cpp		no	no	no	yes	Star Wars (set 1)	1983	Atari

snap

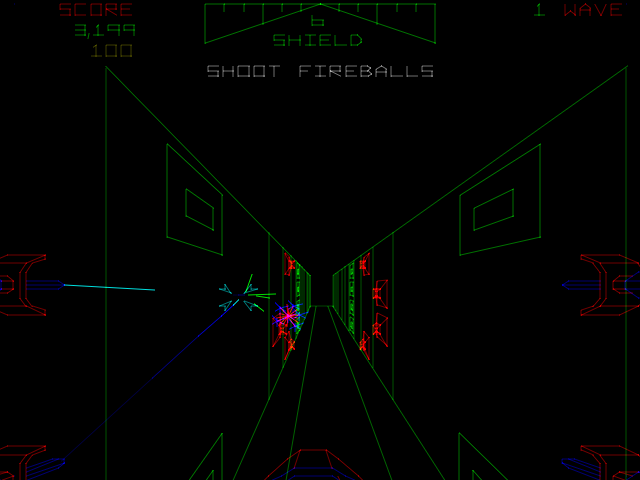

Star Wars (set 1) png snap

Star Wars (set 1) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
starwars	24475	29/12/2025 11:31:46	640	480	96	96	0	Format24bppRgb	305:MAME 0.130u4 (Apr 16 2009)	8c6bc00935e0d581bdcf5c873de9aa5c7ff4b725

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	vector	0			41.015625								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
136021.214.1f	16384	04f1876e	c1d3637cb31ece0890c25f6122d6bcd27e6ffe0c	maincpu	6000	good	no
136021.102.1hj	8192	f725e344	f8943b67f2ea032ab9538084756ba86f892be5ca	maincpu	8000	good	no
136021.203.1jk	8192	f6da0a00	dd53b643be856787bbc4da63e5eb132f98f623c3	maincpu	a000	good	no
136021.104.1kl	8192	7e406703	981b505d6e06d7149f8bcb3e81e4d0c790f2fc86	maincpu	c000	good	no
136021.206.1m	8192	c7e51237	4960f4446271316e3f730eeb2531dbc702947395	maincpu	e000	good	no
136021-105.1l	4096	538e7d2f	032c933fd94a6b0b294beee29159a24494ae969b	vectorrom	0	good	no
136021-107.1jk	8192	dbf3aea2	c38661b2b846fe93487eef09ca3cda19c44f08a0	audiocpu	4000	good	no
136021-208.1h	8192	e38070a8	c858ae1702efdd48615453ab46e488848891d139	audiocpu	6000	good	no
136021-109.4b	256	82fc3eb2	184231c7baef598294860a7d2b8a23798c5c7da6	avg:prom	0	good	no
136021-110.7h	1024	810e040e	d247cbb0afb4538d5161f8ce9eab337cdb3f2da4	user2	0	good	no
136021-111.7j	1024	ae69881c	f3420c6e15602956fd94982a5d8d4ddd015ed977	user2	400	good	no
136021-112.7k	1024	ecf22628	4dcf5153221feca329b8e8d199bd4fc00b151d9c	user2	800	good	no
136021-113.7l	1024	83febfde	e13541b09d1724204fdb171528e9a1c83c799c1c	user2	c00	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809E	1512000
cpu	audiocpu	Motorola MC6809E	1512000
cpu	pokey1	Atari C012294 POKEY	1512000
cpu	pokey2	Atari C012294 POKEY	1512000
cpu	pokey3	Atari C012294 POKEY	1512000
cpu	pokey4	Atari C012294 POKEY	1512000
audio	mono	Speaker
audio	pokey1	Atari C012294 POKEY	1512000
audio	pokey2	Atari C012294 POKEY	1512000
audio	pokey3	Atari C012294 POKEY	1512000
audio	pokey4	Atari C012294 POKEY	1512000
audio	tms	TMS5220	672000

device_ref

tag	name
:maincpu	mc6809e
:watchdog	watchdog
:audiocpu	mc6809e
:adc	adc0809
:riot	mos6532
:x2212	x2212
:outlatch	ls259
:vector	vector_device
:screen	screen
:avg	avg_starwars
:mono	speaker
:pokey1	pokey
:pokey2	pokey
:pokey3	pokey
:pokey4	pokey
:tms	tms5220
:soundlatch	generic_latch_8
:mainlatch	generic_latch_8

sound

channels
1

input

players	coins	service	tilt
1	2	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
stick		4		no	0	255	70	30

port, analog

port_tag	analog_masks
:DSW0
:DSW1
:IN0
:IN1
:STICKX	255
:STICKY	255

dipswitch

Starting Shields

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Starting Shields	DSW0	3

location

name	number	inverted
10D	1	no
10D	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
6	0	yes
7	1	no
8	2	no
9	3	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW0	12

location

name	number	inverted
10D	3	no
10D	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	0	no
Moderate	4	no
Hard	8	yes
Hardest	12	no

Bonus Shields

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Shields	DSW0	48

location

name	number	inverted
10D	5	no
10D	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0	0	no
1	16	yes
2	32	no
3	48	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW0	64

location

name	number	inverted
10D	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	no
On	0	yes

Freeze

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Freeze	DSW0	128

location

name	number	inverted
10D	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW1	3

location

name	number	inverted
10EF	1	no
10EF	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 Coins/1 Credit	3	no
1 Coin/1 Credit	2	yes
1 Coin/2 Credits	1	no
Free Play	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	12

location

name	number	inverted
10EF	3	no
10EF	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
*1	0	yes
*4	4	no
*5	8	no
*6	12	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	16

location

name	number	inverted
10EF	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
*1	0	yes
*2	16	no

Bonus Coin Adder

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Coin Adder	DSW1	224

location

name	number	inverted
10EF	6	no
10EF	7	no
10EF	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 gives 1	32	no
4 gives 2	96	no
3 gives 1	160	no
4 gives 1	64	no
5 gives 1	128	no
None	0	yes

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	IN0	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

clones

name	description
starwars1	Star Wars (set 2)
starwarso	Star Wars (set 3)
