Striker Xtreme (CPU 1.02, display A1.03, ARM7 sound board) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
strknew	pinball/whitestar.cpp	genpin	no	no	yes	yes	Striker Xtreme (CPU 1.02, display A1.03, ARM7 sound board)	1999	Stern	strikext	strikext

snap

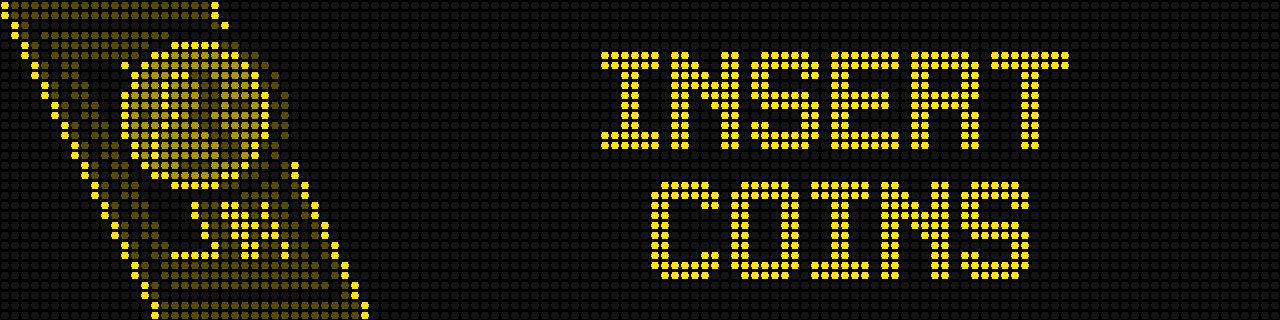

Striker Xtreme (CPU 1.02, display A1.03, ARM7 sound board) png snap

Striker Xtreme (CPU 1.02, display A1.03, ARM7 sound board) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
strknew	9485	29/12/2025 11:31:46	1280	320	96	96	0	Format24bppRgb	305:MAME 0.145u7 (Apr 22 2012)	9ae4a23890470fe0f7ff8d1b06dc77928ec063c5

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
decodmd:dmd	raster	0	128	32	60.000000	245760	128	0	128	32	0	32	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
sxcpua.102	131072	5e5f0fb8	1425d66064e59193ce7cacb496c12ae956670435	maincpu	0	good	no	sxcpua.102
sxdispa.103	524288	e4cf849f	27b61f1659762b396ca3af375e28f9c56500f79e	decodmd	0	good	no	sxdispa.103
bios.u8	2097152	c049bf99	89e76760e8010fe642ed4312732de81c8a25f548	soundcpu	400000	good	no
sxsnda.u7	65536	e7e1a0cb	be8b3e4d4232519db8344ae9e75f77d159bb1911	bsmt	0	good	no	sxsnda.u7
sxsnda.u17	1048576	aeeed88f	e150fd243feffcdc5d66487e840cefdfb50213da	sound2	0	good	no	sxsnda.u17
sxsnda.u21	1048576	62c9bfe3	14a65a673a33b7e3d3005f76acf3098dc37958f8	sound2	100000	good	no	sxsnda.u21
sxsnda.u36	1048576	a0bc0edb	1025a28fe9a0e3681e8e99b513da29ec294da045	sound2	200000	good	no	sxsnda.u36
sxsnda.u37	1048576	4c08c33c	36bfad0c59fd228db76a6ff36698edd929c11336	sound2	300000	good	no	sxsnda.u37
16v8d.u213	279	942d99fd	db33b16e582c6762ac6843a3613edb733cbeb499	plds	0	baddump	no	16v8d.u213

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809E	2000000
cpu	decodmd:dmdcpu	Motorola MC6809E	2000000
audio	mechvol	Speaker
audio	samples	Samples
audio	speaker	Speaker

device_ref

tag	name
:maincpu	mc6809e
:nvram	nvram
:mechvol	speaker
:samples	samples
:speaker	speaker
:decodmd	decodmd2
:decodmd:dmdcpu	mc6809e
:decodmd:firq_timer	timer
:decodmd:dmd6845	mc6845
:decodmd:dmd	screen

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		66		no

port, analog

port_tag	analog_masks
:DEDICATED
:DSW0
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7
