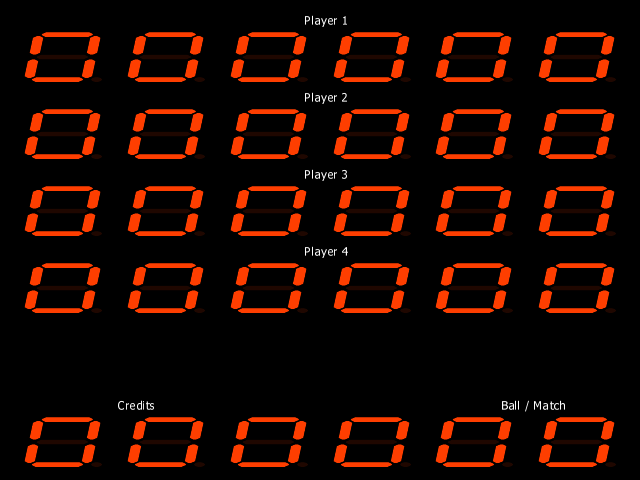

Superman (Pinball) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
supermap	pinball/atari_s2.cpp	genpin	no	no	yes	yes	Superman (Pinball)	1979	Atari

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
supmn_k.rom	2048	a28091c2	9f5e47db408da96a31cb2f3be0fa9fb1e79f8d85	maincpu	0	good	no
atari_m.rom	2048	1bb6b72c	dd24ed54de275aadf8dc0810a6af3ac97aea4026	maincpu	800	good	no
atari_j.rom	2048	26521779	2cf1c66441aee99b9d01859d495c12025b5ef094	maincpu	1000	good	no
20967-01.j3	512	da1f77b4	b21fdc1c6f196c320ec5404013d672c35f95890b	proms	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6800	1000000
audio	mechvol	Speaker
audio	samples	Samples
audio	speaker	Speaker
audio	dac	4-Bit Binary Weighted DAC
audio	dac1	3-Bit Binary Weighted DAC

device_ref

name
m6800
nvram
watchdog
speaker
samples
speaker
dac_4bit_bw
dac_3bit_bw
timer
timer

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

input

players	coins	service	tilt
1	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		36		no

port, analog

port_tag	analog_masks
:DSW0
:DSW1
:DSW2
:DSW3
:DSW4
:DSW5
:DSW6
:DSW7
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7

dipswitch

Max Credits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Max Credits	DSW0	7

value

name	value	default
5	0	no
10	1	no
15	2	no
20	3	no
25	4	no
30	5	yes
35	6	no
40	7	no

Balls

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Balls	DSW0	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5	8	no
3	0	yes

Free Play

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Free Play	DSW0	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Special

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Special	DSW0	80

value

name	value	default
Extra Ball	16	no
Free Game	0	yes
50000 points	64	no
60000 points	80	no

Match

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Match	DSW0	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	no
On	0	yes

Upper Lanes

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Upper Lanes	DSW1	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Start only	16	no
Start and Advance	0	yes

Extra Ball reward

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Extra Ball reward	DSW1	96

value

name	value	default
Extra Ball	0	yes
20000 points	32	no
30000 points	96	no

Coinage L Chute

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage L Chute	DSW2	31

value

name	value	default
1 Coin/1 Credit	2	yes
1 Coin/2 Credits	4	no
1 Coin/3 Credits	6	no
1 Coin/4 Credits	8	no
1 Coin/5 Credits	10	no
1 Coin/6 Credits	12	no
1 Coin/7 Credits	14	no
1 Coin/8 Credits	0	no
1 Coin/9 Credits	16	no
1 coin/10 credits	17	no
1 coin/11 credits	18	no
1 coin/12 credits	19	no
1 coin/13 credits	20	no
1 coin/14 credits	21	no
1 coin/15 credits	22	no
2 Coins/3 Credits	3	no
2 Coins/5 Credits	5	no
2 Coins/7 Credits	7	no
2 coins/9 credits	9	no
2 coins/11 credits	11	no
2 coins/13 credits	13	no
2 coins/15 credits	15	no
2 Coins/1 Credit	1	no

High Score Display

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
High Score Display	DSW2	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	no
On	0	yes

Coinage R Chute

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage R Chute	DSW3	31

value

name	value	default
1 Coin/1 Credit	2	yes
1 Coin/2 Credits	4	no
1 Coin/3 Credits	6	no
1 Coin/4 Credits	8	no
1 Coin/5 Credits	10	no
1 Coin/6 Credits	12	no
1 Coin/7 Credits	14	no
1 Coin/8 Credits	0	no
1 Coin/9 Credits	16	no
1 coin/10 credits	17	no
1 coin/11 credits	18	no
1 coin/12 credits	19	no
1 coin/13 credits	20	no
1 coin/14 credits	21	no
1 coin/15 credits	22	no
2 Coins/3 Credits	3	no
2 Coins/5 Credits	5	no
2 Coins/7 Credits	7	no
2 coins/9 credits	9	no
2 coins/11 credits	11	no
2 coins/13 credits	13	no
2 coins/15 credits	15	no
2 Coins/1 Credit	1	no

Ladder Memory

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Ladder Memory	DSW3	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	no
On	0	yes

Replays for High Score

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Replays for High Score	DSW3	192

value

name	value	default
1	192	no
2	0	yes
3	128	no
