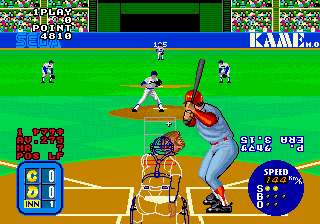

Super League (FD1094 317-0045) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
suprleag	sega/segas16b.cpp		no	no	no	yes	Super League (FD1094 317-0045)	1987	Sega

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.054389	6293700	400	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
epr-11133.a4	65536	eed72f37	80b68abdb90a63b30754dd031e85b1020dcc0cc4	maincpu	0	good	no
epr-11130.a1	65536	e2451676	d2f71d9fca933e63e2bd5ee48217801ab0cb049c	maincpu	1	good	no
epr-11134.a5	65536	ccd857f5	2566bb458bdd365db403e8229ecdad79e23076a1	maincpu	20000	good	no
epr-11131.a2	65536	9b78c2cc	9a453dd999120590c52b17f8ff2b49fd2fde0b35	maincpu	20001	good	no
epr-11135.a6	65536	3735e0e1	ae2910099909245993ee29e5a03a5591f20962c7	maincpu	40000	good	no
epr-11132.a3	65536	ff199325	2ece15b6b79ec3f948f7bec623e1df281cf89382	maincpu	40001	good	no
317-0045.key	8192	0594cc2e	8aec3fffd00cbfd50d7cfb92e4748e2653fbb504	maincpu:key	0	good	no
epr-11136.b9	65536	c3860ce4	af7618f3b5a0e8d6374877c7815ba69fff218a45	gfx1	0	good	no
epr-11137.b10	65536	92d96187	45138795992b9842d5b0c86a96b300445bf12060	gfx1	10000	good	no
epr-11138.b11	65536	c01dc773	b27da906186e1272cdd6f8d5e5a979f6623255ac	gfx1	20000	good	no
epr-11144.b1	65536	b31de51c	011a79a37d32ab4545187e28e61f27aa0601f686	sprites	1	good	no
epr-11148.b5	65536	126e1309	7386ac5ac57325d8f661caf8cab0b19a42c0309d	sprites	0	good	no
epr-11145.b2	65536	4223d2c3	310d5c411eeaf69fe0dc9350e6bfe6dfe950b373	sprites	20001	good	no
epr-11149.b6	65536	694d3765	4aa8590648d5b8eb5db489edefb1326ecd01ea2c	sprites	20000	good	no
epr-11146.b3	65536	bf0359b6	6cd5e6b685e53f062d5b04888f225c808aab3c4c	sprites	40001	good	no
epr-11150.b7	65536	9fc0aded	7ad9e8fe79a0a07c748b0c20ad46c0e00de8a23a	sprites	40000	good	no
epr-11147.b4	65536	3e592772	b0fe2c680871dcdbe655c0b1b98bcf8118fb3a50	sprites	60001	good	no
epr-11151.b8	65536	9de95169	1a2801ecd9dece3dae7ceab3b793d5005caa4614	sprites	60000	good	no
epr-11139.a7	32768	9cbd99da	55960b68b23a4f89ec810e1d31f22ba60cda0cfe	soundcpu	0	good	no
epr-11140.a8	32768	b297371b	4e787aa9ee2aeab4da30237644421df407b684a5	soundcpu	10000	good	no
epr-11141.a9	32768	19756aa6	81597e17b848f6a41f5fb117296e7508297815e4	soundcpu	20000	good	no
epr-11142.a10	32768	25d26c66	2485afb859f84a9cc90b2091e9ae4eef263f42b3	soundcpu	30000	good	no
epr-11143.a11	32768	848b7b77	8903a39f8f0ffb4ce32117d33282876196516c30	soundcpu	40000	good	no

chip

type	tag	name	clock
cpu	maincpu	Hitachi FD1094 Encrypted CPU	10000000
cpu	soundcpu	Zilog Z80	5000000
audio	mono	Speaker
audio	ym2151	YM2151 OPM	4000000
audio	upd	NEC uPD7759	640000
audio	netlist	Netlist Sound Device

device_ref

name
fd1094
z80
nvram
sega_315_5195
gfxdecode
palette
screen
sega_sys16b_sprite
segaic16_video
speaker
ym2151
upd7759
netlist_sound
nl_stream_in
nl_stream_in
nl_stream_in
nl_stream_out

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	reverse	maximum	sensitivity	keydelta
positional	1	3	no	6	5	10
trackball	1		yes	255	75	5
positional	2	3	no	6	5	10
trackball	2		no	255	75	5

port, analog

port_tag	analog_masks
:ANALOGX1	255
:ANALOGX2	255
:ANALOGY1	255
:ANALOGY2	255
:DSW1
:DSW2
:P1	7, 24, 224
:P2	7, 24, 224
:SERVICE
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	no
On	0	yes

Starting Points

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Starting Points	DSW2	14

location

name	number	inverted
SW2	2	no
SW2	3	no
SW2	4	no

value

name	value	default
2000	6	no
3000	10	no
4000	12	no
5000	14	yes
6000	8	no
7000	4	no
8000	2	no
9000	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	48

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default
Easy	32	no
Normal	48	yes
Hard	16	no
Hardest	0	no

Point Table

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Point Table	DSW2	192

location

name	number	inverted
SW2	7	no
SW2	8	no

value

name	value	default
Easy	128	no
Normal	192	yes
Hard	64	no
Hardest	0	no
