S.V.G. - Spectral vs Generation / Sheng Mo Shiji (M68k label V100JP) (ARM label V100JP, ROM 05/12/05 S.V.G V100) (Japan, JAMMA PCB) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
svgpcb	igs/pgm.cpp		no	no	no	yes	S.V.G. - Spectral vs Generation / Sheng Mo Shiji (M68k label V100JP) (ARM label V100JP, ROM 05/12/05 S.V.G V100) (Japan, JAMMA PCB)	2005	IGS / Idea Factory (AMI license)	svg	svg

snap

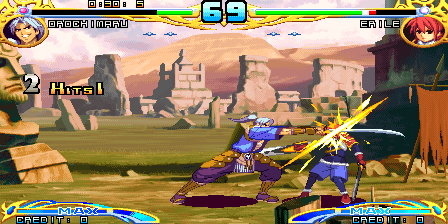

S.V.G. - Spectral vs Generation / Sheng Mo Shiji (M68k label V100JP) (ARM label V100JP, ROM 05/12/05 S.V.G V100) (Japan, JAMMA PCB) png snap

S.V.G. - Spectral vs Generation / Sheng Mo Shiji (M68k label V100JP) (ARM label V100JP, ROM 05/12/05 S.V.G V100) (Japan, JAMMA PCB) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
svgpcb	38165	29/12/2025 11:31:46	448	224	96	96	0	Format24bppRgb	305:MAME 0.153 (Apr 13 2014)	76e115a8ca0e27d82198fd77b391efbe5d9d7d2c

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	448	224	59.185606	10000000	640	0	448	264	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
svg_bios.u49	131072	3346401f	28bd730b6026c1e521c95072d33c7bdcd19c1460	maincpu	0	good	no
svg_v100jp_u50.u50	524288	8d0405e4	b6175c9ffeaac531d28e7845cb34c673476e286a	maincpu	100000	good	no
svgpcb_igs027a_execute_only_area	392			prot	0	nodump	no
svgcpb_igs027a_v100_japan.bin	15992	7a59da5d	d67ba465db40ca716b4b901b1c8e762716fb954e	prot	188	good	no
svg_v100jp_u64.u64	4194304	399d4a8b	b120e8386a259e6fd7941acf3c33cf288eda616c	user1	0	good	no
svg_v100jp_u65.u65	4194304	6e1c33b1	66f26b2f4c0b3dcf6d1bb1df48e2ddbcc9d9432d	user1	400000	good	no
pgm_t01s.rom	2097152	1a7123a0	cc567f577bfbf45427b54d6695b11b74f2578af3	igs023	0	good	no	pgm_t01s.rom
igs_t05601w016.u70	2097152	03e110dc	41c8f286e9303b24ba6235b341371c298226fb6a	igs023	180000	good	no	igs_t05601w016.u29
igs_a05601w064.u44	8388608	ea6453e4	b5c82edafa8008ad59b5f2219511947d078d446e	igs023:sprcol	0	good	no	igs_a05601w064.u3
igs_a05602w064.u45	8388608	6d00621b	55a4bc357e14b975b0234a9cd49e2224f509dad9	igs023:sprcol	800000	good	no	igs_a05602w064.u4
igs_a05603w064.u46	8388608	7b71c64f	bec7c7edf0634cf8351a54abb867c56af08ad2c3	igs023:sprcol	1000000	good	no	igs_a05603w064.u6
igs_a05604w032.u47	4194304	9452a567	01fdb8e1f131603843ef4c49ab76d7a56b2d6414	igs023:sprcol	1800000	good	no	igs_a05604w032.u8
igs_b05601w064.u61	8388608	35c0a489	a7d5527da01f8eaa7499fb6785b57094521bce97	igs023:sprmask	0	good	no	igs_b05601w064.u9
igs_b05602w064.u62	8388608	8aad3f85	da6996d901d42b3a2ba7019ad014bb938a5e328b	igs023:sprmask	800000	good	no	igs_b05602w064.u11
pgm_m01s.rom	2097152	45ae7159	d3ed3ff3464557fd0df6b069b2e431528b0ebfa8	ics	0	good	no	pgm_m01s.rom
igs_w05601b064.u30	8388608	bfe61a71	e682ca8d57ca51c4d72f64fc091161f3dbdce871	ics	400000	good	no	igs_w05601b064.u5
igs_w05602b032.u31	4194304	0685166d	64dac49abd2a46d5fb58c678027aa5e23d672dc4	ics	c00000	good	no	igs_w05602b032.u7

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	20000000
cpu	soundcpu	Zilog Z80	8467200
cpu	prot	ARM7 (little)	33000000
audio	mono	Speaker
audio	ics	ICS2115 WaveFront Synthesizer	33868800

device_ref

tag	name
:maincpu	m68000
:scantimer	timer
:soundcpu	z80
:sram	nvram
:rtc	v3021
:screen	screen
:palette	palette
:mono	speaker
:soundlatch1	generic_latch_8
:soundlatch2	generic_latch_8
:soundlatch3	generic_latch_8
:igs023	igs023
:ics	ics2115
:prot	arm7_le

sound

channels
1

feature

type	status	overall
sound	imperfect

input

players	coins	service	tilt
4	4	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy	1	4	8	no
joy	2	4	8	no
joy	3	4	8	no
joy	4	4	8	no

port, analog

port_tag	analog_masks
:DSW
:P1P2
:P3P4
:Region
:RegionHack
:Service

configuration

Region

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Region	RegionHack	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
China	0	no
Taiwan	1	no
Japan	2	no
Korea	3	no
Hong Kong	4	no
Spanish Territories	5	no
World	6	no
Don't Change	255	yes

dipswitch

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW	1

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Music

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Music	DSW	2

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	2	yes

Voice

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Voice	DSW	4

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	4	yes

Free

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Free	DSW	8

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Stop

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stop	DSW	16

location

name	number	inverted
SW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	32

location

name	number	inverted
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	64

location

name	number	inverted
SW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Debug

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Debug	DSW	128

location

name	number	inverted
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
